Sound modes and channel output

Circle-Large This indicates the audio output channels or surround parameters that can be set.

Double Ciecle This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”. link

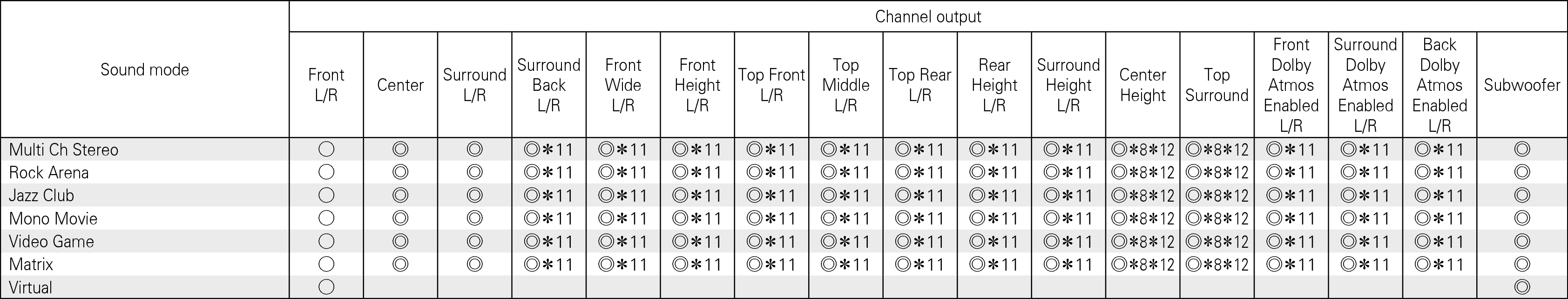

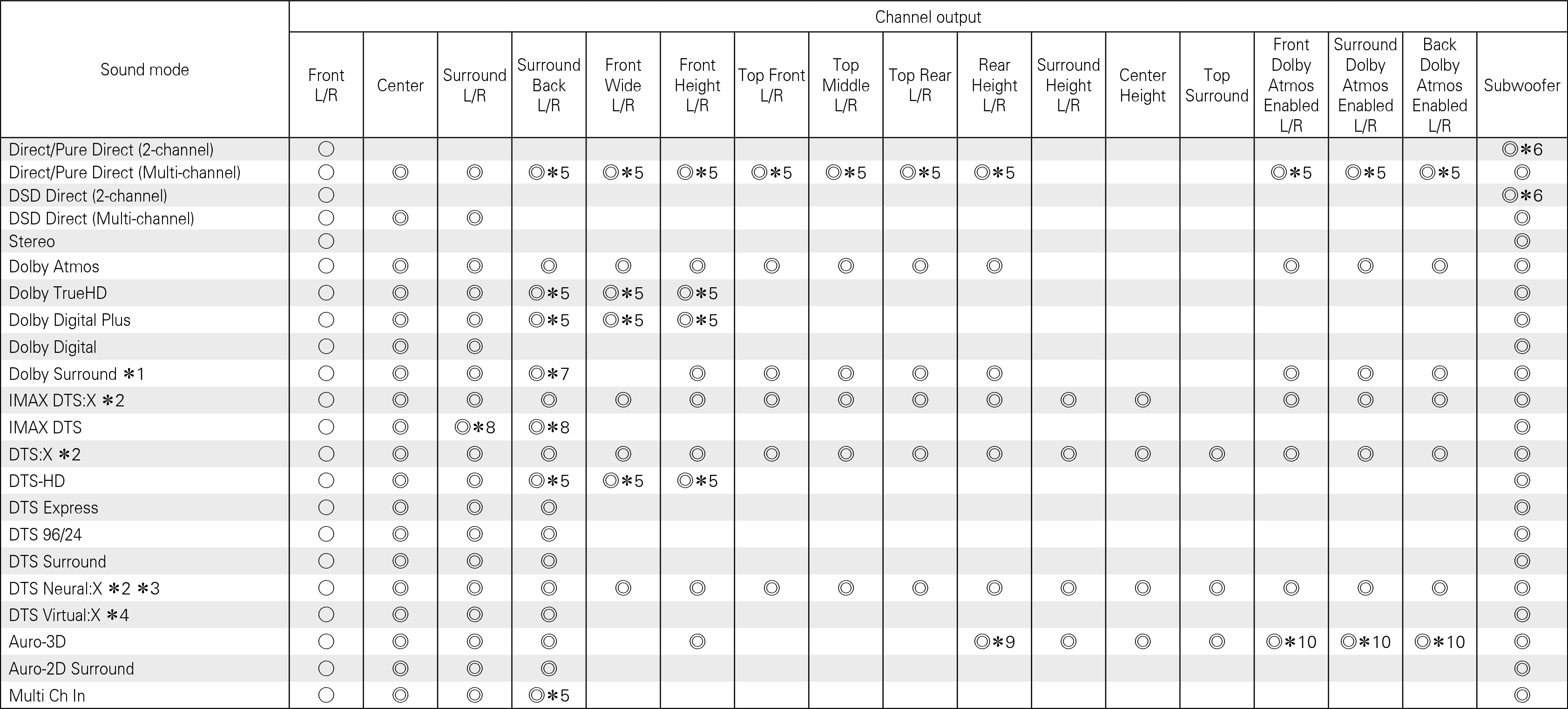

Smode & Cout1 X85
Smode & Cout2 X85

The applicable sound mode includes “Dolby Surround” and sound modes that have “+Dolby Surround” in the sound mode name.

Audio can be played through a maximum of 11-channels when 11 speakers or more (excluding the subwoofer) are installed.

The applicable sound mode includes “DTS Neural:X” and sound modes that have “+Neural:X” in the sound mode name.

The applicable sound mode includes “DTS Virtual:X” and sound modes that have “+Virtual:X” in the sound mode name.

A signal for each channel contained in an input signal is output as audio.

Audio is output when “Subwoofer Mode” in the menu is set to “LFE+Main”. link

Audio is not output when “Speaker Config.” - “Surr. Back” in the menu is set to “1 spkr”. link

When “Speaker Config.” - “Surr. Back” is set to “2 spkrs”, “Speaker Config.” - “Center” is set to “Large” or “Small”, and sound mode is set to “IMAX DTS”, surround audio is output from the surround back speaker. Audio is not output from the surround speaker. link

For the best Auro-3D experience Surround Height speakers are recommended, however you may substitute Rear Height speakers from a Dolby Atmos speaker setup in place of Surround Height speakers.

For the best Auro-3D experience Front Height and Surround Height speakers are recommended, however you may substitute Dolby Atmos Enabled speakers.

Audio is output from the speakers specified in the “Surround Parameter” – “Speaker Select” settings. link

Audio is not output when connecting to the HEIGHT4/FRONT WIDE speaker terminal to use the Center Height or Top Surround speaker.
