Rear panel

Name Rear Small1 X24E2

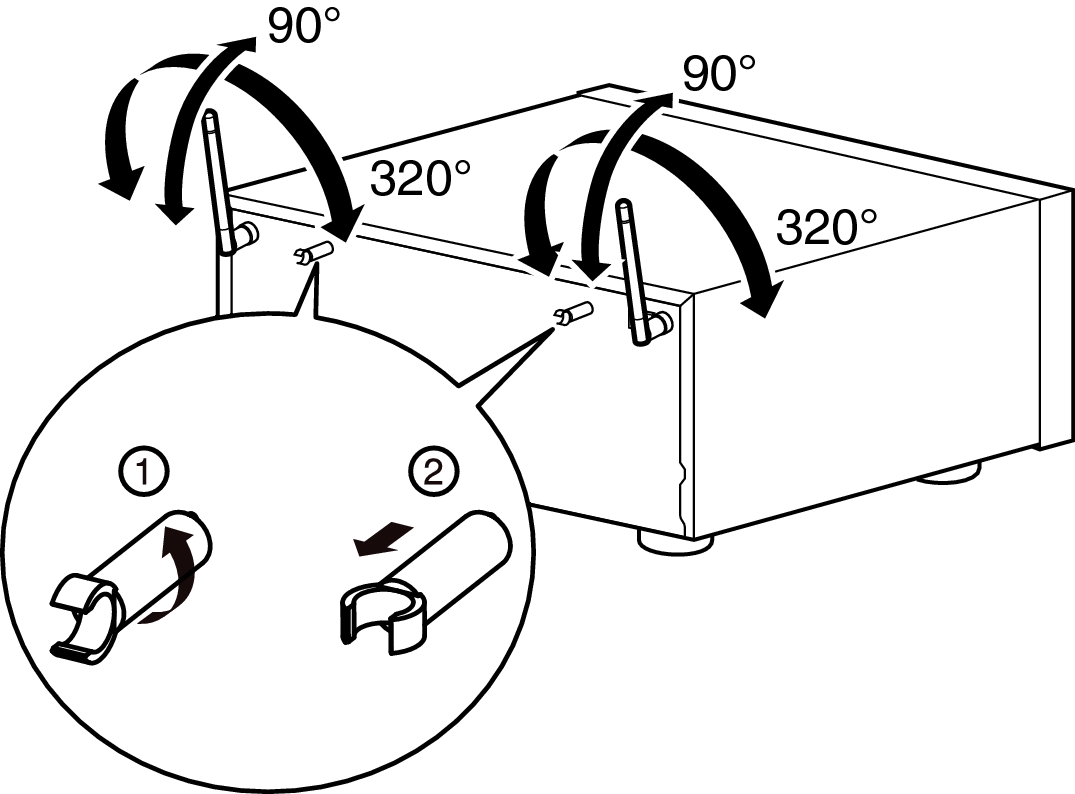

Rod antennas for Bluetooth/wireless LAN

Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

Pict AntennaAngle

The antenna clip can be removed from the rear panel.

Rotate the antenna clip 90 degrees to the left.
Pull the antenna clip out towards yourself.

The antenna clip is needed when transporting this unit. Keep it in a safe place.

Attach the antenna clip by following the steps for removing it in reverse.

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

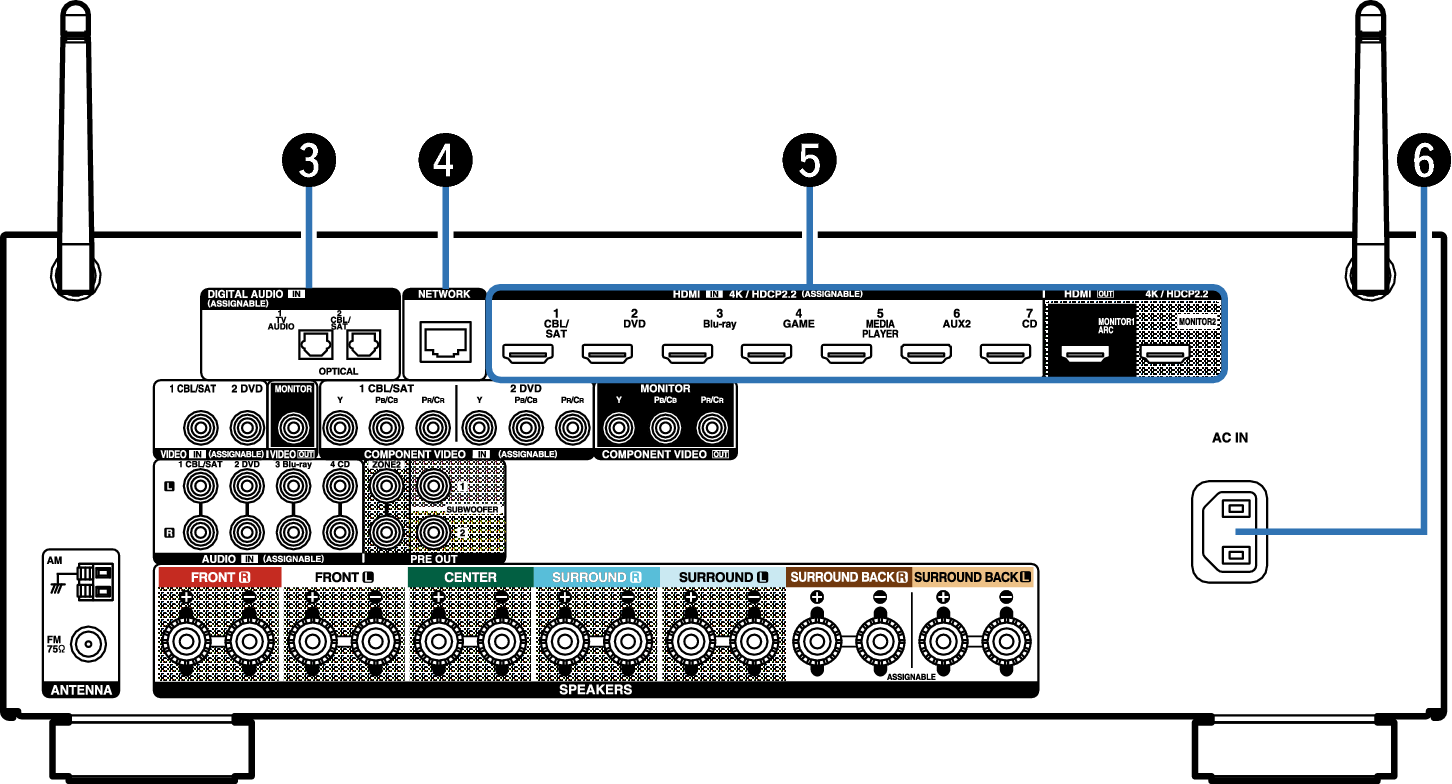

Name Rear Small2 X24E2

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

HDMI connectors

Used to connect devices equipped with HDMI connectors.

AC inlet (AC IN)

Used to connect the power cord. link

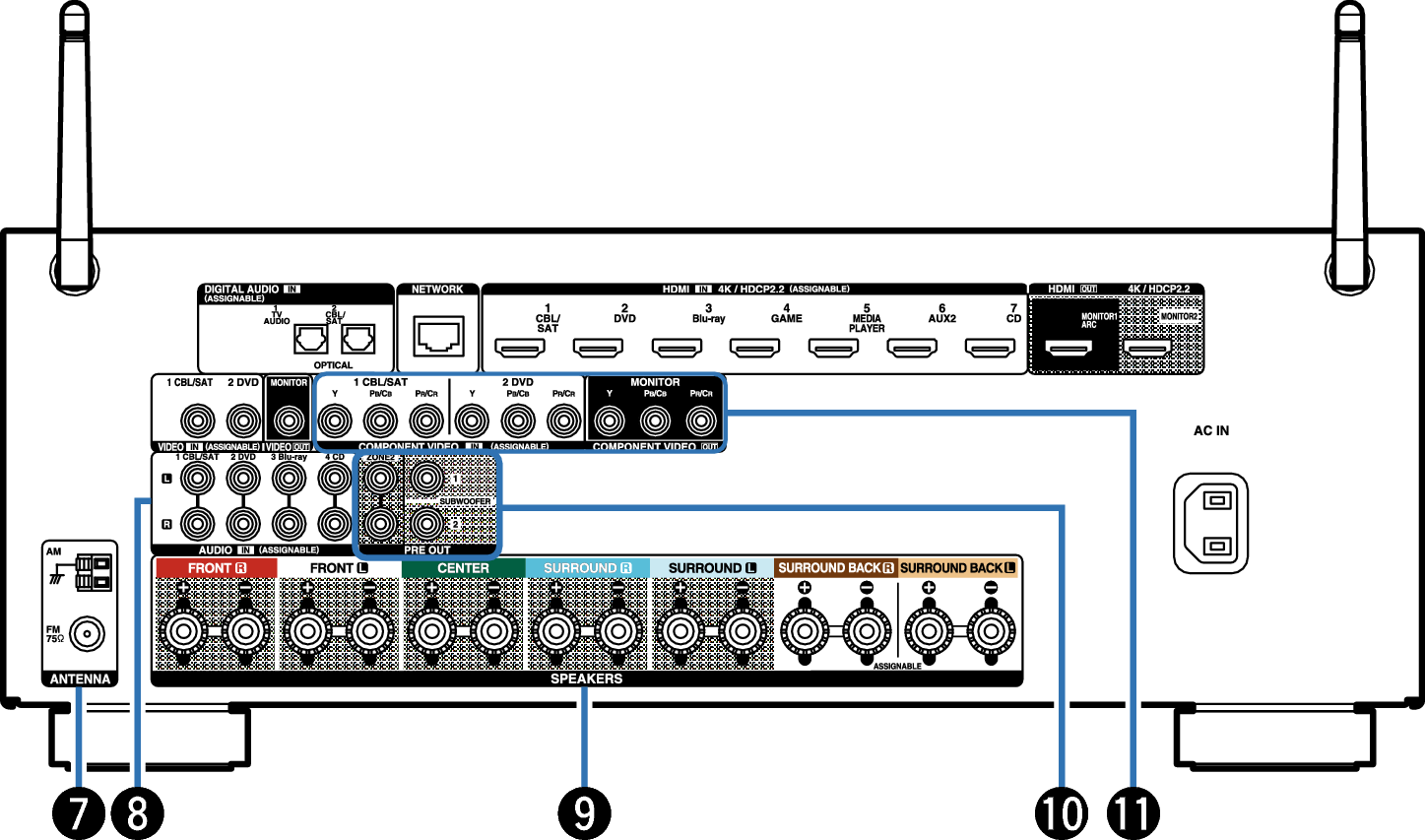

Name Rear Small3 X24E2

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

Speaker terminals (SPEAKERS)

Used to connect speakers. link

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or a power amplifier for ZONE2.

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
