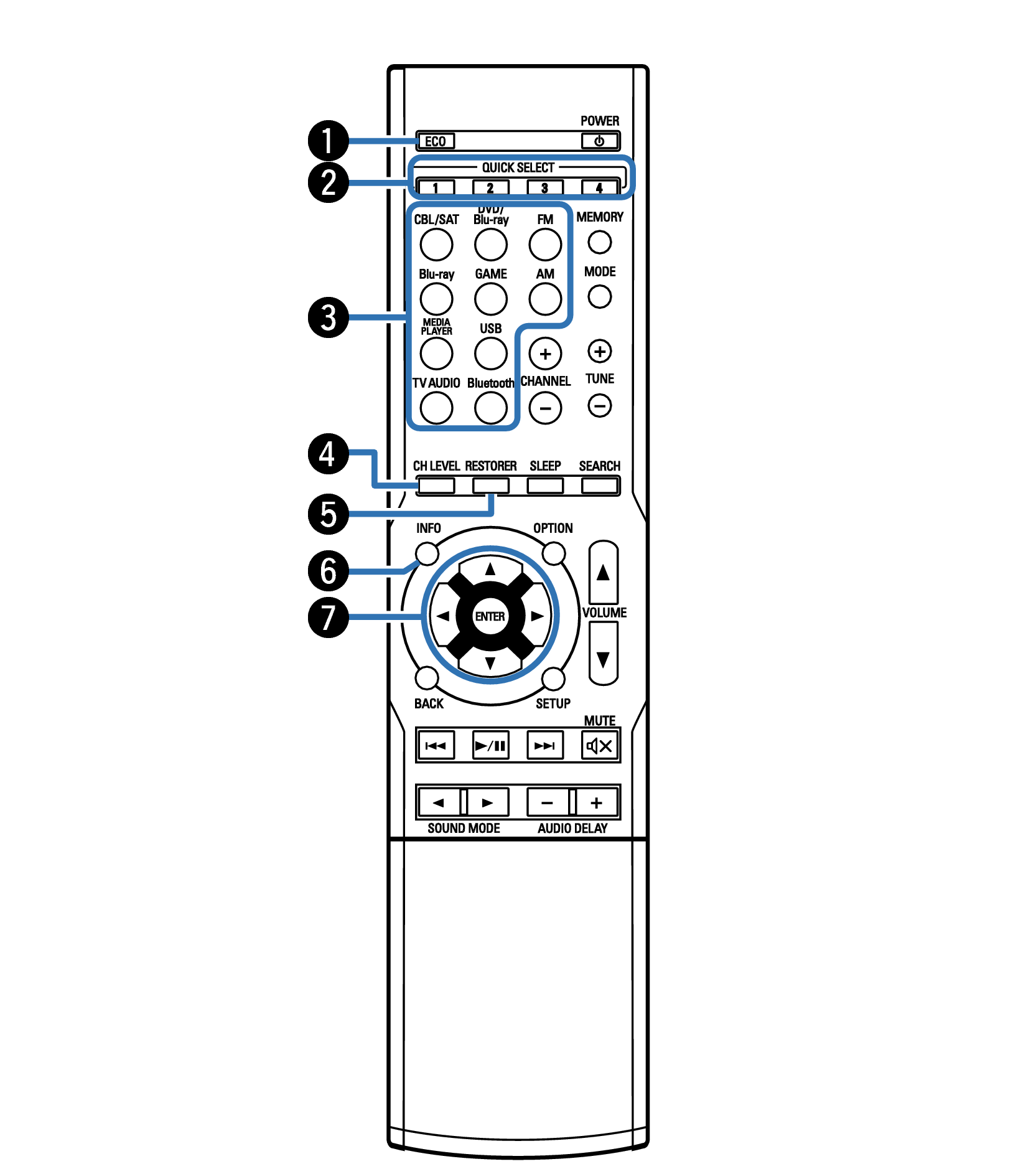

Remote control unit
ECO Mode button
This switches to ECO Mode. link
QUICK SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. link
Input source select buttons
These select the input source. link
Channel level button (CH LEVEL)
Adjusting the volume of the speakers. link
RESTORER button
Expands the low and high frequency components of compressed audio content such as MP3 files to enable richer audio playback. link
Information button (INFO)
This displays the status information on the TV screen. link

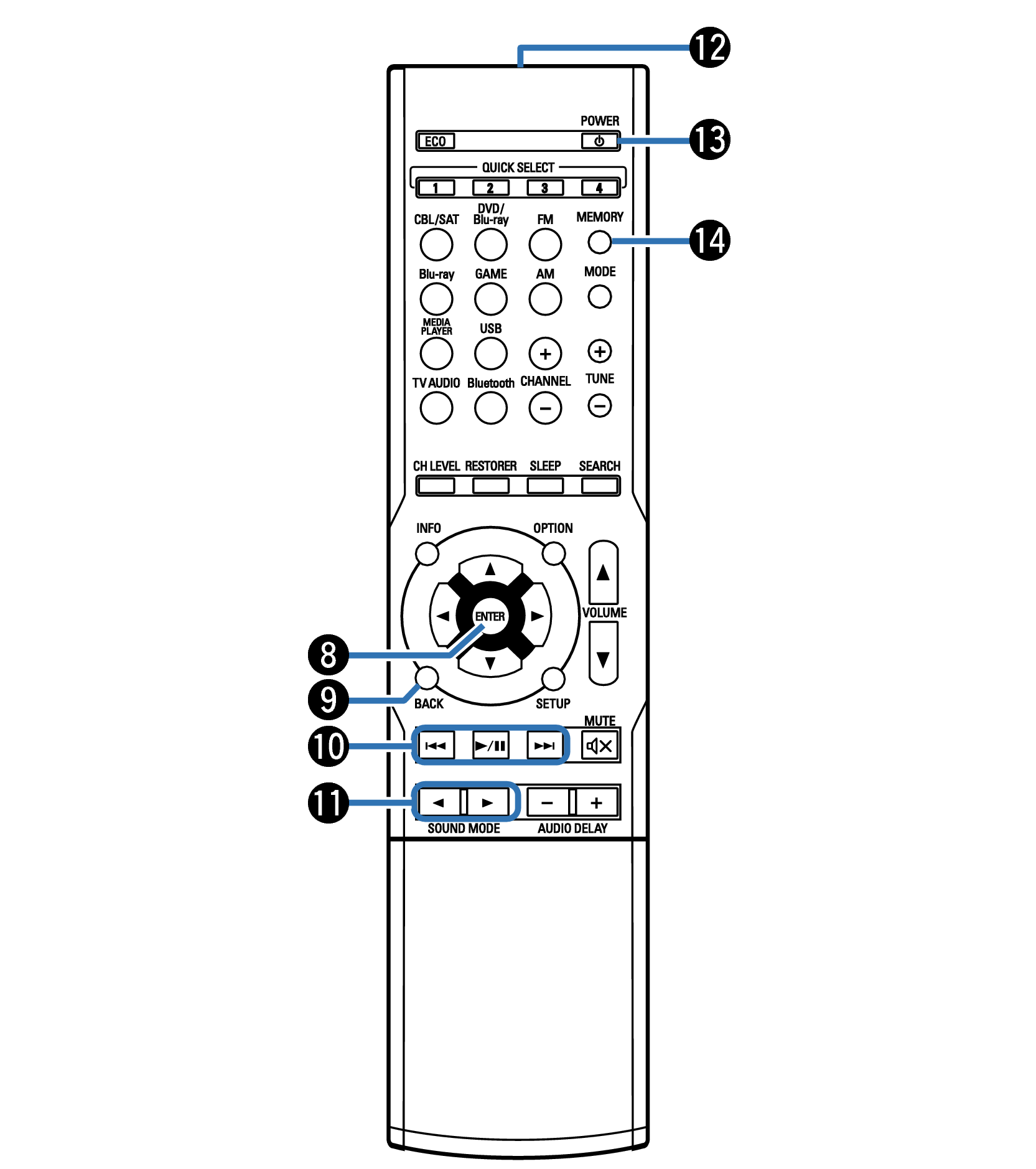

Cursor buttons (
)
These select items.
ENTER button
This determines the selection.
BACK button
This returns to the previous screen.
System buttons
These perform playback related operations.
SOUND MODE buttons (
)
These select the sound mode. link
Remote control signal transmitter
This transmits signals from the remote control unit. link
POWER button (
)
This turns the power on/off. link
Preset memory button (MEMORY)
The current broadcast station that is preset. link

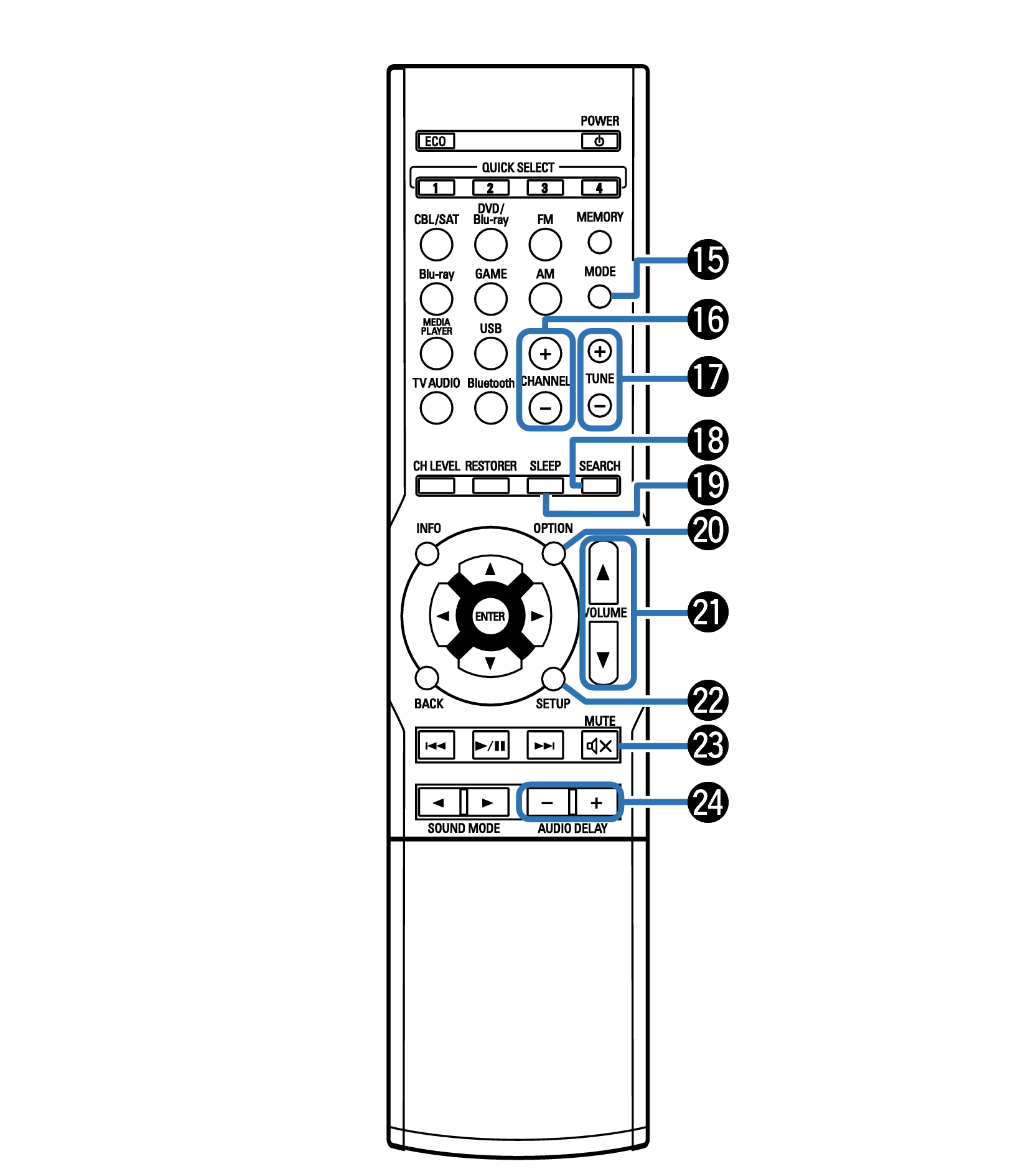

Tuning mode select button (MODE)
This switches the tune mode. link
Channel buttons (CHANNEL +, –)
These select preset radio stations. link
Tuning buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. link
SEARCH button
This used to RDS Search. link
SLEEP button
This sets the sleep timer. link
OPTION button
This displays the option menu on the TV screen.
VOLUME buttons (
)
These adjust the volume level. link
SETUP button
This displays the menu on the TV screen. link
MUTE button (
)
This mutes the output audio. link
AUDIO DELAY buttons (+, –)
Compensates for incorrect timing between video and audio. link
