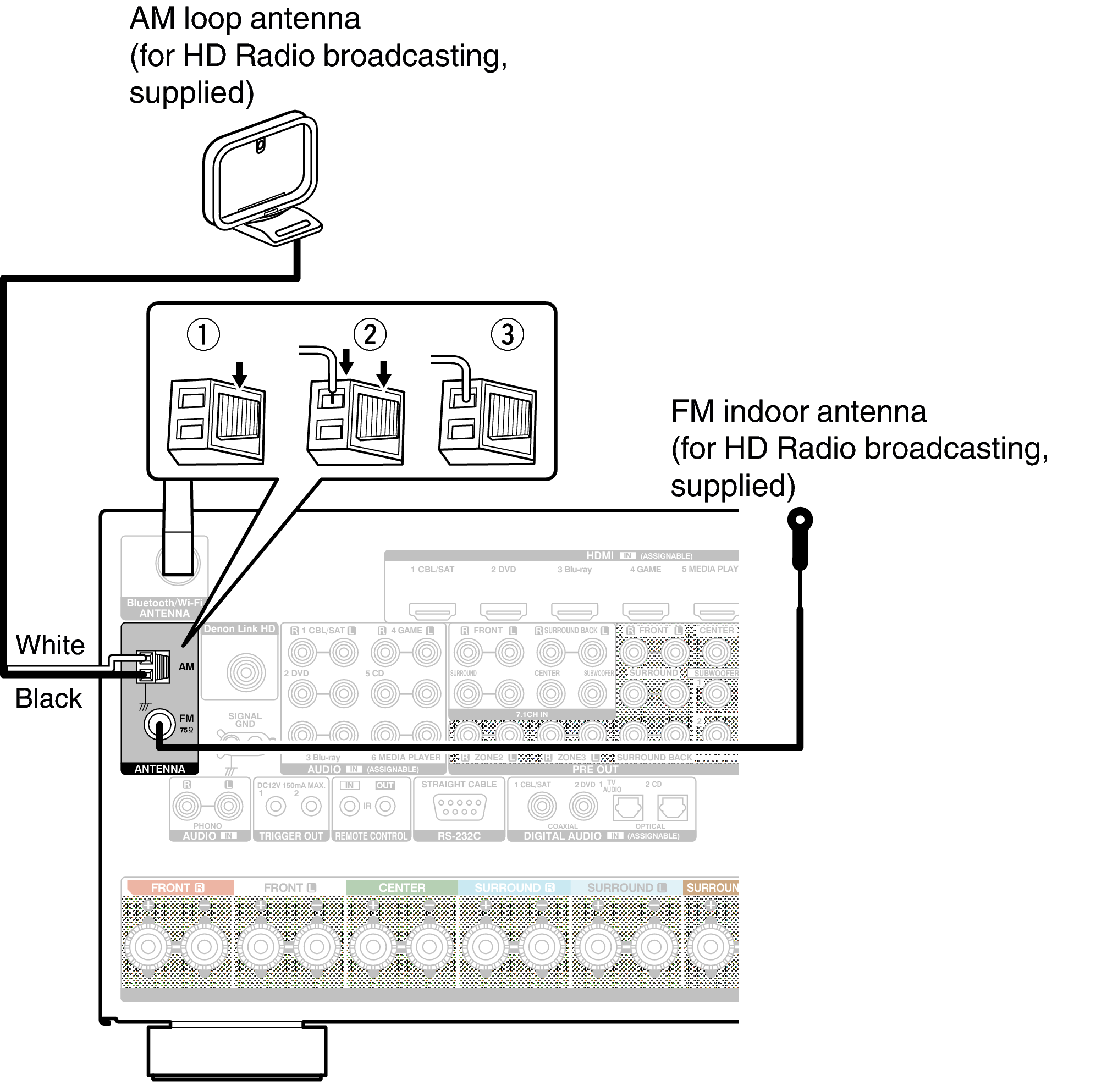

Connecting an HD Radio receiver
After connecting the antenna and receiving a broadcast signal, fix the antenna with tape in a position where the noise level becomes minimal. (Listening to an HD Radio™ stationslink)
If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For details, inquire at the retail store where you purchased the unit.
Do not connect two FM antennas simultaneously.
Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.

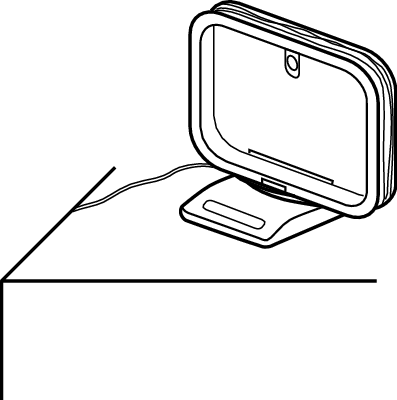

Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.

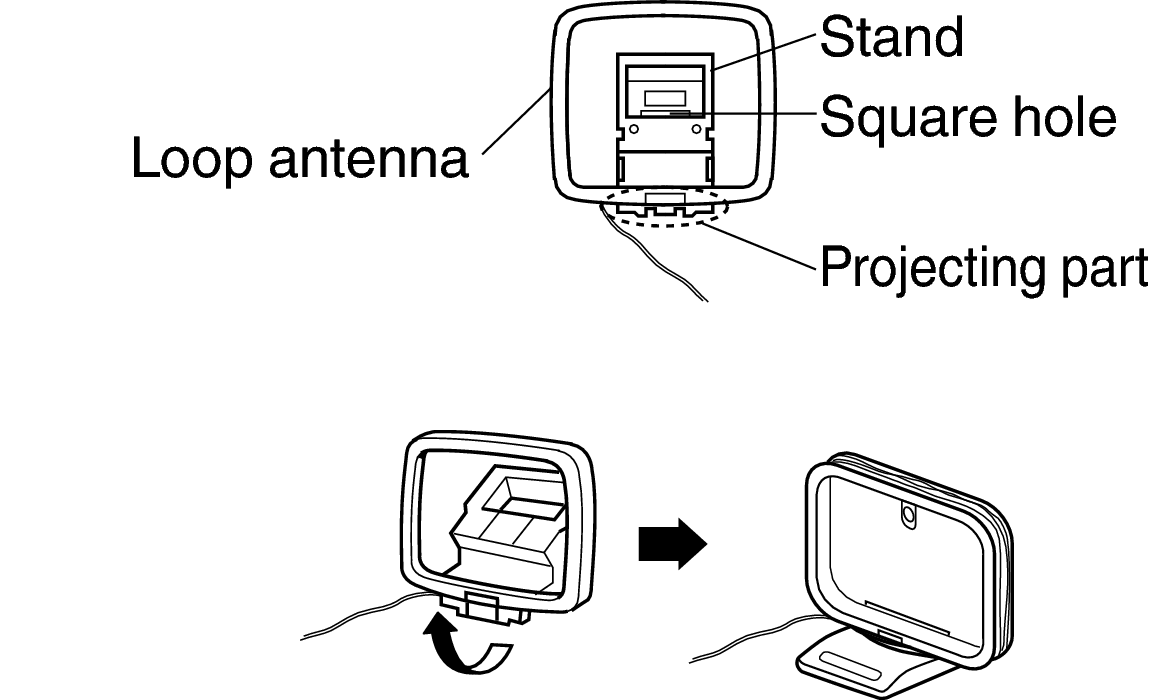

Use the procedure shown above to assemble.
When assembling, refer to “AM loop antenna assembly”.
