Back panel

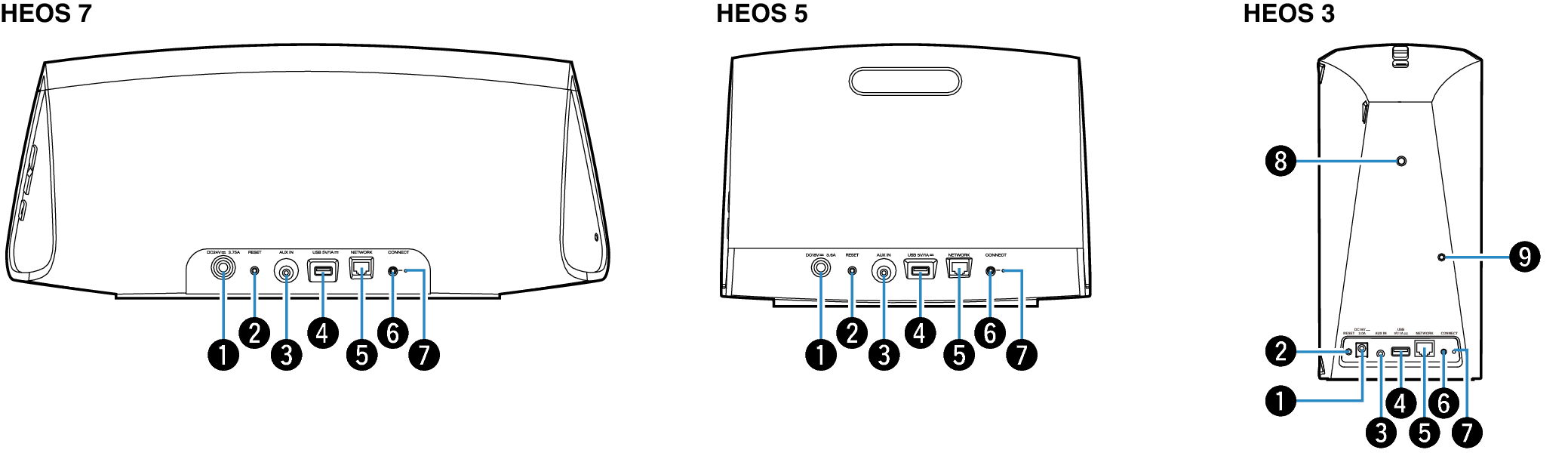

HEOS_Back Panel

Power Input (DC IN)

Used to connect the external power supply link.

Reset Button (RESET)

Various settings are reset to the factory default values link.

AUX Input (AUX IN)

Used to connect audio devices link.

Used to add the speaker to your wireless network link.

USB Input (USB 5V/1A)

Used to connect USB storage devices.

Network Connector (NETWORK)

Used to connect this unit to a wired Ethernet network link.

Connect Button (CONNECT)

Used for Wi-Fi setup link.

Connect in Status LED

Indicates the status of this unit link, link.

Threaded Mounting Hole

Used to mount this unit on a wall or ceiling.

Safety Wiring Hole

Used to prevent from dropping.
