HEOS 7

Wireless LAN

Network type:

Conforming to IEEE 802.11a/b/g/n

Used frequency range:

2.4 GHz, 5 GHz

General

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 100 – 240 V, 50/60 Hz

Power consumption:

20W

Power consumption in Network Standby mode:

4.5W

Power consumption in Deep Standby Mode:

0.3W

Max Analog Input:

1 Vrms

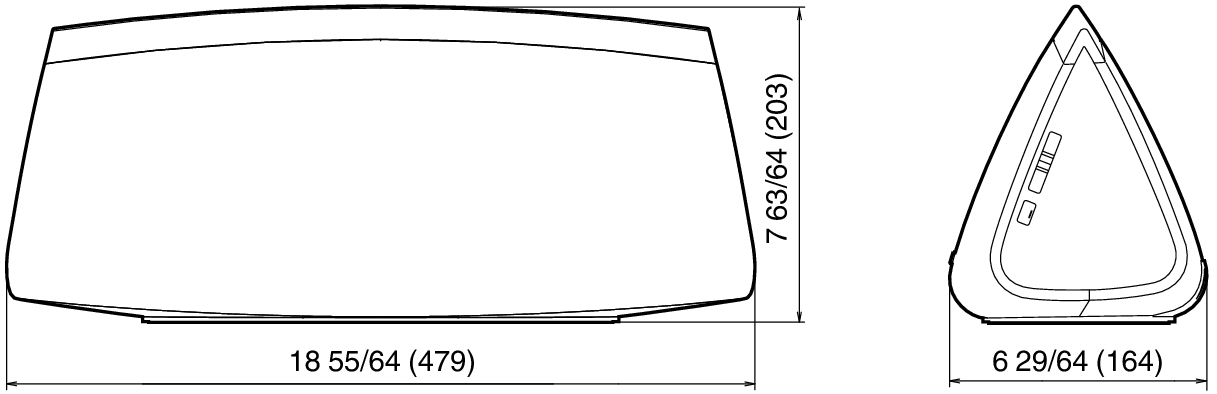

Dimensions

Unit : in. (mm)

Dimensions_HEOS7

Weight: 9 lbs 15 oz (4.5 Kg)

For the purpose of improvement, the specifications and design are subject to change without notice.
