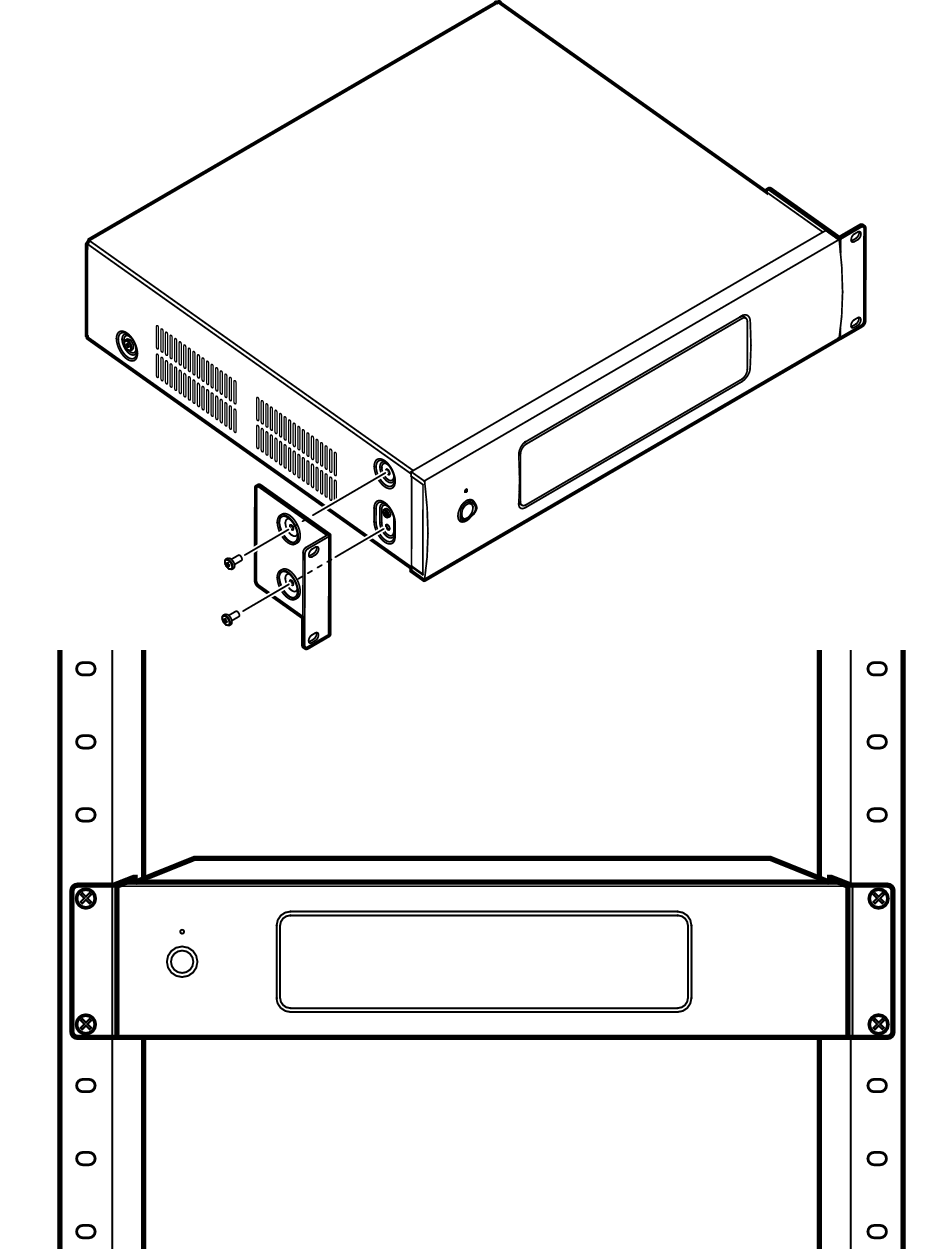

Attaching the rack mount brackets

Attach the included rack mounting brackets to the sides of the HEOS Drive if you want to mount the HEOS Drive in a standard EIA equipment rack.

Remove the two screws on each side of the HEOS Drive.
Align the brackets with the screw holes and reattach the screws making sure they are secure.
Place Drive 01
