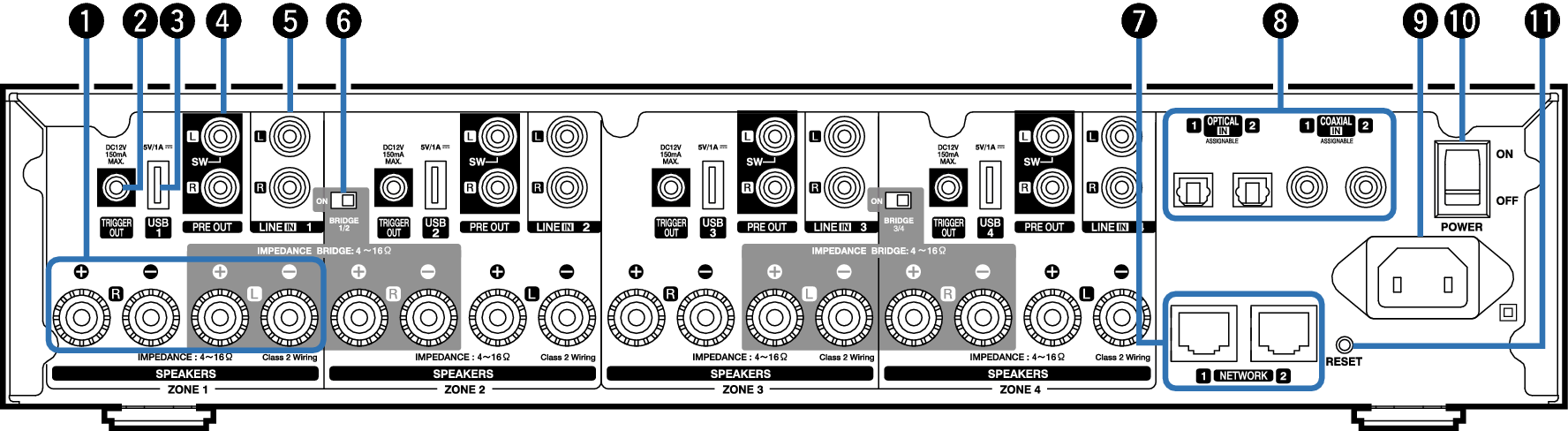

Back panel
Speaker terminals (SPEAKERS)
Used to connect speakers. link
TRIGGER OUT jack (TRIGGER OUT)
Used to connect devices equipped with a trigger function. link
USB Input (USB 5 V/1 A)
Used to connect USB storage devices. link
Analog output (PRE OUT)
Used to connect external amplifiers. link
Analog Input (LINE IN)
Used to connect devices equipped with analog audio outputs. link
Bridge Mode Switch (BRIDGE)
Used to enable the amplifier bridge setting. link
NETWORK connector
Used to connect this unit to a wired Ethernet network. link
Digital Input (OPTICAL IN/COAXIAL IN)
Used to connect devices equipped with digital audio outputs. link
AC inlet
Used to connect the power cord. link
Master Power Switch (POWER)
RESET button
Various settings are reset to the factory default values. link
