Soundbar

Wireless LAN

Network type:

Conforming to IEEE 802.11a/b/g/n

Used frequency range:

2.4 GHz, 5 GHz

General

Wireless Technology:

5.8 GHz frequency hopping

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 100 – 240 V, 50/60 Hz

Power consumption:

DC24V, 3.75A

Power consumption in Quick Start Mode: *

4.3 W (Wi-Fi)
4.8 W (Ethernet)
5.7 W (USB)
4.8 W (HDMI IN)
5.2 W (HDMI OUT (ARC))

Power consumption in Deep Standby Mode: *

0.49 W

Max Analog Input:

2 Vrms

*Cable to AUX IN must be disconnected to enter Quick Start Mode and Deep Standby Mode.

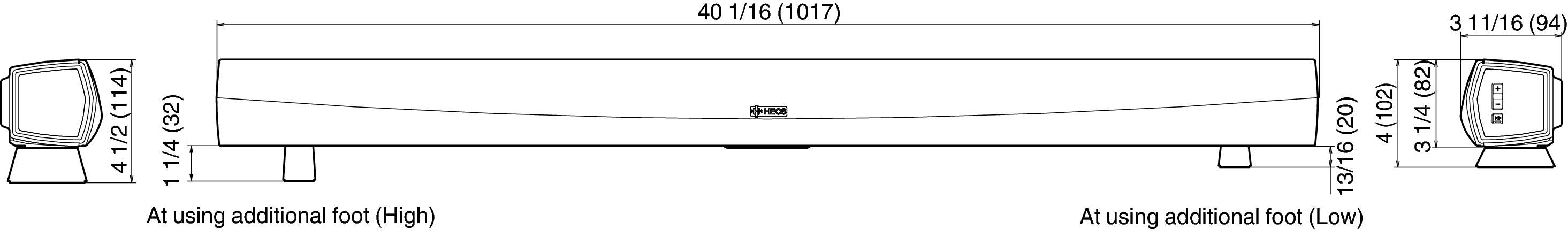

Dimensions

Unit : in. (mm)

Size HC3

Weight: 6 lbs 3oz (2.8Kg)
