Menu map

For menu operations, see the following page.

By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.

Setting items

Description

Page

CLOCK SETUP

Sets the current time.

ALARM SETUP

Sets the timer playback.

ALARM ON/OFF

Set the timer playback to on or off.

H/P AMP GAIN

Set the gain of the headphone amplifier. Set this according to the impedance of the connected headphones.

SPK OPTIMISE

Sets the optimum playback properties of the speakers (SC-M41, sold separately).

AUTO STANDBY

Sets whether to automatically switch the unit to the standby mode when there is no input signal and operation for 15 minutes.

CD AUTO PLAY

Set whether or not to automatically play a disc when the disc is inserted.

TUNER SETUP

The following 2 items are displayed when “TUNER SETUP” is selected.



FM AUTO PRESET

Automatically presets FM channels.

MODE SELECT

Uses the Preset/Tuning buttons (–, +) on the unit to set whether to switch between channels registered as presets, or whether to switch the reception frequency one step at a time.

CLOCK MODE

The clock is constantly displayed.

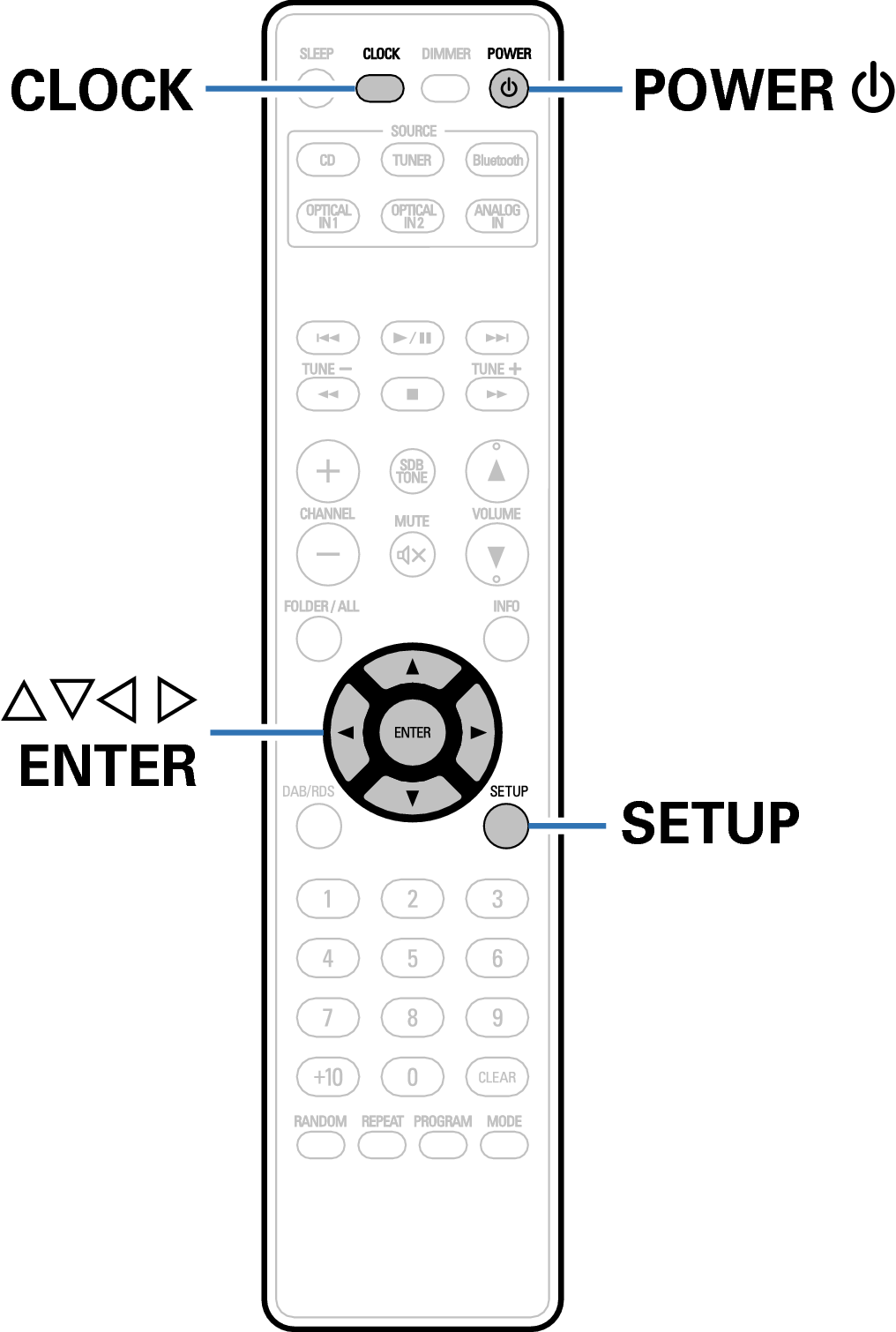

Remote control unit illustration

Ope RC1214 menu
