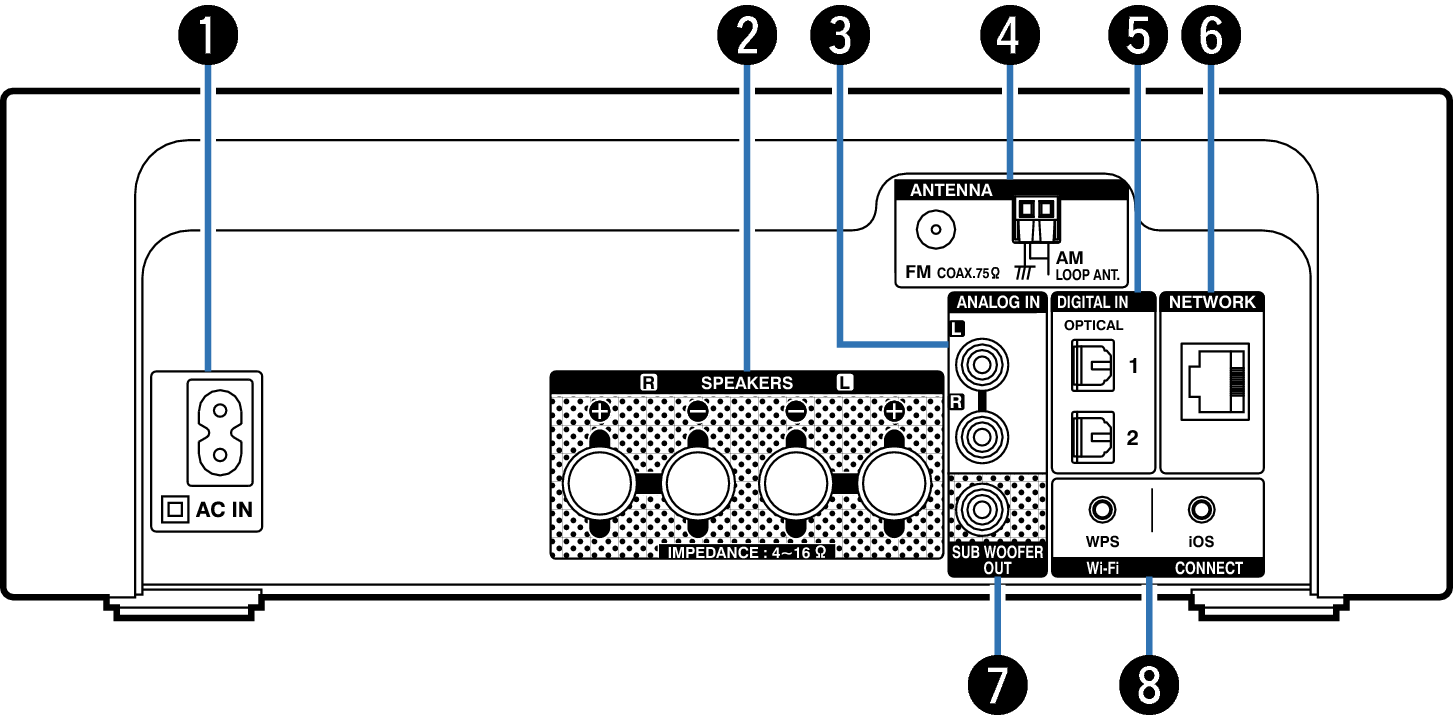

Rear panel
AC inlet (AC IN)
Used to connect the supplied power cord. link
Speaker terminals (SPEAKERS)
Used to connect speakers. link
ANALOG IN connectors
Used to connect devices equipped with analog audio connectors. link
Antenna terminals (ANTENNA)
Used to connect FM room antennas and AM loop antennas. link
DIGITAL IN connectors
Used to connect devices equipped with digital audio connectors. link
NETWORK connector
Used to connect this unit to the network. link
SW OUT connector
Used to connect a subwoofer with a built-in amplifier. link
Wi-Fi CONNECT buttons (iOS/WPS)
Used to connect to the wireless LAN.
(See the separate “Quick Setup Guide”.)
