Charging
Envaya can be powered by an AC power source or from it’s internal battery.
Please make sure you charge the battery completely before listening on battery power.
It takes approximately 2.5 hours to fully charge the battery when it is completely discharged.
Envaya can be used for approximately 10 hours when the battery is fully charged. (The playback time may differ depending on the ambient temperature, playback volume, and usage conditions)
Only use the supplied AC charger/power supply.
Attach the correct adapter for your region.
Changing the AC adapter plug
Attach the adapter plug that fits the power outlet in your region as shown below:
[Attaching an AC adapter plug]
Push in the direction of the arrow until a “click” sound is heard.
[Removing an AC adapter plug]
While pressing the button, slide in the direction of the arrow.
Connecting the AC charger/power supply
Envaya automatically starts charging when the AC charger/power supply is connected to a power source and the speaker.
See Battery indicatorlink for details about understanding the battery indicator.

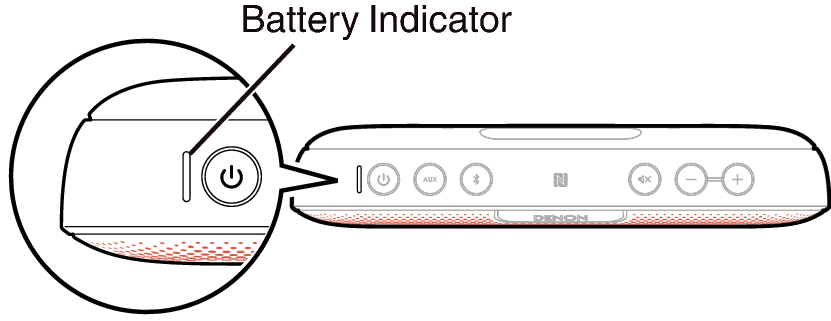

Battery indicator
The battery indicator uses 3 LEDs to indicate the approximate time remaining on the internal battery and the status of the charge process when connected to an AC power source.
When connected to the AC charger/power supply (charging)
The battery indicator is always lit when charging.
Charging status (Approximate) |
Battery Indicator |
|
---|---|---|
100 % |
Lit |
|
70 – 100 % |
Blinking |
|
30 – 70 % |
Blinking |
|
0 – 30 % |
Blinking |
When running on battery power
Press and release the button to check the remaining battery. The remaining battery level is displayed for approximately 5 seconds.
Remaining battery (Approximate) |
Battery Indicator |
|
---|---|---|
70 – 100 % |
Lit |
|
30 – 70 % |
Lit |
|
5 – 30 % |
Lit |
|
0 – 5 % |
Blinking |
Low Battery Indicator: When the battery level is very low, the bottom LED will flash. This indicates that the AC charger needs to be connected as soon as possible.
