Remote control unit

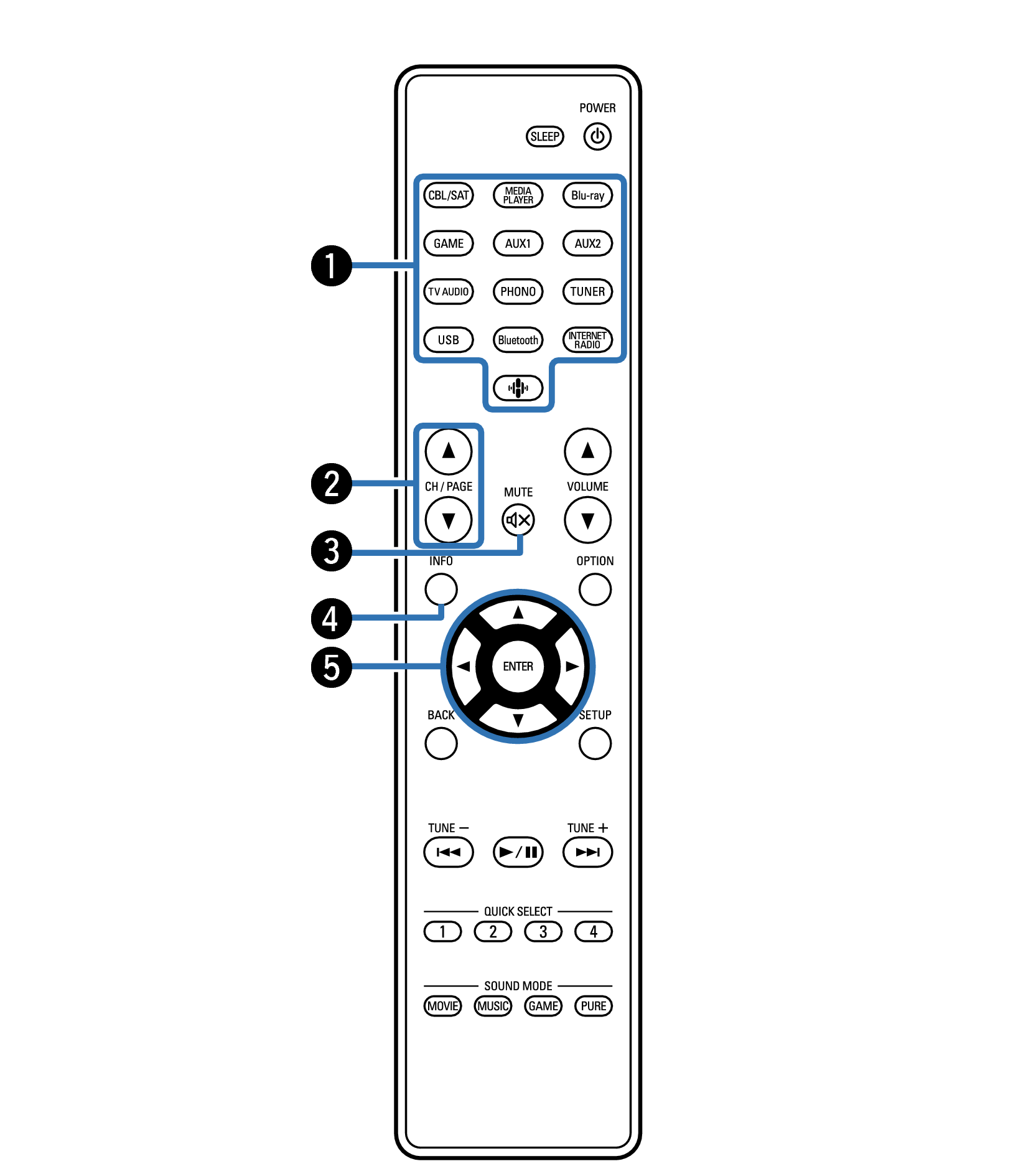

Name RC1258

Input source select buttons

These selects the input source. link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link

MUTE button ( Silent )

This mutes the output audio. link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons

These select items.

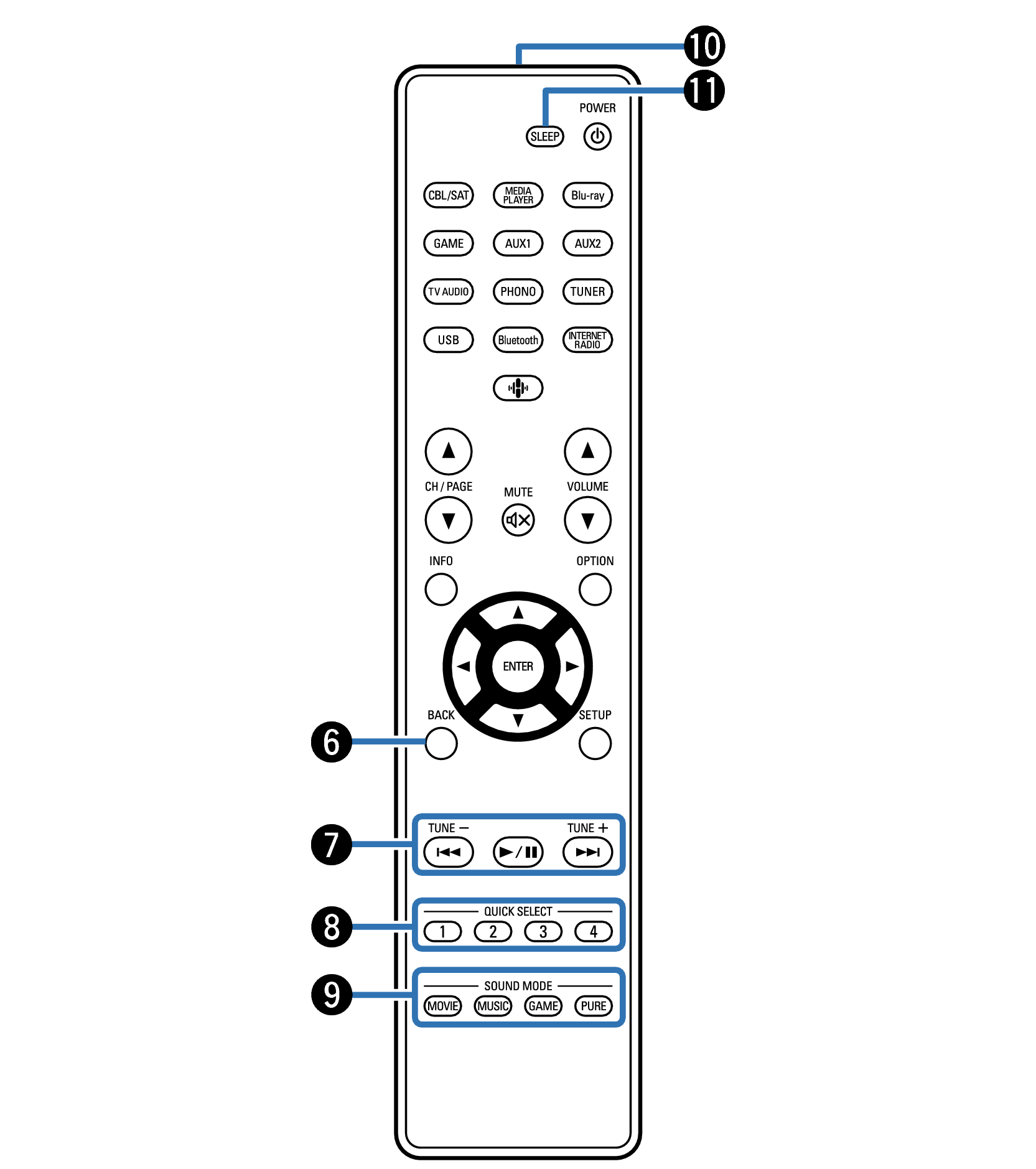

Name RC1258a

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

SLEEP button

This sets the sleep timer. link

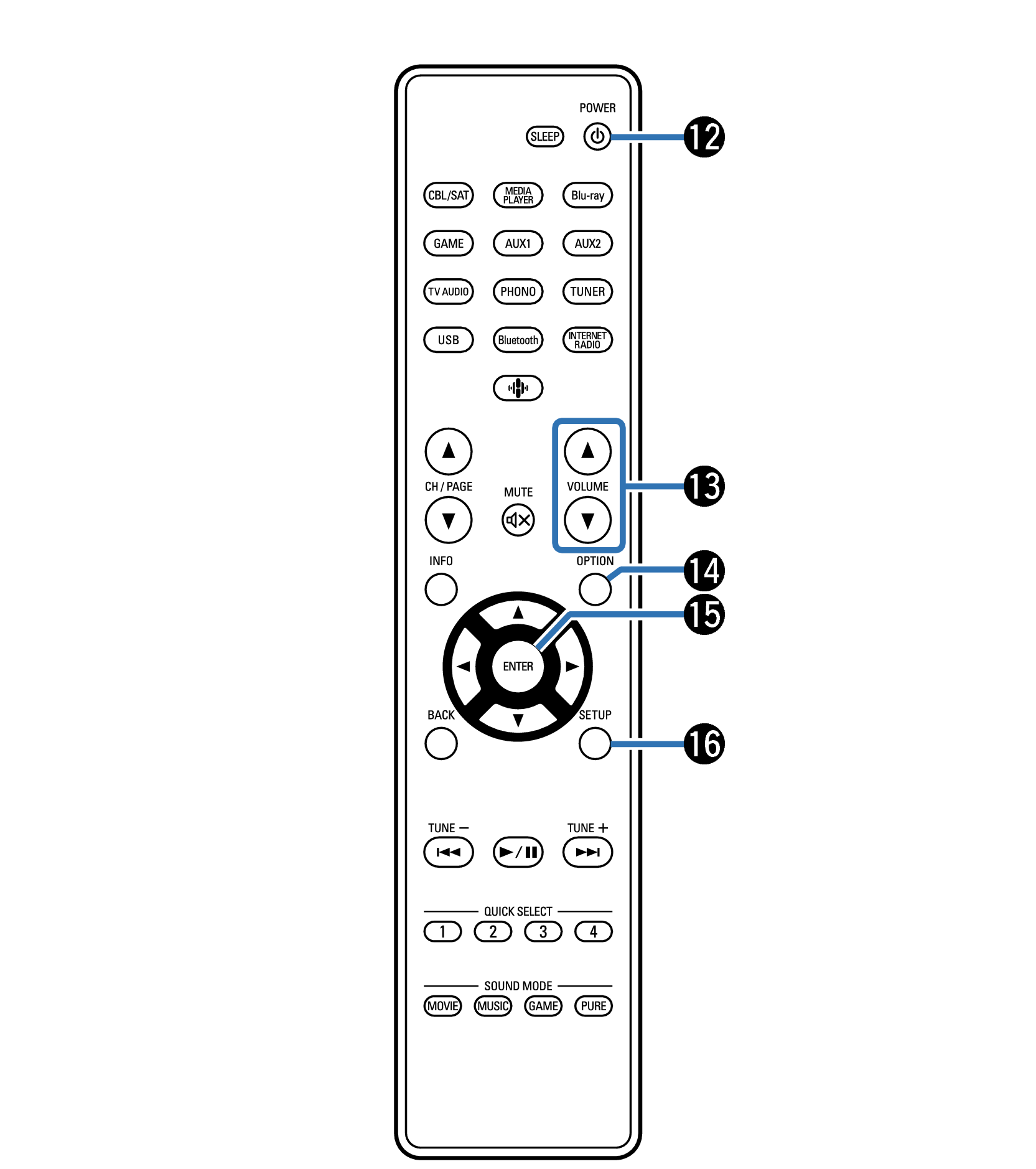

Name RC1258b

POWER button ( Power Button )

This turns the power on/off. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjusts the volume level. link

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link
