Speaker configuration and “Amp Assign” settings
This unit has a built-in 7-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign”link settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback.
Perform “Amp Assign”link settings to suit the number of rooms and speaker configuration to be installed.
|
Playback speaker and zone |
“Amp Assign” settings |
Connection page |
|
|---|---|---|---|
|
MAIN ZONE |
ZONE2 |
||
|
5.1-channel |
Not used |
ZONE2 (Default) |
|
|
7.1-channel (surround back) |
Not used |
Surround Back |
|
|
7.1-channel (front height) |
Not used |
Front Height |
|
|
5.1-channel |
2-channel |
ZONE2 (Default) |
|
The sound mode that can be selected varies according to the speaker configuration. See “Relationship between sound modes and channel output” link for the sound modes that are supported.
Standard configuration and connection

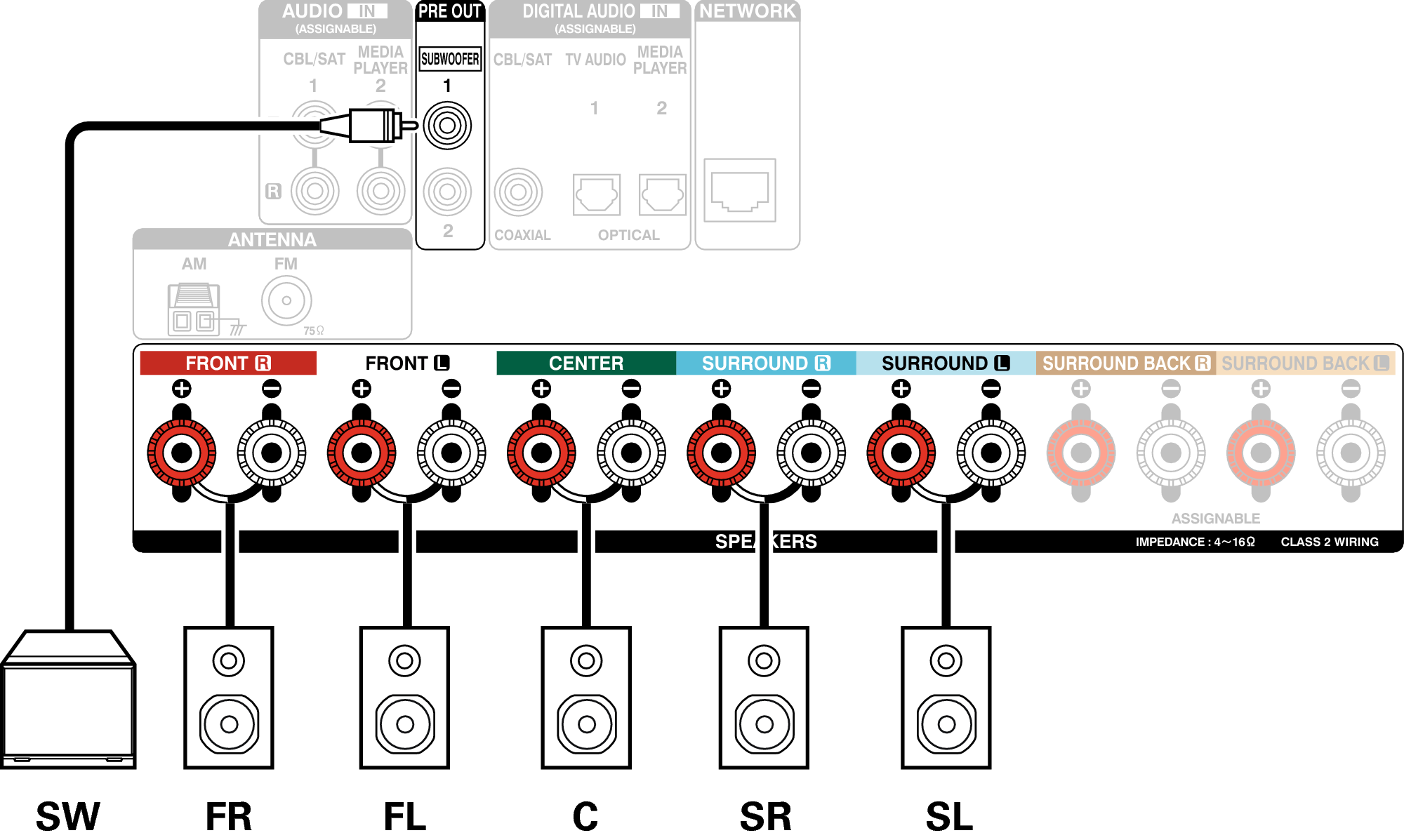

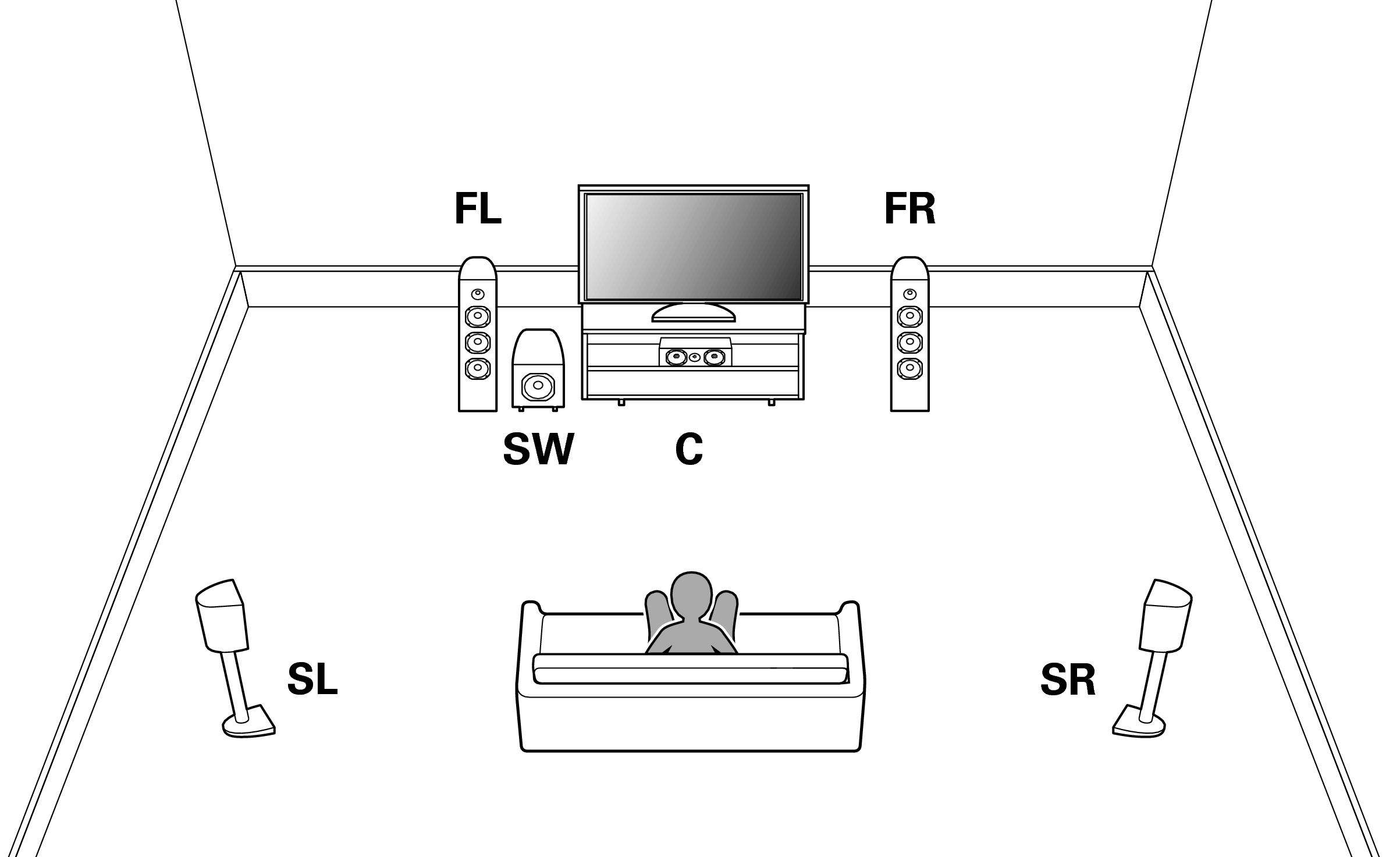

5.1-channel
This serves as a basic 5.1-channel surround system.
Sound modes such as Dolby Pro Logic
are supported.
7.1-channel (surround back)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
Sound modes such as Dolby Pro Logic x are supported.
When using a single surround back speaker, connect it to the SURROUND BACK L terminal.

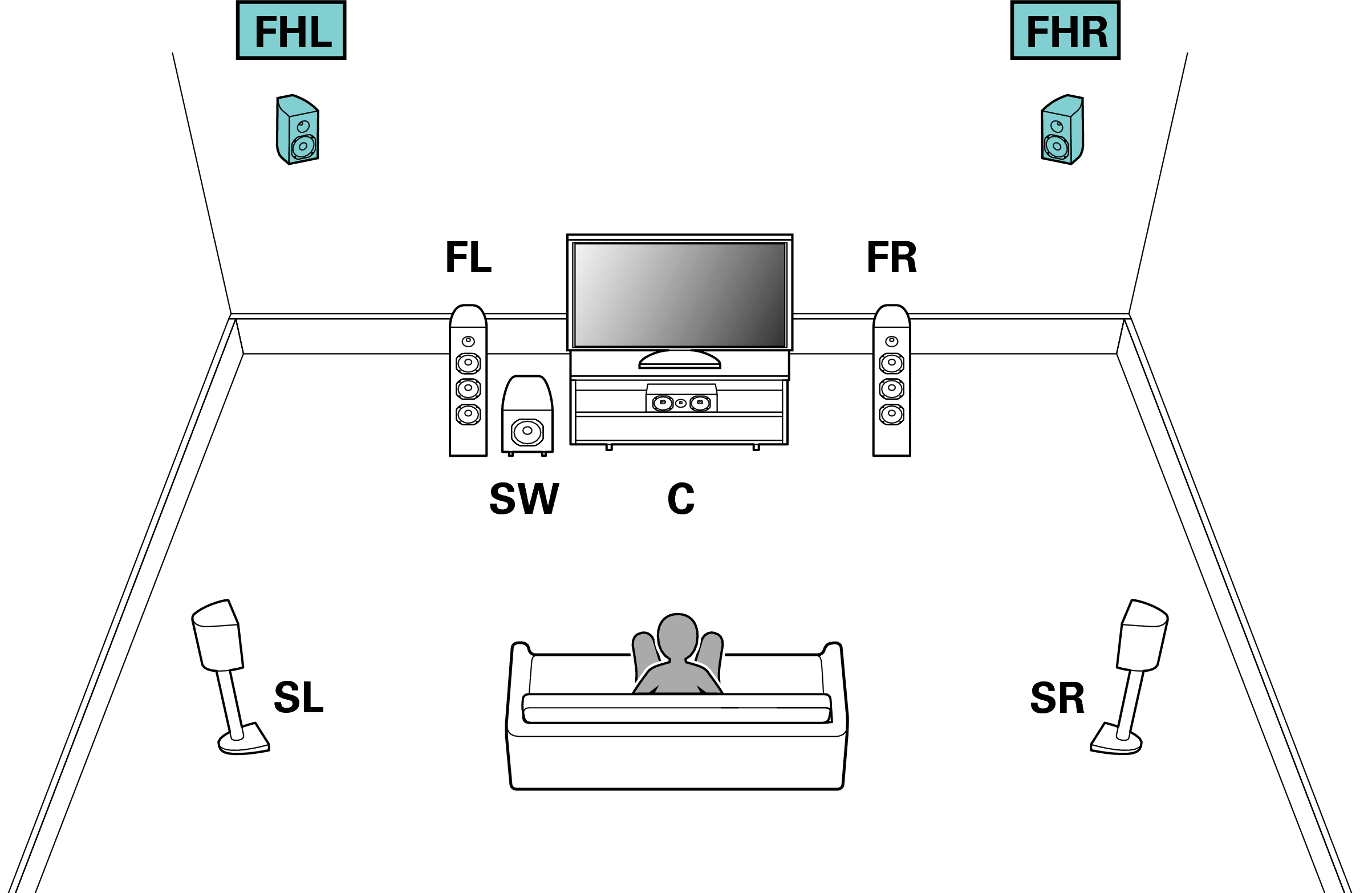

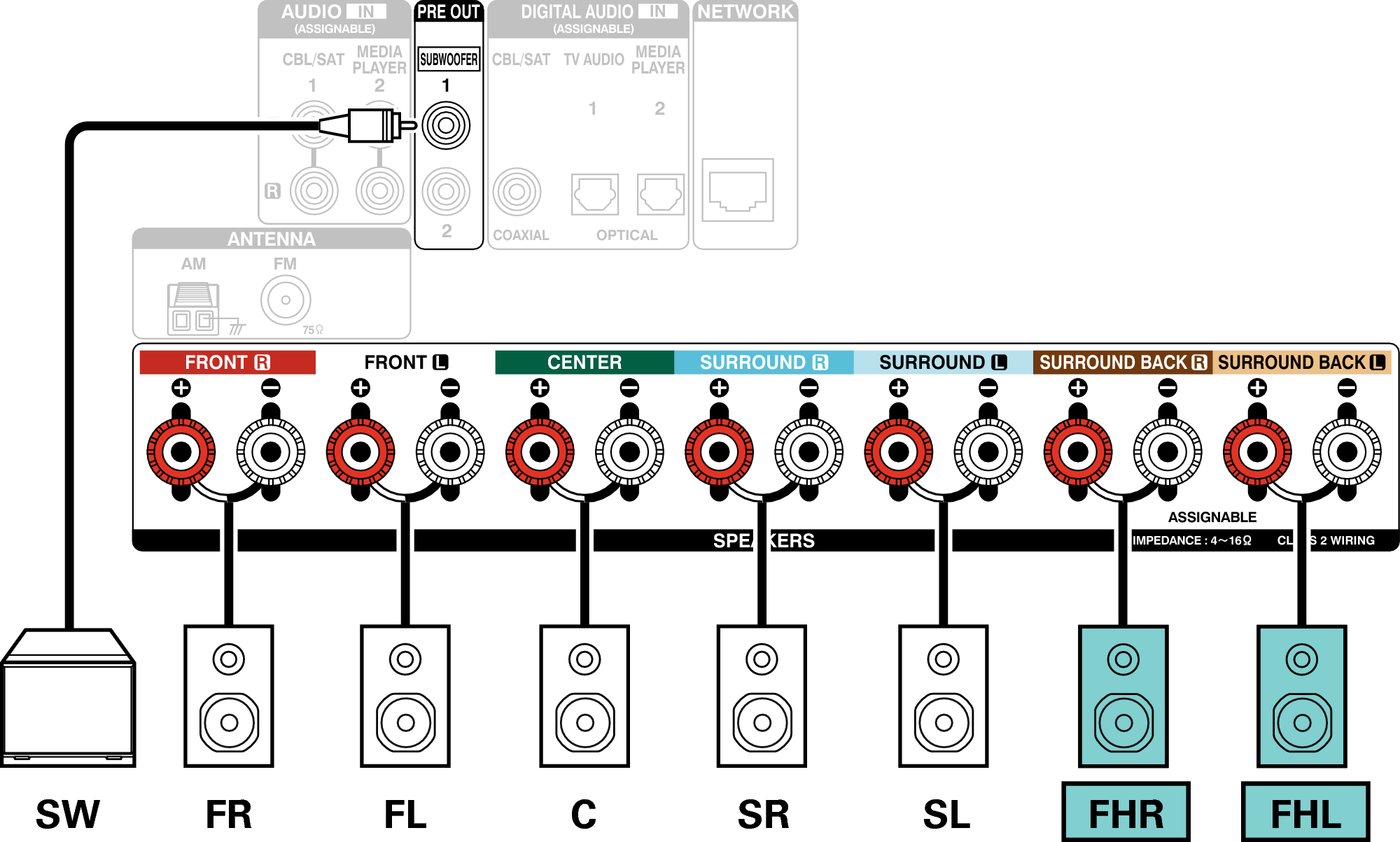

7.1-channel (front height)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.
Sound modes such as Dolby Pro Logic z are supported.
Applied configuration and connection

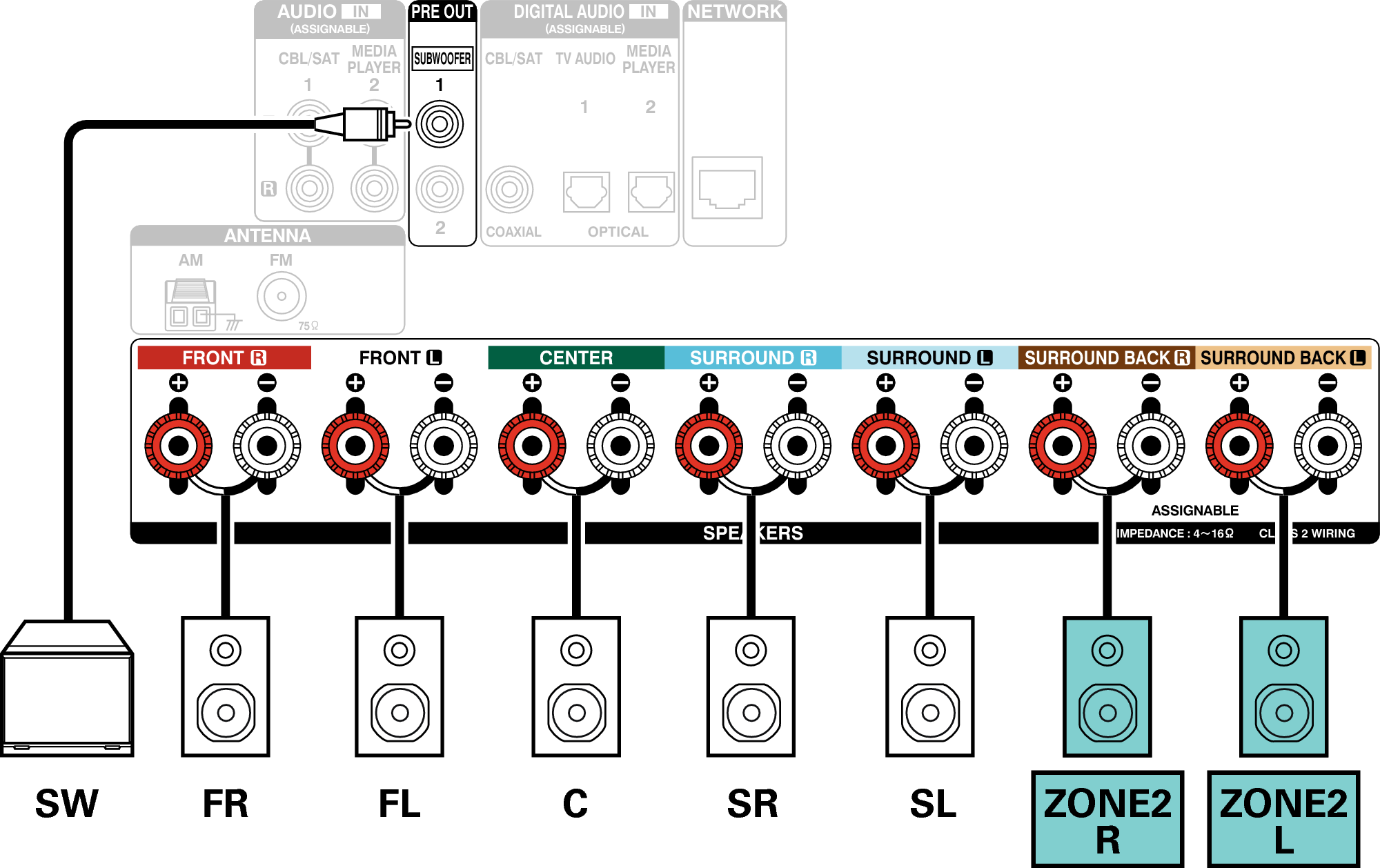

5.1-channel (MAIN ZONE) + 2-channel (ZONE2)
This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.
|
MAIN ZONE |
 |
|
ZONE2 |
 |
