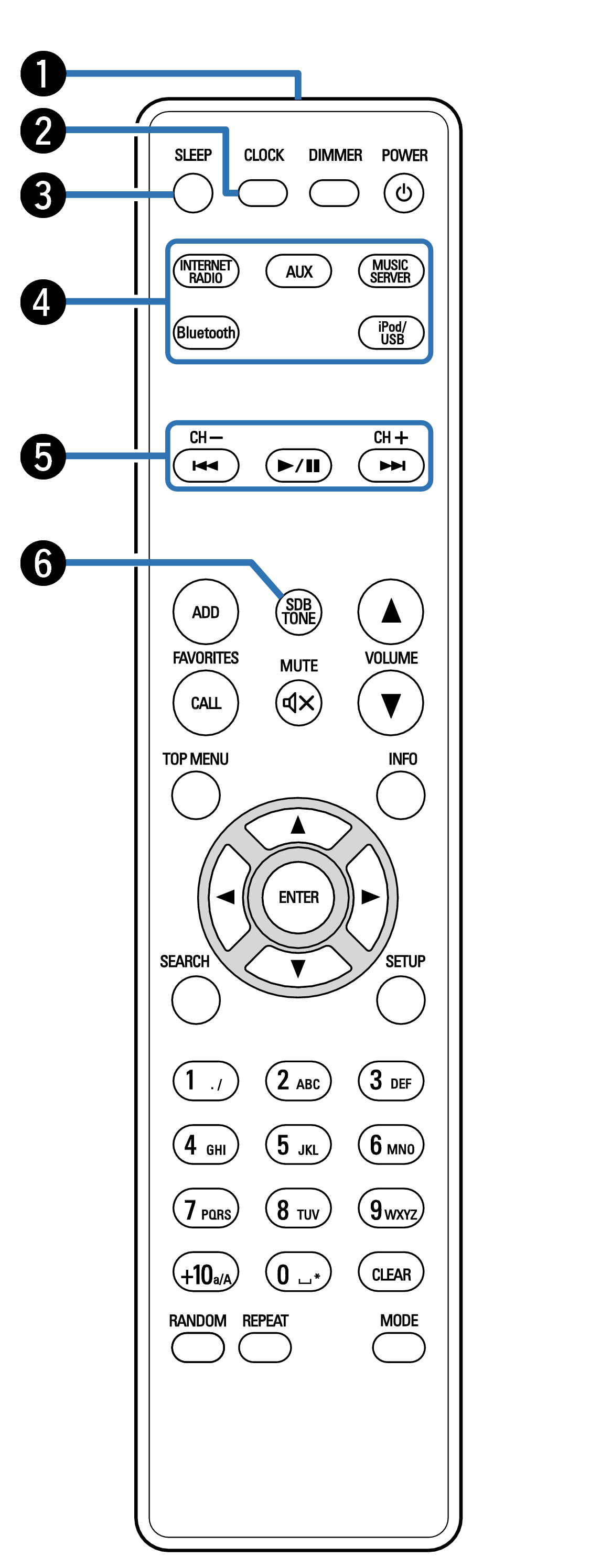

Remote control unit
Remote control signal transmitter
This transmits signals from the remote control unit. link
CLOCK button
The current time appear on the unit. link
SLEEP button
This sets the sleep timer. link
Input source select buttons
These select the input source. link
System buttons
Reverse-skip / Forward-skip buttons (
,
)
Play/pause button (
/
)
Channel buttons (CH +, –)
These operate the Favorite function. link
SDB/TONE button
Adjusting the tone. link

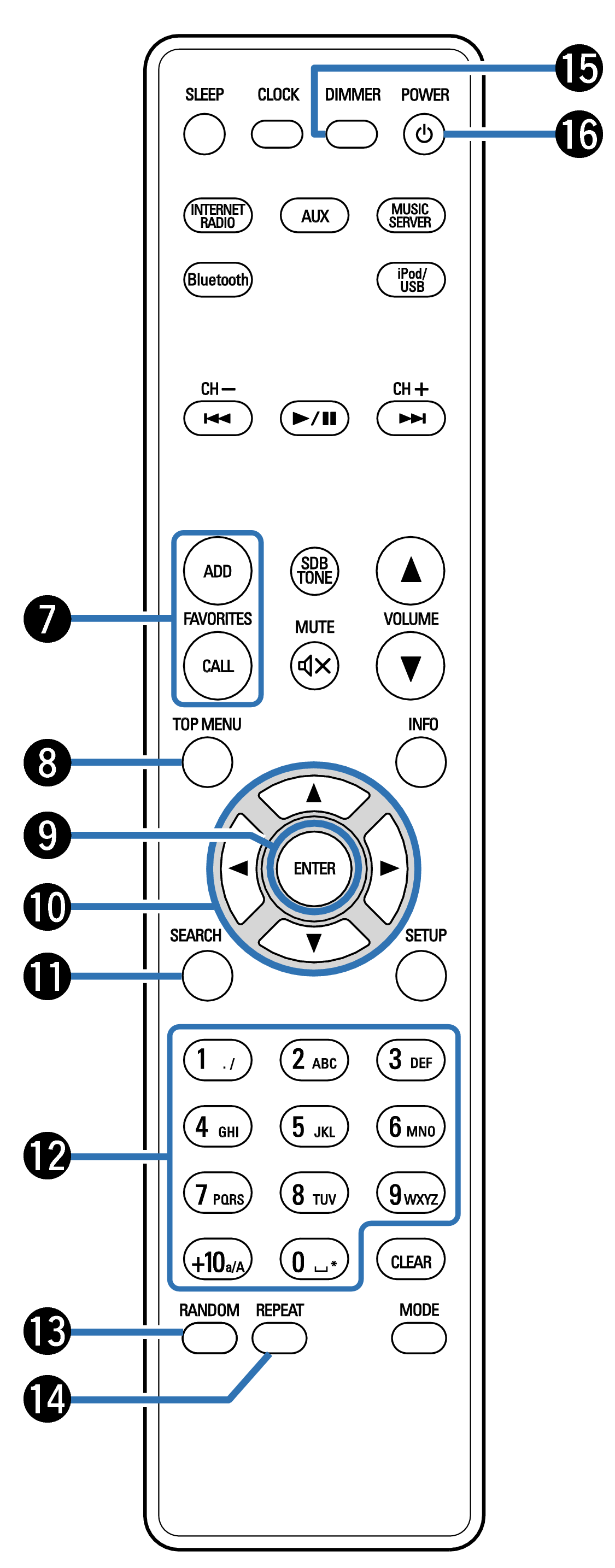

FAVORITES ADD / CALL buttons
To add radio stations or files to the favorite list, press ADD button. link
To call up a radio station or file registered in the favorite list, press CALL button. link
TOP MENU button
To back to the top of the menu. link
ENTER button
This determines the selection. link
Cursor buttons (
)
These select items. link
SEARCH button
Number buttons (0 – 9, +10)
These enter letters or numbers into the unit. link
RANDOM button
REPEAT button
DIMMER button
Adjust the display brightness of this unit. link
POWER button (
)
This turns the power on/standby. link

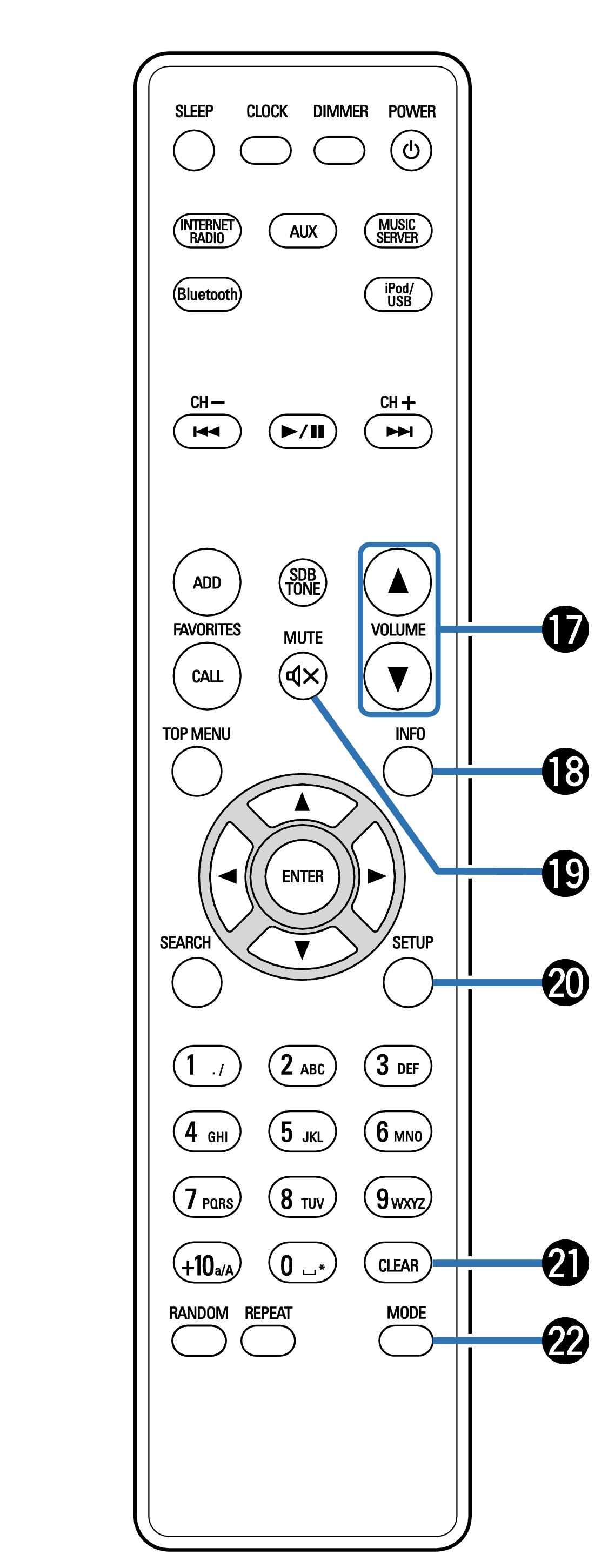

VOLUME buttons (
)
These adjust the volume level. link
Information button (INFO)
This switches display items such as the elapsed time, album name and title name in the playback screen. link, link, link, link
MUTE button (
)
This mutes the output audio. link
SETUP button
The setting menu is displayed on the display. link
CLEAR button
MODE button
This switches the operation mode. link
