Specifications

Audio section

Power amplifier

Maximum output power:

(NORMAL OPERATION)
8-channel driving
60W + 60W (8 Ω/ohms, 20 Hz – 20 kHz, T.H.D. 0.05 %)

(BRIDGE OPERATION)
4-channel driving
130W + 130W (8 Ω/ohms, 20 Hz – 20 kHz, T.H.D. 0.05 %)

Rated output:

(NORMAL OPERATION)
8-channel driving
60W + 60W (8 Ω/ohms, 20 Hz – 20 kHz, T.H.D. 0.07 %)

(BRIDGE OPERATION)
4-channel driving
120W + 120W (8 Ω/ohms, 20 Hz – 20 kHz, T.H.D. 0.07 %)

Output connectors:

(NORMAL OPERATION)
4 – 16 Ω/ohms

(BRIDGE OPERATION)
4 – 16 Ω/ohms

THD+N:

0.05 % (20 Hz - 20 kHz)

S/N:

95 dB (IHF–A weighted)

Frequency response:

20 Hz to 20 kHz: ±1 dB

General

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 120 V, 60 Hz (for North America)

AC 220 - 240 V, 50/60 Hz (for Europe, UK and Australia)

Power consumption:

170 W (for North America)

160 W (for Europe, UK and Australia)

Power consumption in Deep Standby Mode:

0.3 W

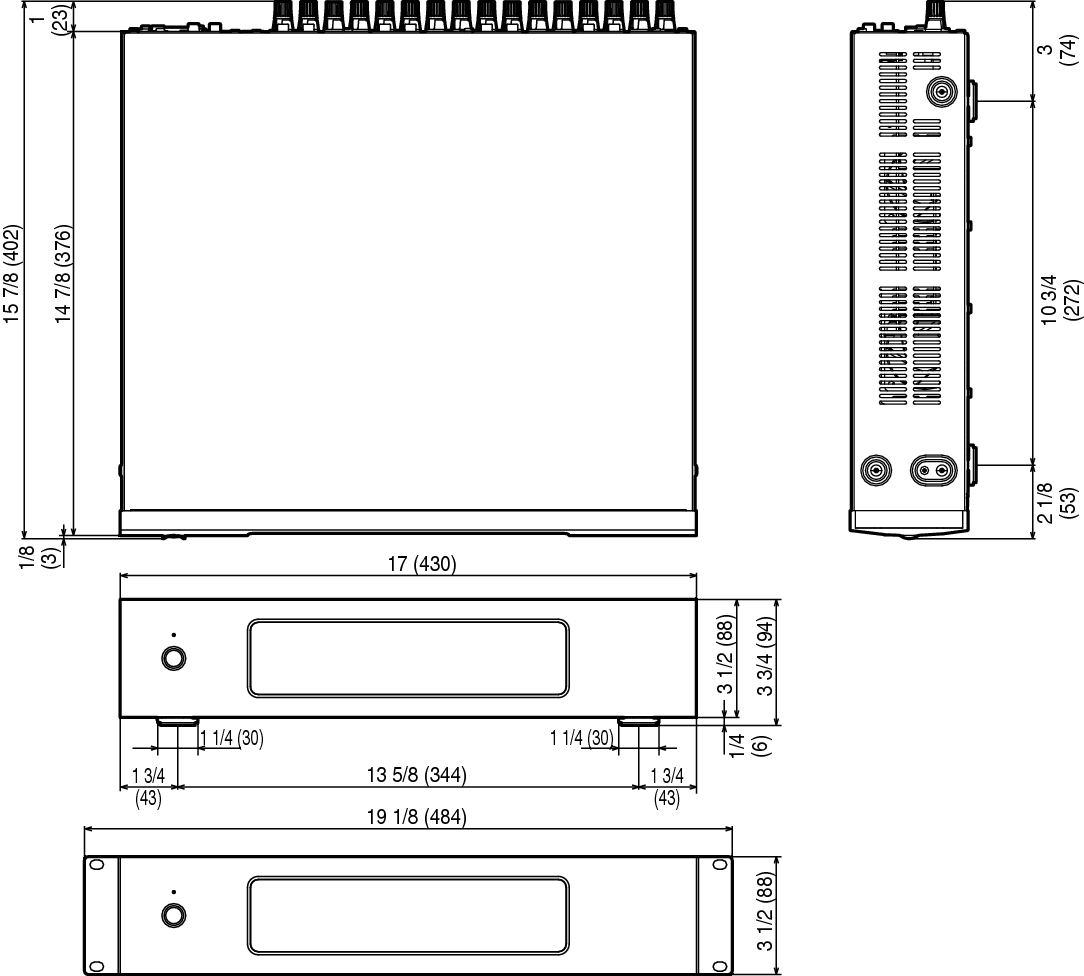

Dimensions (Unit : in. (mm))

Size Drive EM

Weight : 16 lbs 9 oz (7.5 kg) (with brackets) 15 lbs 14 oz (7.2 kg) (w/o brackets)

For the purpose of improvement, the specifications and design are subject to change without notice.
