Controlling the unit from a web control
The web control screen supports the following functions.
Setup Menu
Power ON/OFF
MAIN ZONE input source switching

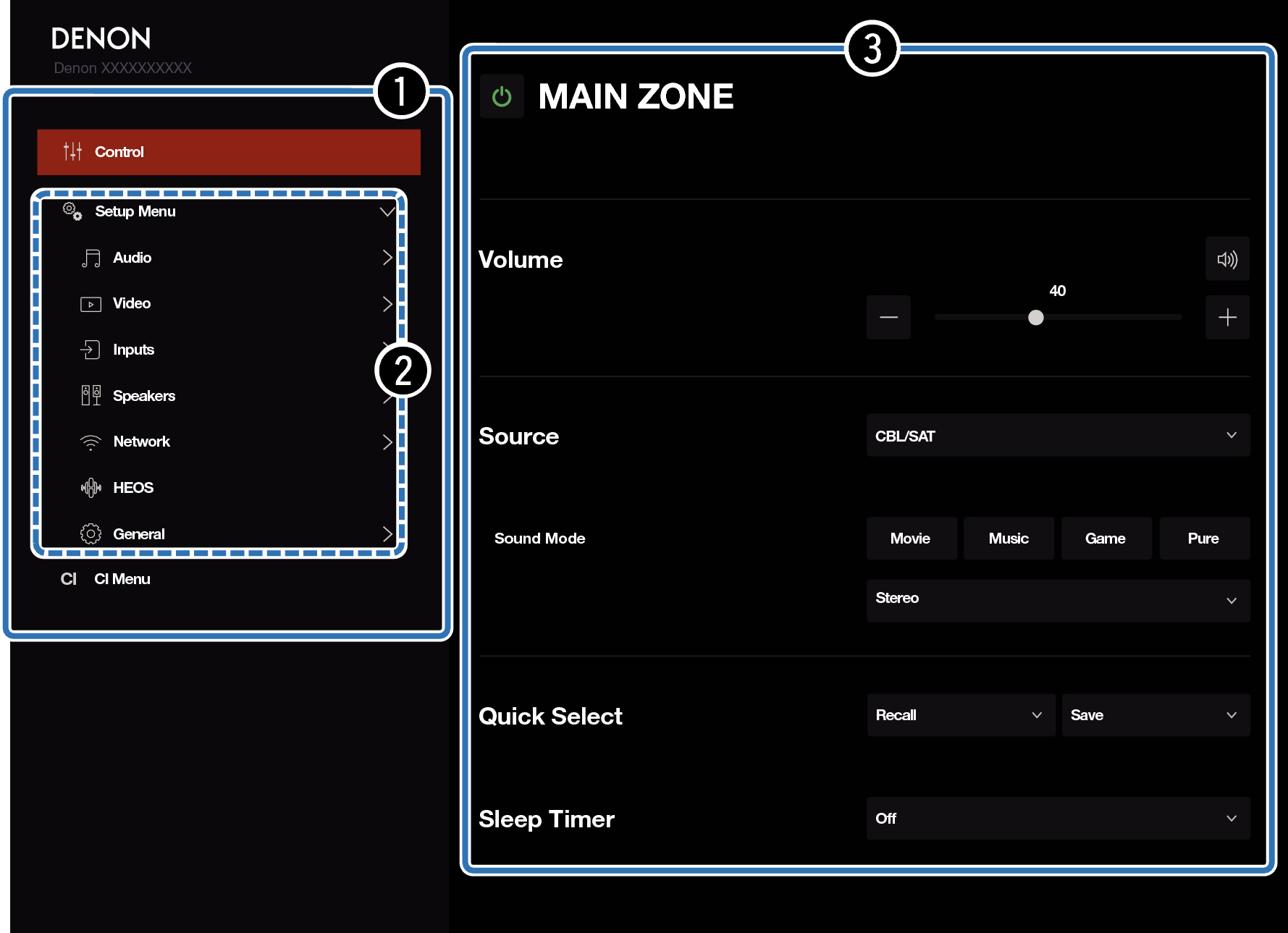

Web control screen
Top menu
![Pict Web8 De](fig/Pict Web8 De_DRDZILzekjxjar.png)
Audyssey Setup is not supported on the web control screen. If you wish to perform measurement, perform measurement from the on-screen Setup Menu.
“Advanced” contains settings for use by custom installers and should not be used at any other time.
Switch the “Network Control” setting to “Always On”. link

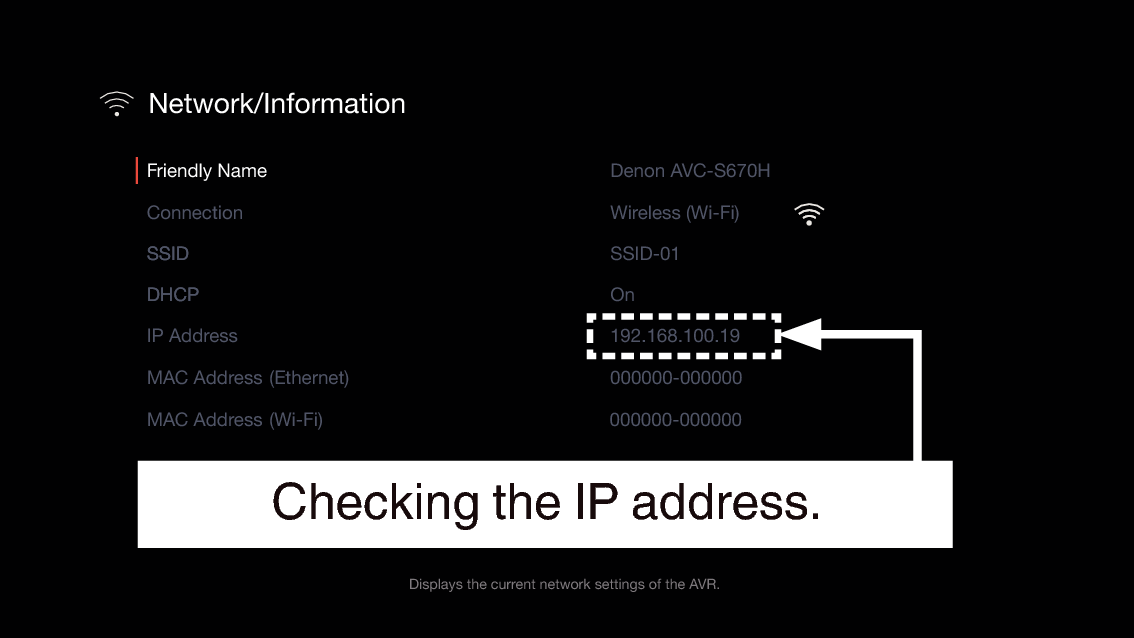

Check the IP address of this unit with “Information”. link
![GUI NetworkInfo AVC67](fig/GUI NetworkInfo AVC67_DRDZILwryilrru.png)
Open a web browser on a PC or tablet.

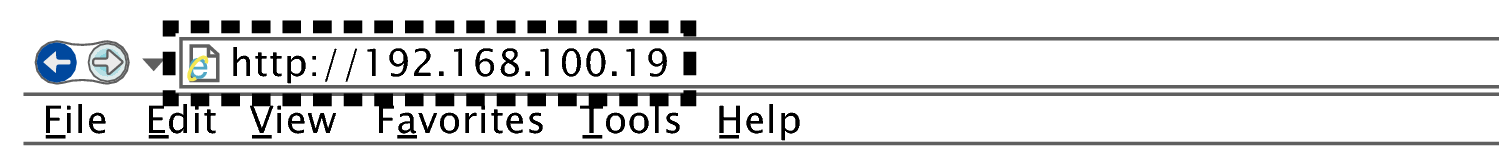

Enter the IP address of this unit in browser’s address box.
For example, if the IP address of this unit is “192.168.100.19”, enter “http://192.168.100.19”.
![GUI Web4 S94](fig/GUI Web4 S94_RQIFILlnksojzi.png)

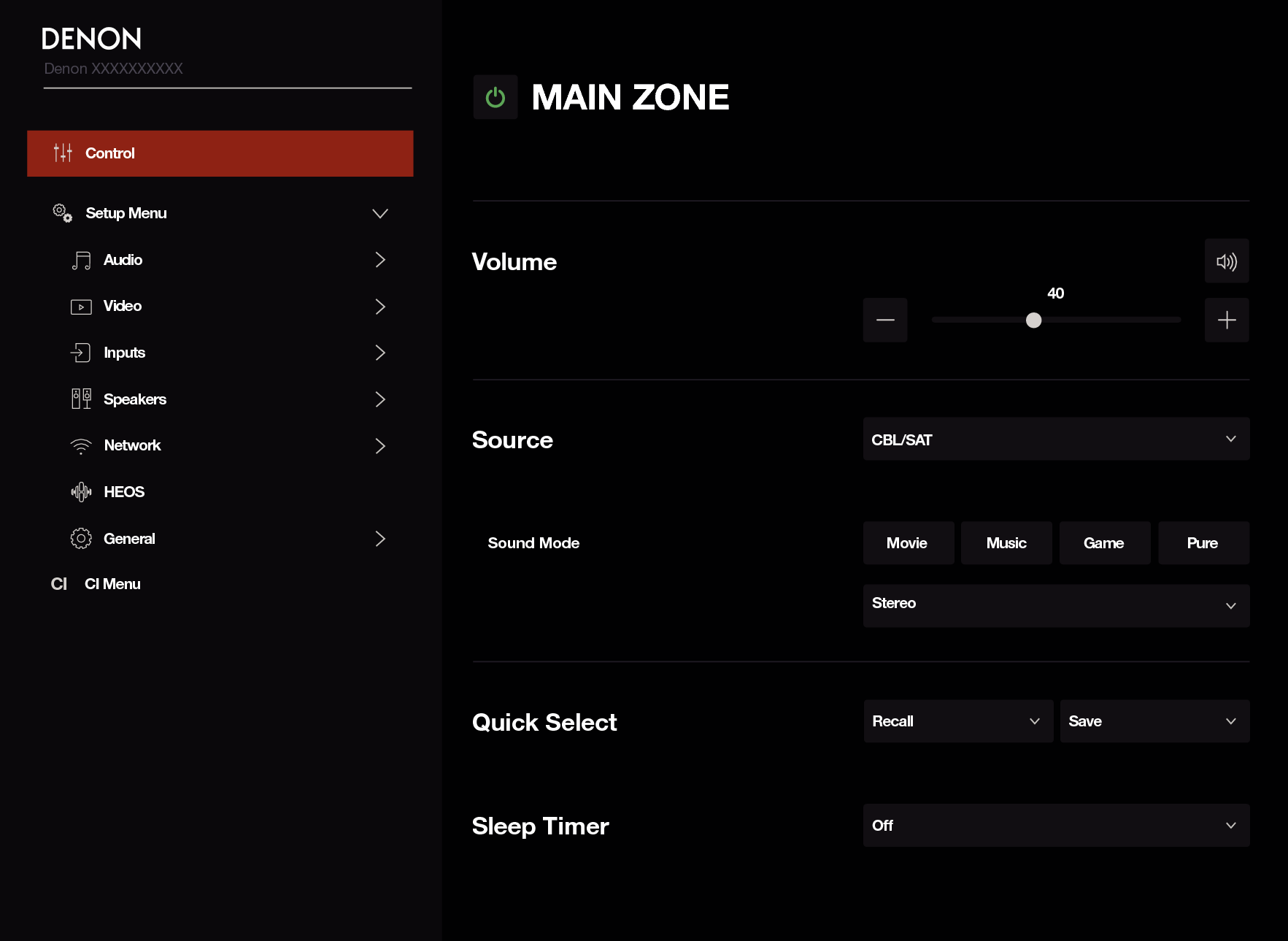

When the top menu is displayed on the web browser, click on the menu item you want to operate.
![Pict Web7 De](fig/Pict Web7 De_DRDZILdphufhbv.png)
