Sound mode that can be selected for each input signal

The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.

Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. link

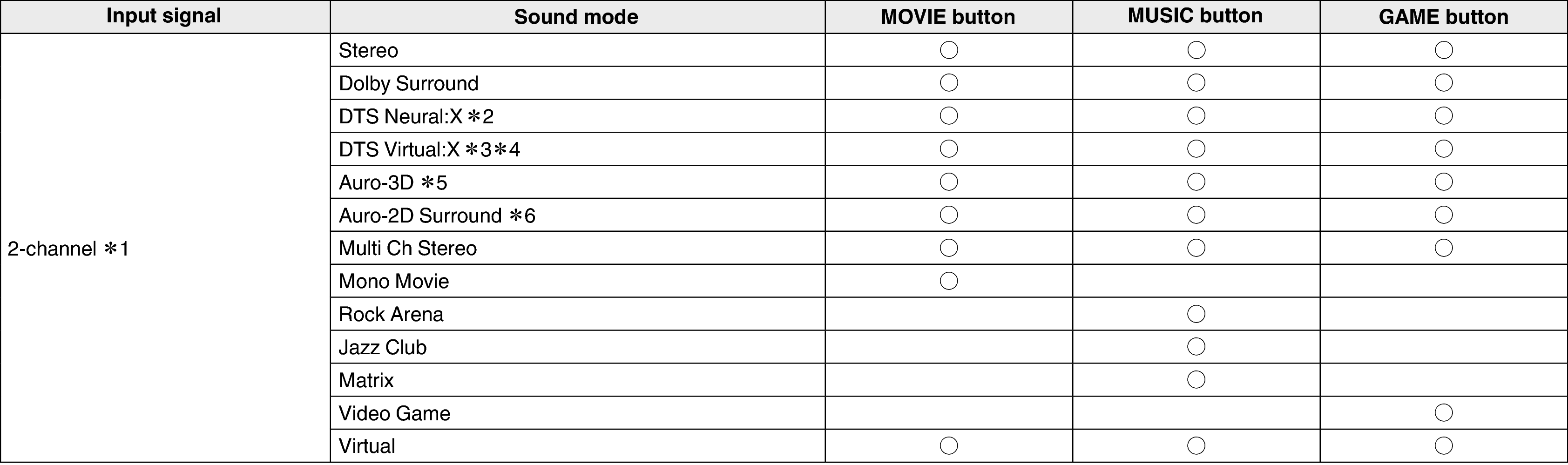

Pict Soundmode1 X47

2-channel also includes analog input.

This mode plays back 2-channel sources in 5.1, 7.1, 9.1 or 11.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.

It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.

It cannot be selected when the input signal is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos.

It cannot be selected when headphones are used, or when a speaker configuration without front height or front Dolby Atmos Enabled speakers is used.

It cannot be selected when headphones are used, or when only front speakers are used.

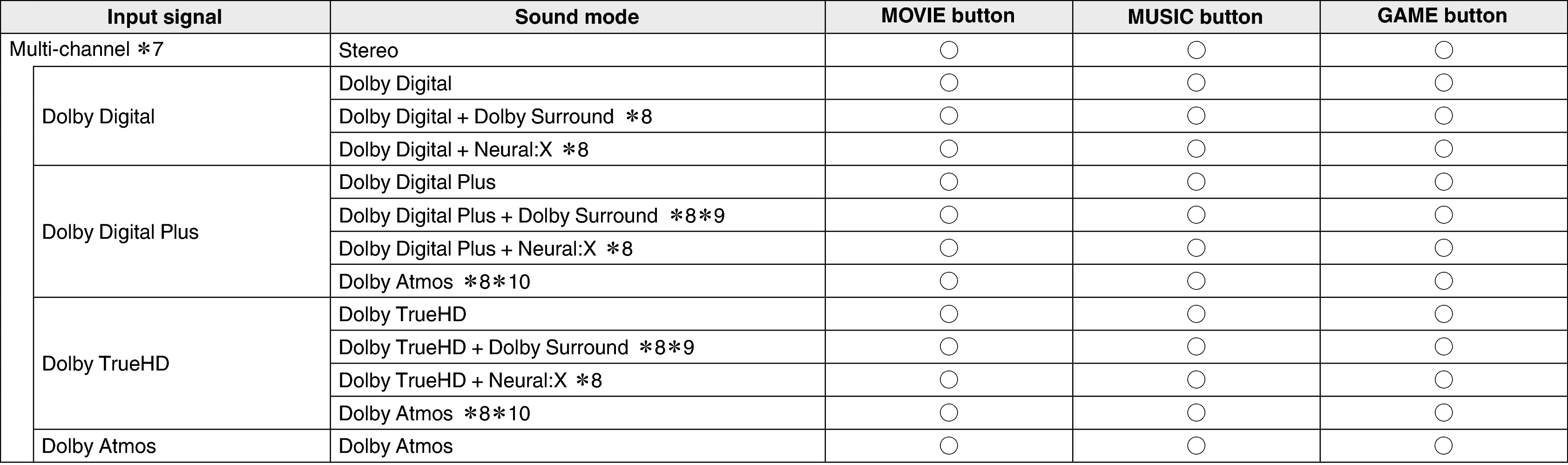

Pict Soundmode2 X47

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.

This cannot be selected when headphones are used.

This can be selected when the input signal does not contain Dolby Atmos.

This can be selected when the input signal contains Dolby Atmos.

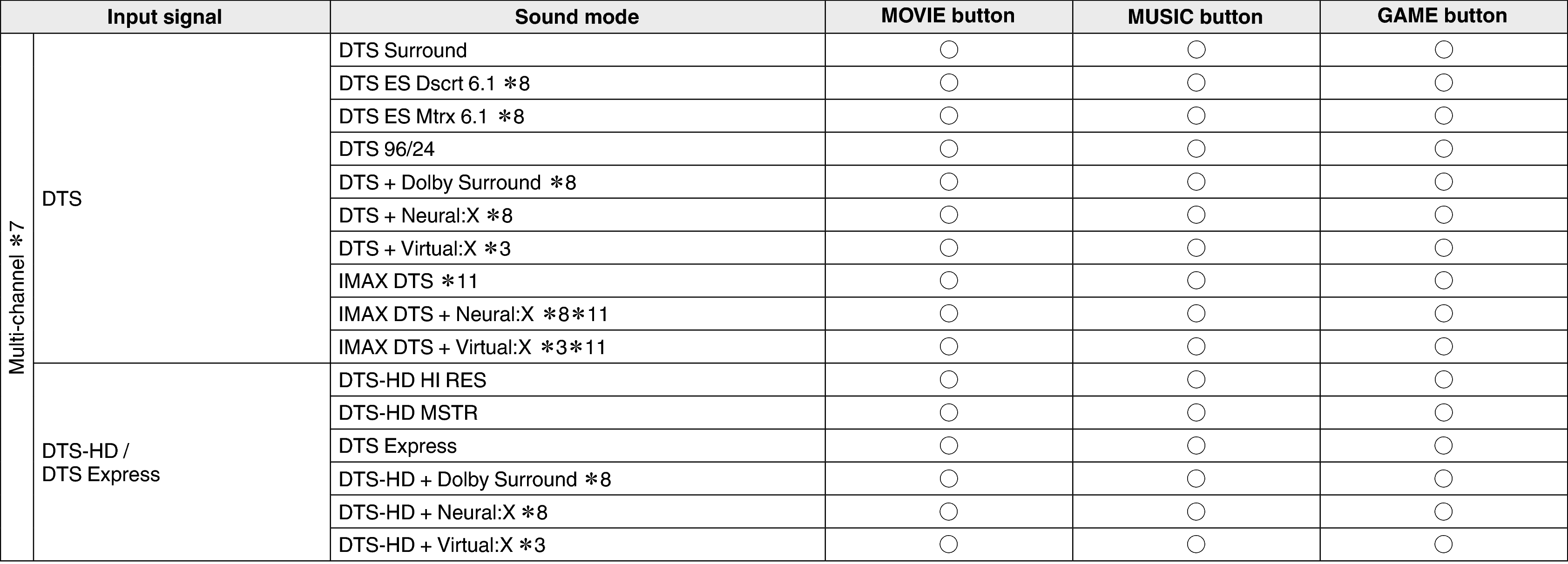

Pict Soundmode3 X47

It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.

This cannot be selected when headphones are used.

Selectable when “Surround Parameter” - “IMAX” is set to “On” in the menu and a 48 kHz sampling frequency DTS 5.1 channel signal is being input. link

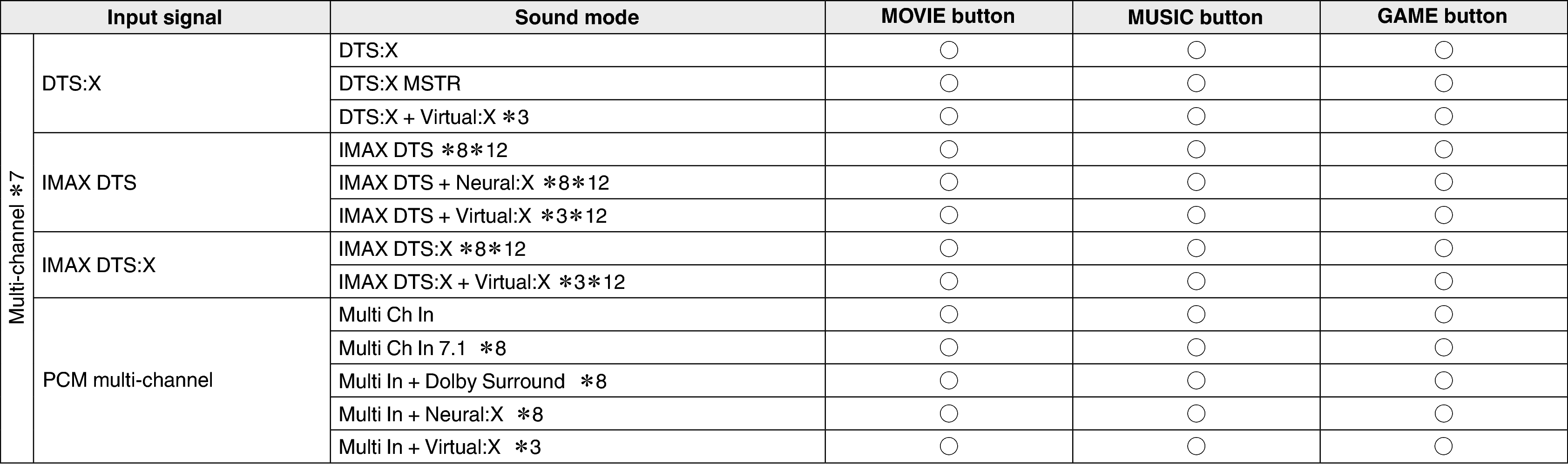

Pict Soundmode4 X47

It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.

This cannot be selected when headphones are used.

Selectable when “Surround Parameter” - “IMAX” is set to “Auto” in the menu. When “IMAX” is set to “Off”, playback is normal DTS or DTS:X. link

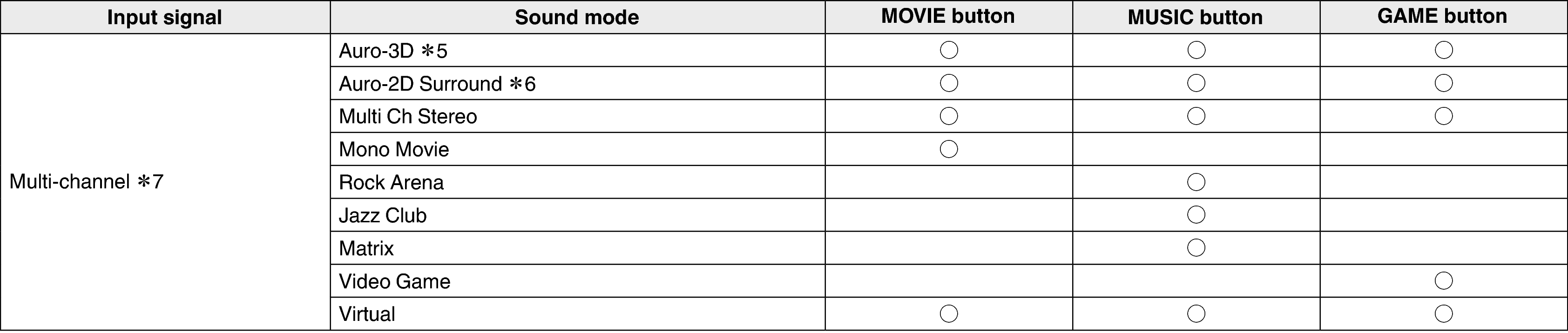

Pict Soundmode5 X47

It cannot be selected when headphones are used, or when a speaker configuration without front height or front Dolby Atmos Enabled speakers is used.

It cannot be selected when headphones are used, or when only front speakers are used.

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels.

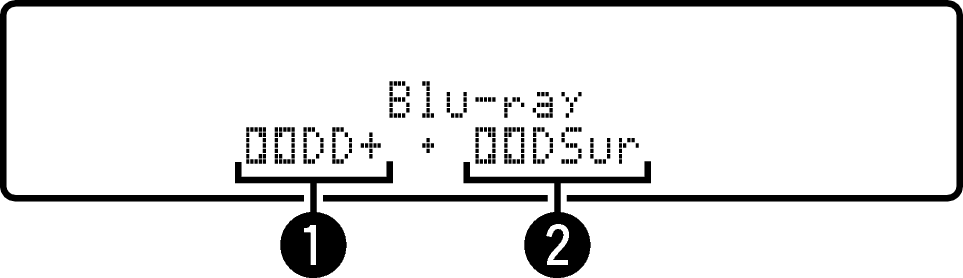

Views on the display

Disp DD Plus X45

Shows a decoder to be used.

In the case of the Dolby Digital Plus decoder, “ Icon DDDD Plus ” is displayed.

Shows a decoder that creates sound output.

Icon DDDSur ” indicates that the Dolby Surround decoder is being used.
