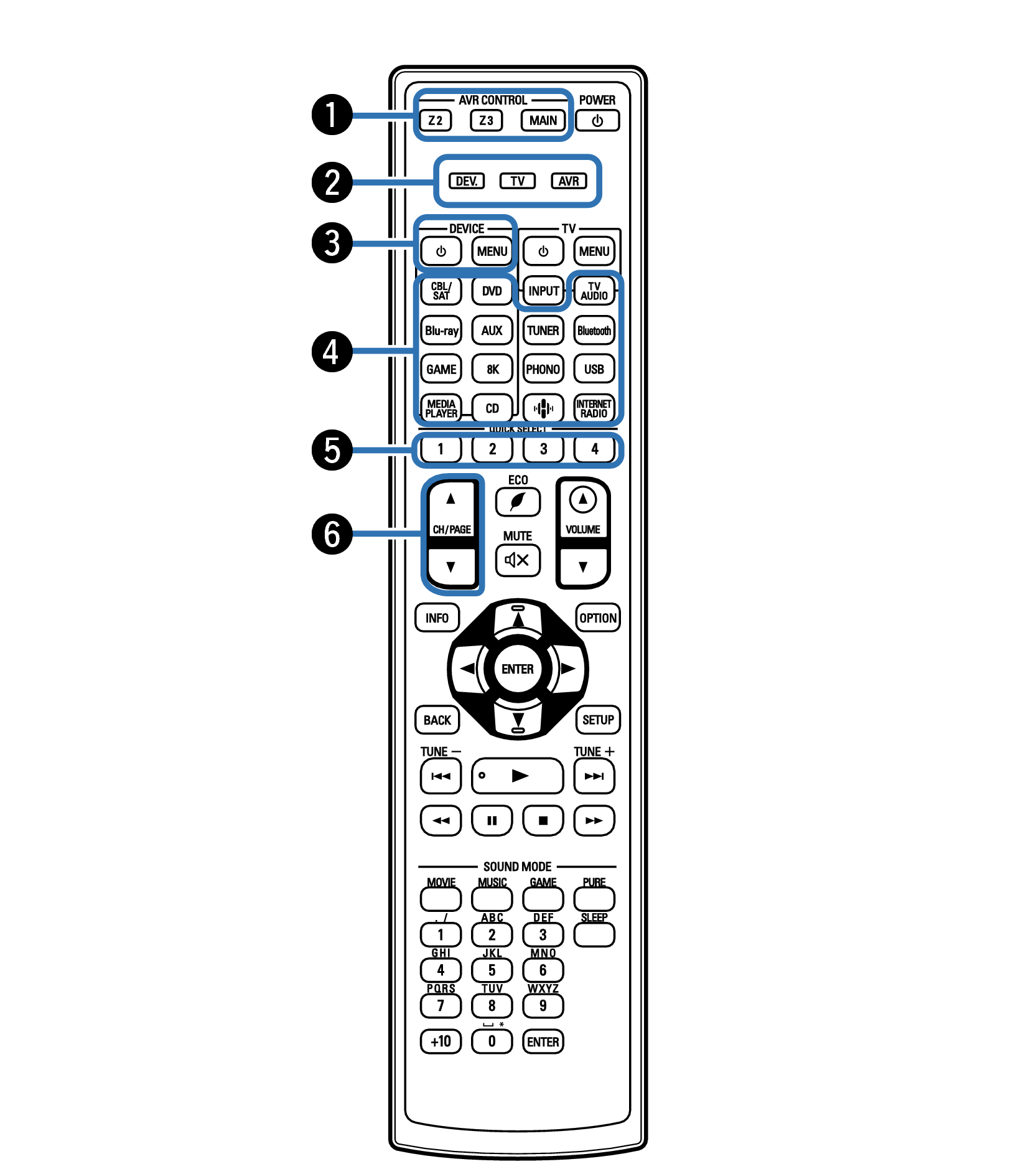

Remote control unit
AVR operation buttons (AVR CONTROL MAIN, Z2, Z3)
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.
Operation mode indicators
The “AVR” operation mode indicator lights when the unit is being operated.
The “DEV.” indicator lights when an external device is being operated.
The “TV” indicator lights when the TV is being operated.
Device operation buttons (DEVICE / DEVICE MENU)
These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link
Input source select buttons
These select the input source.
QUICK SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. link
Channel/page search buttons (CH/PAGE )
These switch pages. link

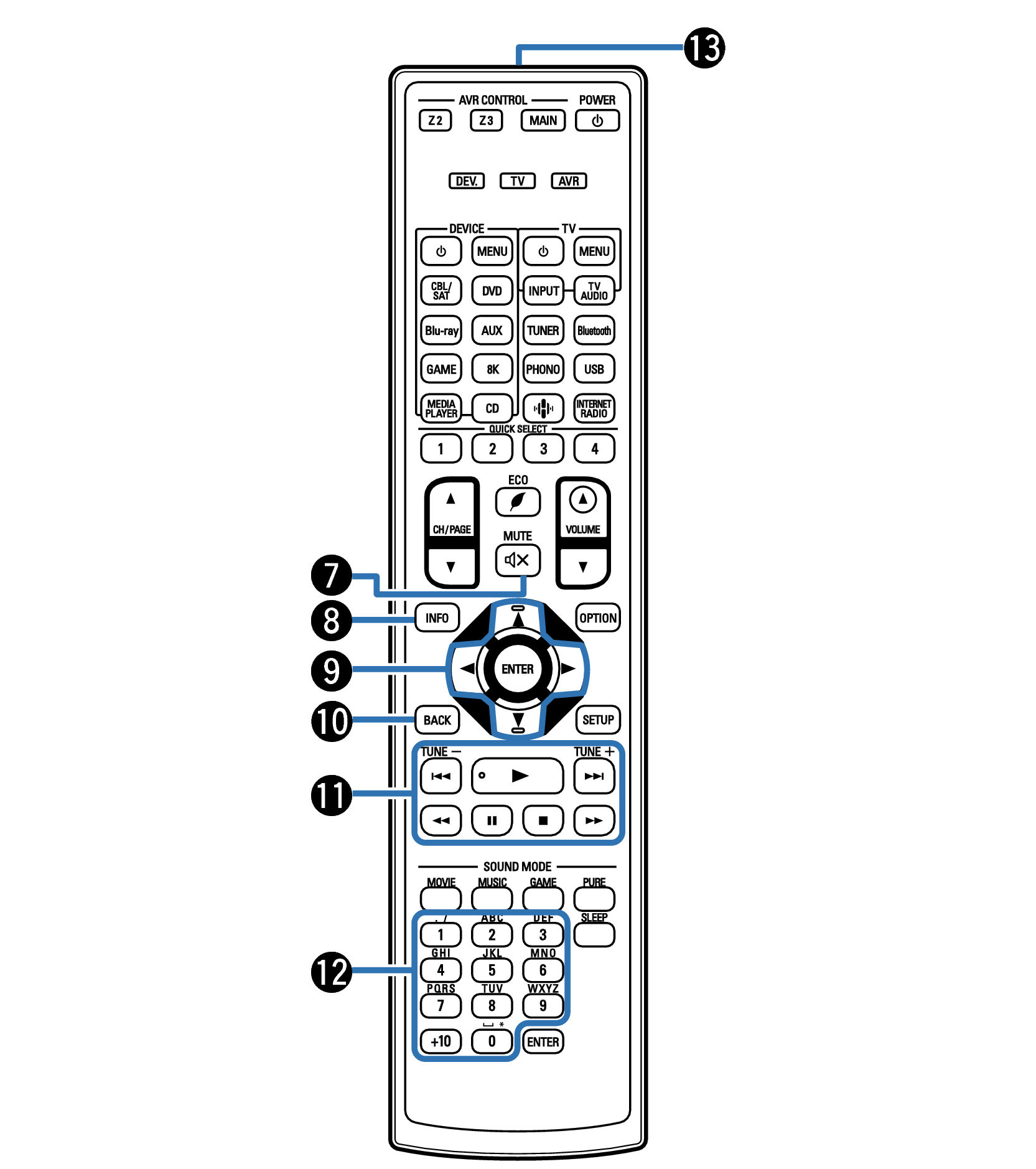

MUTE button ( )
This mutes the output audio.
Information button (INFO)
This displays the status information on the TV screen. link
Cursor buttons ( )
These select items.
This returns to the previous screen.
These perform playback related operations.
Number / Character buttons
These enter letters or numbers into the unit. link
Remote control signal transmitter
This transmits signals from the remote control unit. link

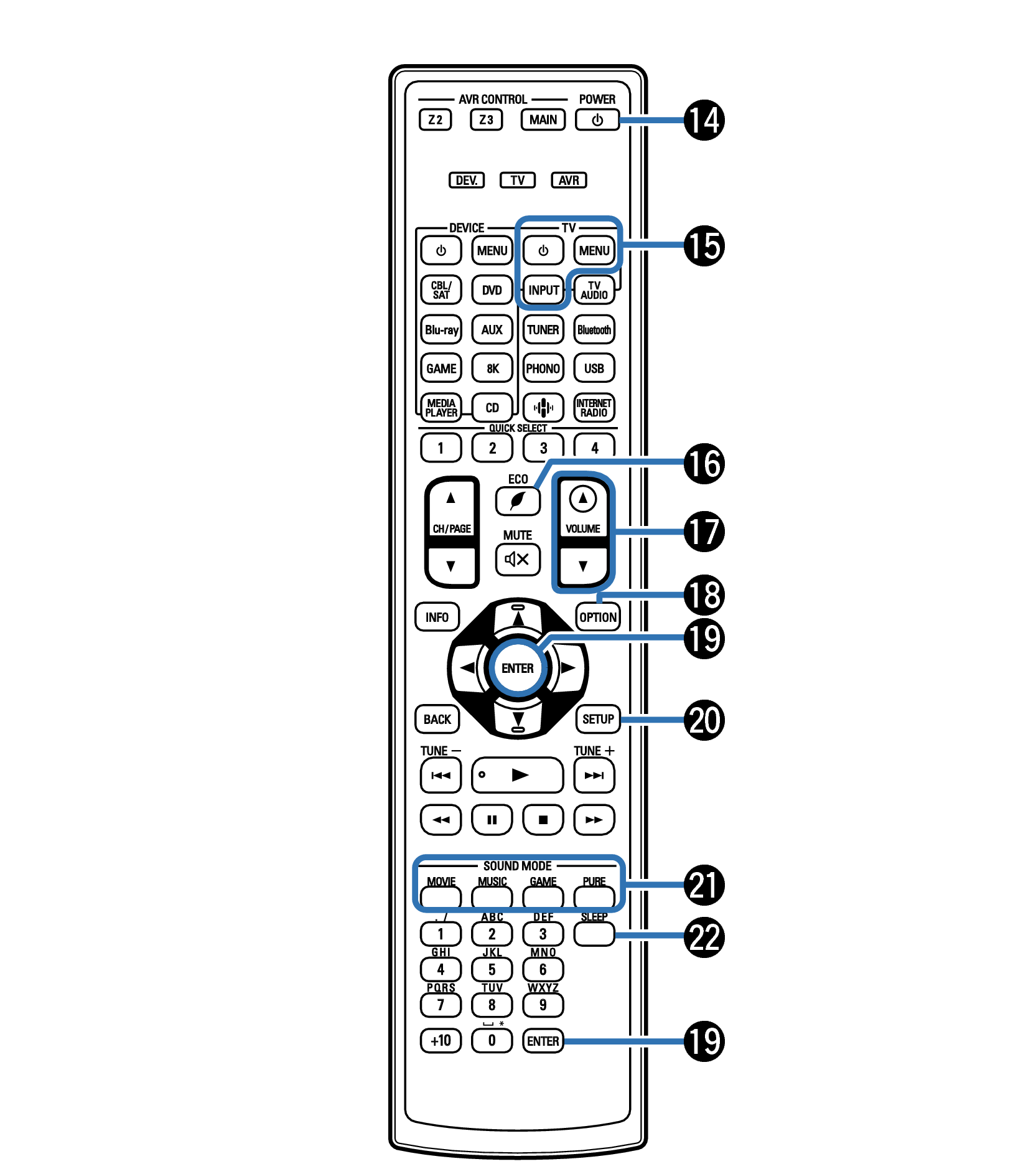

POWER button ( )
This turns the power on/off.
TV operation buttons (TV / TV MENU / TV INPUT)
These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link
ECO Mode button ( )
This switches to ECO Mode. link
VOLUME buttons ( )
These adjust the volume level.
This displays the option menu on the TV screen.
This determines the selection.
This displays the menu on the TV screen. link
SOUND MODE buttons
These select the sound mode. link
This sets the sleep timer. link
