TRIGGER OUT jacks

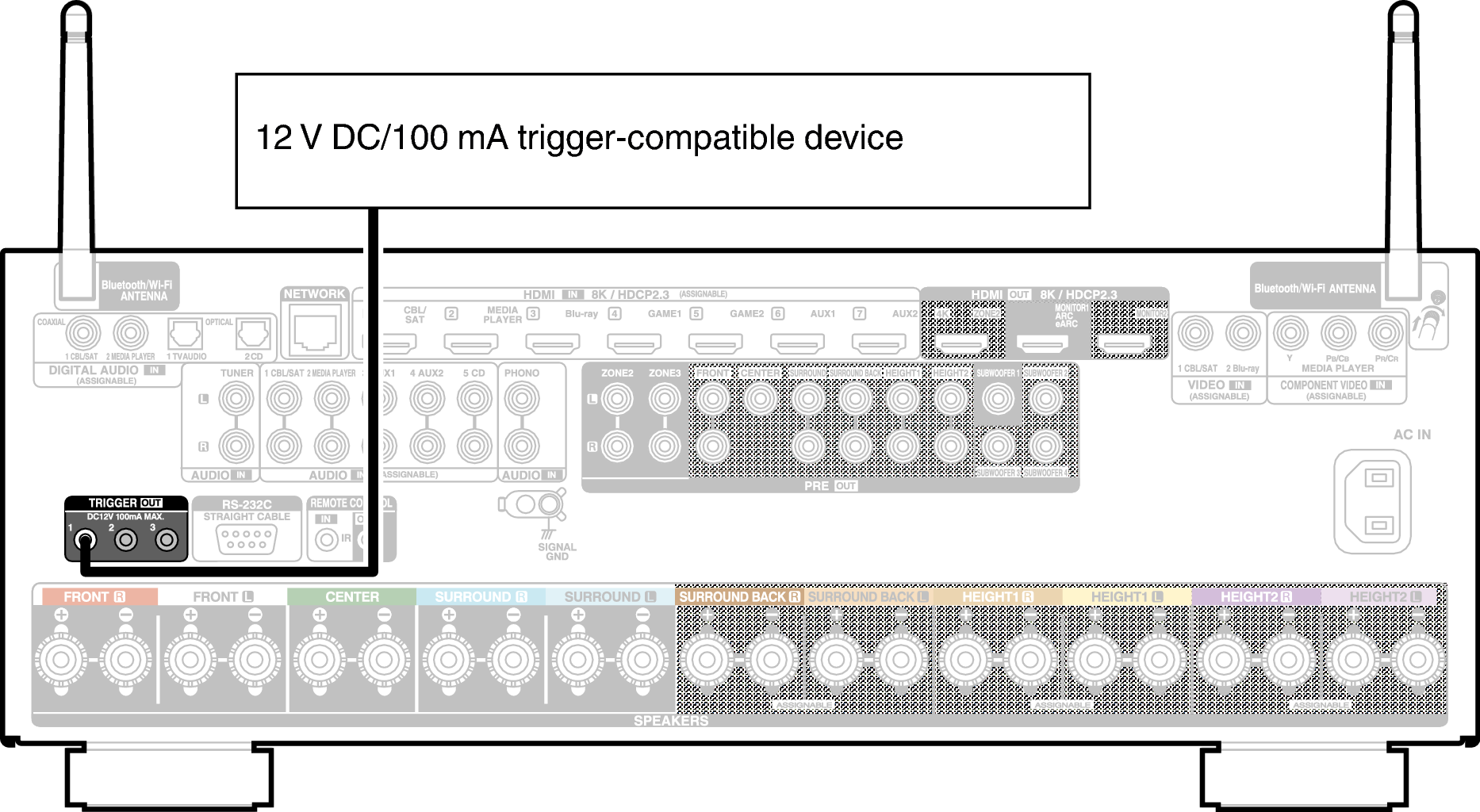

When a device with TRIGGER IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit.

A digital signal of a maximum of 12V DC/100mA (total 300mA) per jack will be output from the TRIGGER OUT jack.

Conne TRIGGER X48E2

NOTE

Use a monaural mini-plug cable for connecting the TRIGGER OUT jack. Do not use a stereo mini-plug cable.

If the permissible trigger input level for the connected device is larger than 12 V DC/100 mA, or has shorted, the TRIGGER OUT jack cannot be used. In this case, turn off the power to the unit, and disconnect it.
