Rear panel

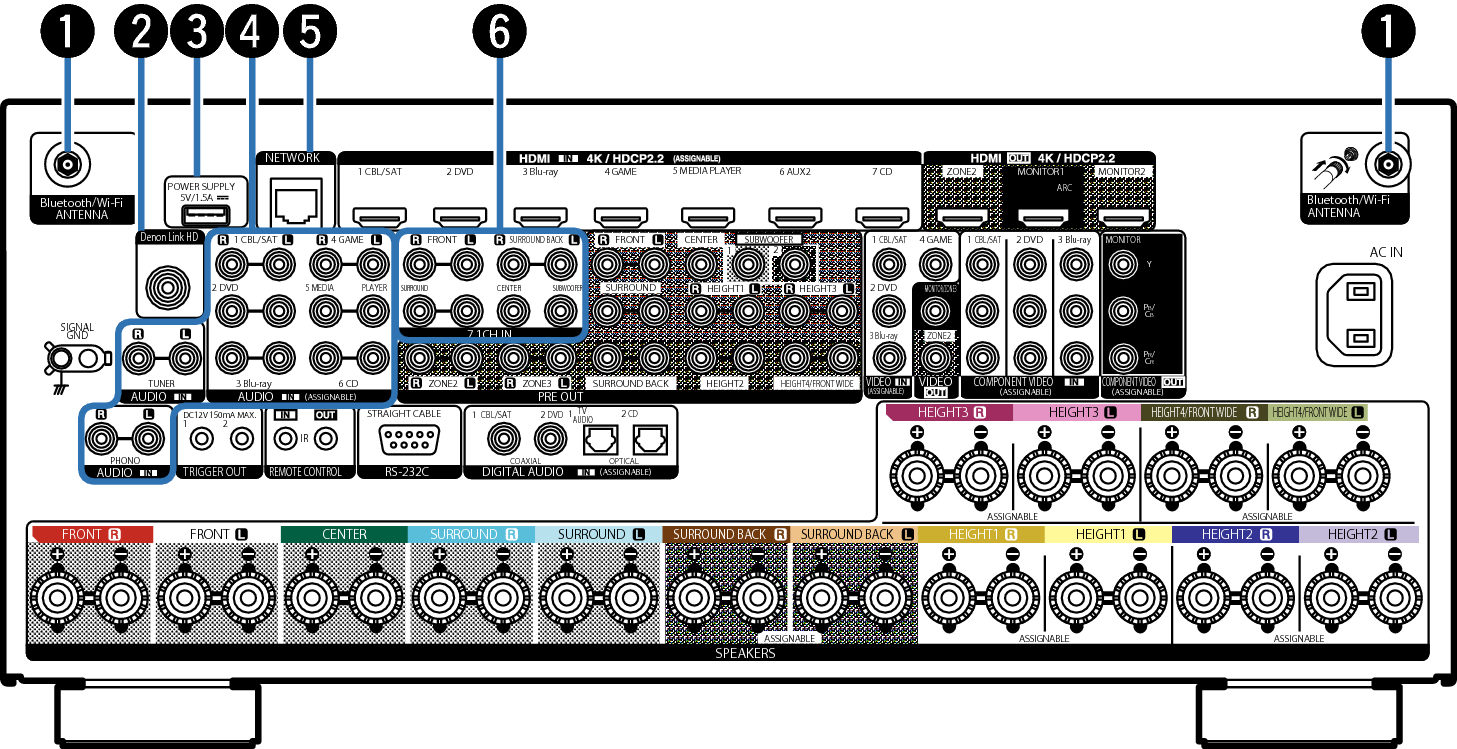

Name Rear Small1 X85E2

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

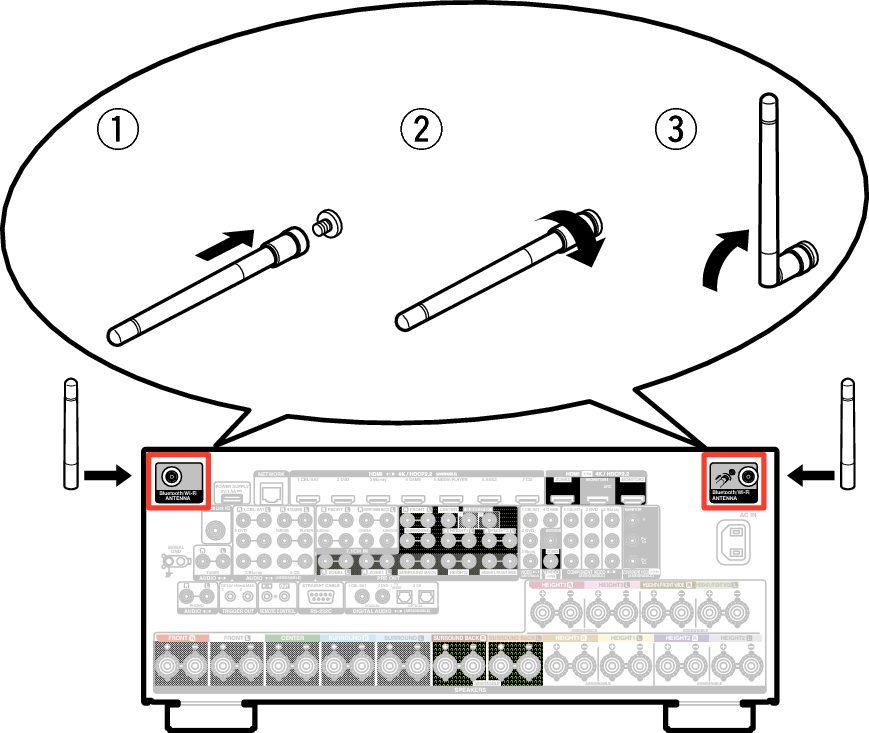

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle X85E2

Denon Link HD connector

Used to connect a Denon Link HD compatible Blu-ray Disc player. link

USB port (POWER SUPPLY)

Can be used to power streaming media players, etc.

Use a device’s supplied AC adapter when a power supply of 5 V/1.5 A or more is required.

Connect to the USB port on the front panel to play content from a USB memory device.

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

7.1-channel input connectors (7.1CH IN)

Used to connect to a device that has multi-channel audio output connectors. link

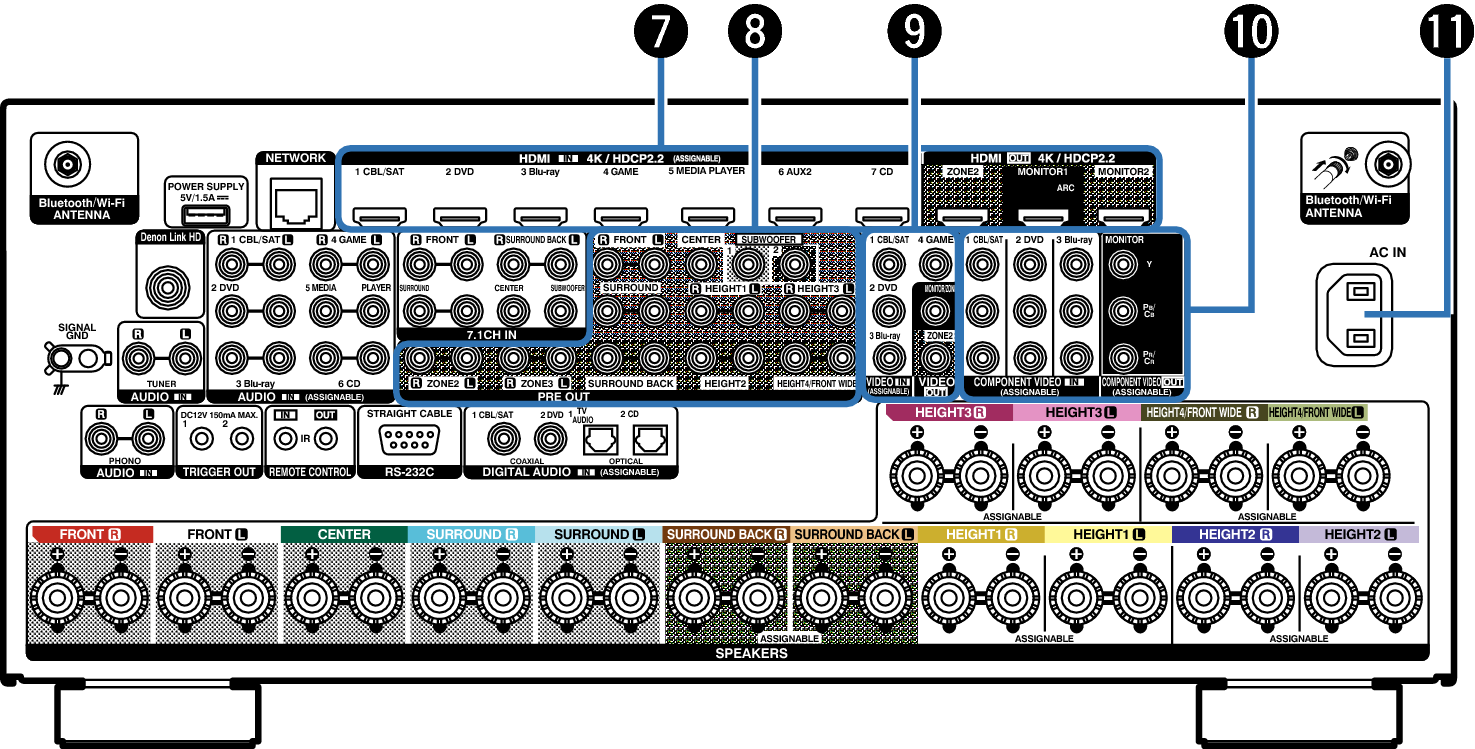

Name Rear Small2 X85E2

HDMI connectors

Used to connect devices equipped with HDMI connectors.

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or an external power amplifier.

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

Component video connectors (COMPONENT VIDEO)

Used to connect devices equipped with component video connectors.

AC inlet (AC IN)

Used to connect the power cord. link

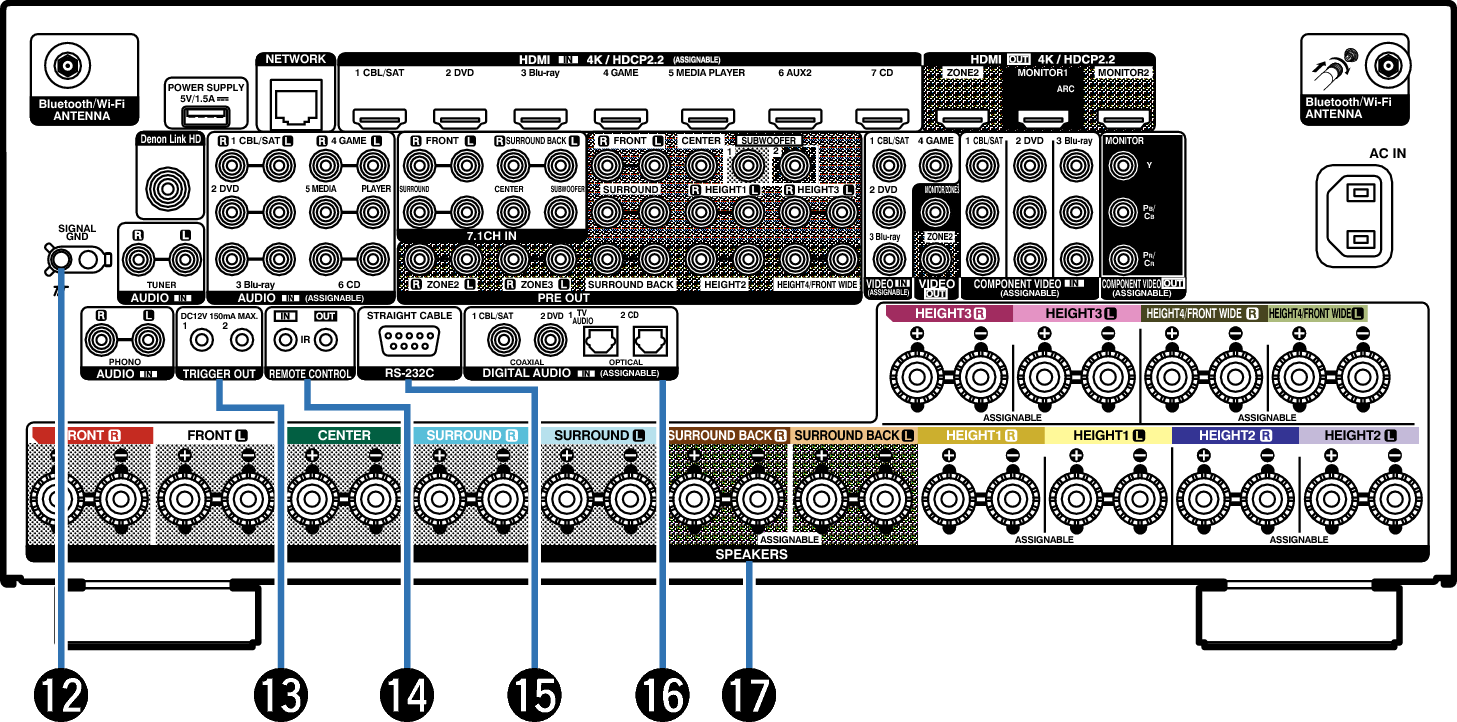

Name Rear Small3 X85E2

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

TRIGGER OUT jacks

Used to connect devices equipped with the trigger function. link

REMOTE CONTROL jacks

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link

RS-232C connector

Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.

Perform the operation below beforehand.

Turn on the power of this unit.
Turn off the power of this unit from the external controller.
Check that the unit is in the standby mode.

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

Speaker terminals (SPEAKERS)

Used to connect speakers. link

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
