Connecting 11.1-channel speakers: Second pair of front speakers

This system enables switching playback between front speakers A and B as desired.

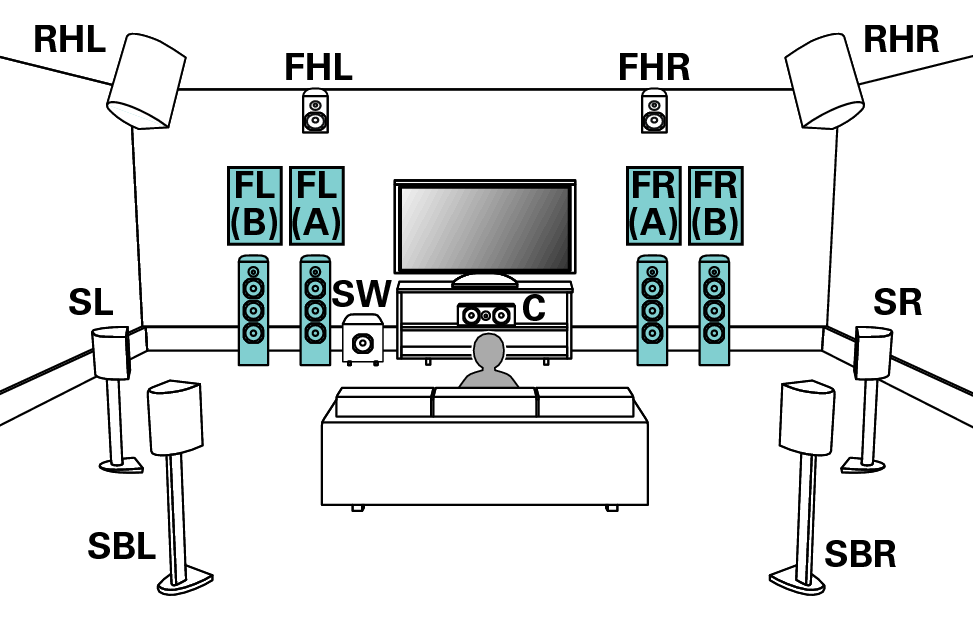

Pict SP Layout 11.1 FB

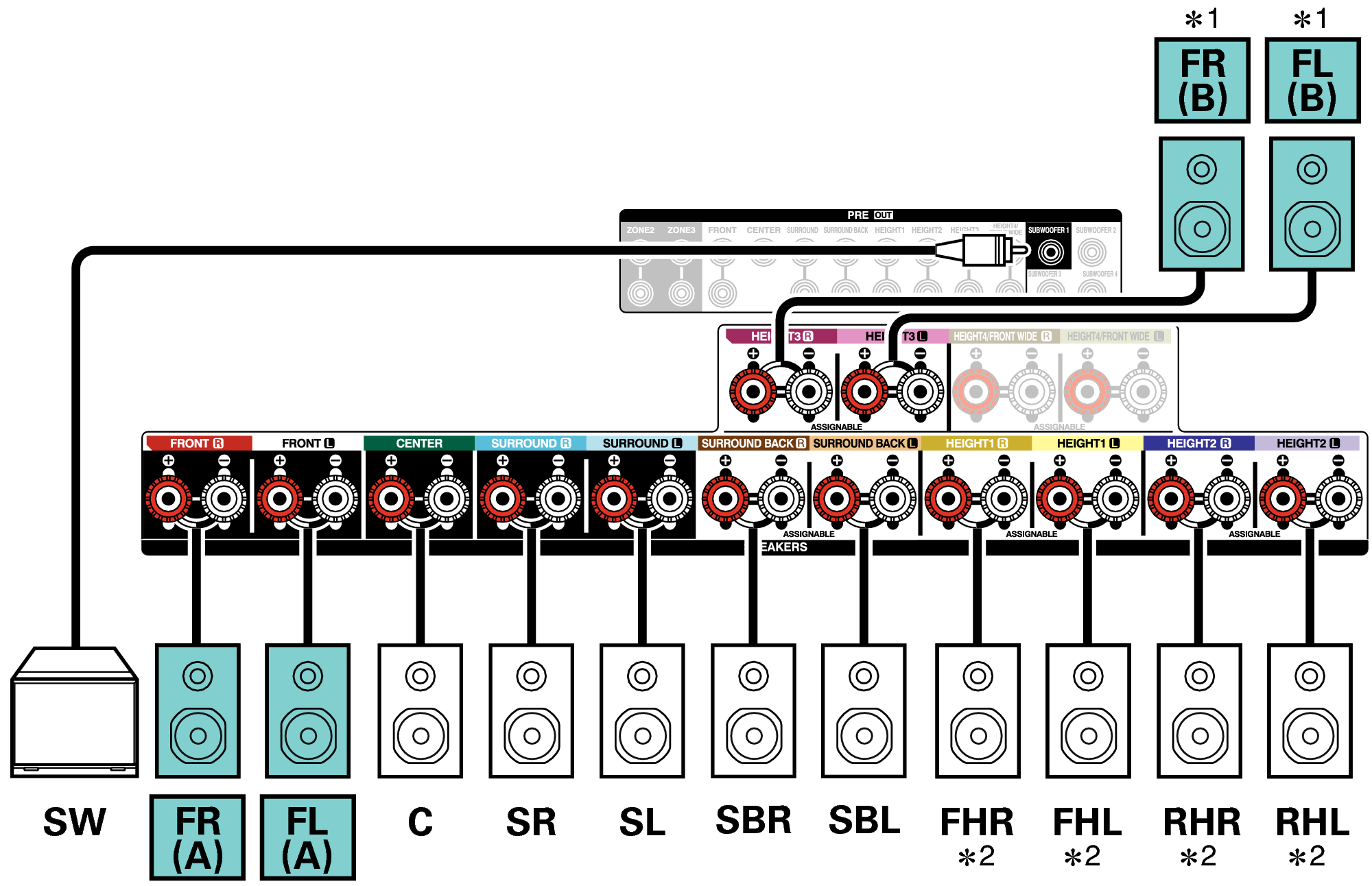

Conne SP 11.1 FB A10H

The terminals for second pair of front speakers vary depending on the MAIN ZONE layout. Refer to “Speaker Layout” in the menu. link

The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 and HEIGHT2 speaker terminals. Set the speaker to be connected from “Speaker Layout” in the menu. link
