Procedure for speaker settings (Auto Setup)
![Pict Audyssey Procedure](fig/Pict Audyssey Procedure_SEHFILmdnnwoaq.png)
When installing the Sound calibration microphone, point the tip of the microphone toward the ceiling and adjust the height to match the height of the ears of a listener in a seated position.
When using a subwoofer with a direct mode
Set the direct mode to “On” and disable the volume adjustment and crossover frequency setting.
When using a subwoofer without a direct mode
Make the following settings:
Volume : 12 o’clock position
Crossover frequency : Maximum/Highest Frequency
Low pass filter : Off
Standby mode : Off
![Ope SetupMIC S510E3](fig/Ope SetupMIC S510E3_JPLKILhbsxzwfw.png)

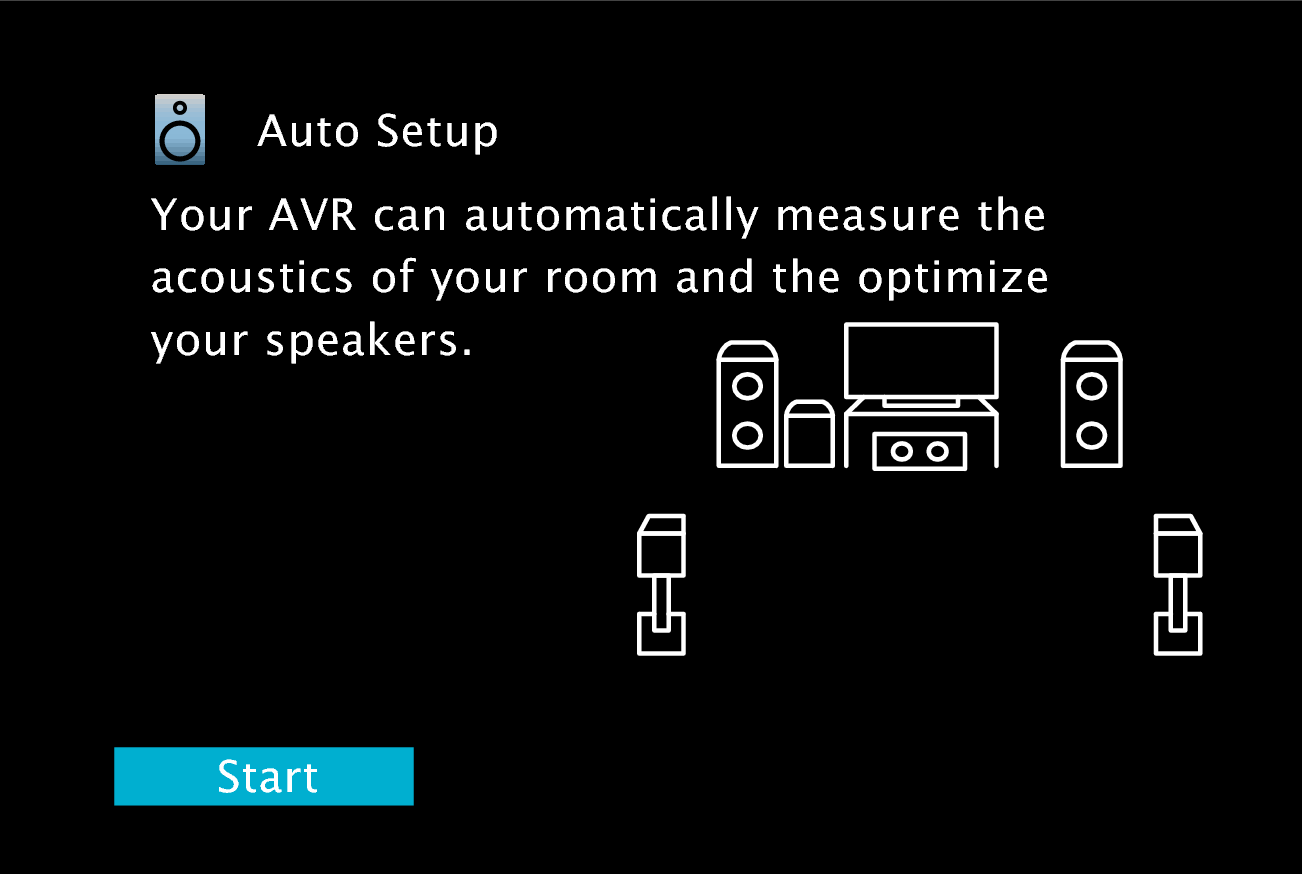

![GUI AutoSetup](fig/GUI AutoSetup_SEHFILewacfpkb.png)
Measurement requires several minutes.
If “Caution!” is displayed on TV screen:
Go to Error messageslink. Check any related items, and perform the necessary procedures.
To cancel Auto Setup
![White-Arrow-Left](fig/White-Arrow-Left_UJDCILtljdvqmp.png)
Do not change the speaker connection or subwoofer volume after “Auto Setup”. If these are changed, run “Auto Setup” again in order to configure the optimum equalizer settings.
