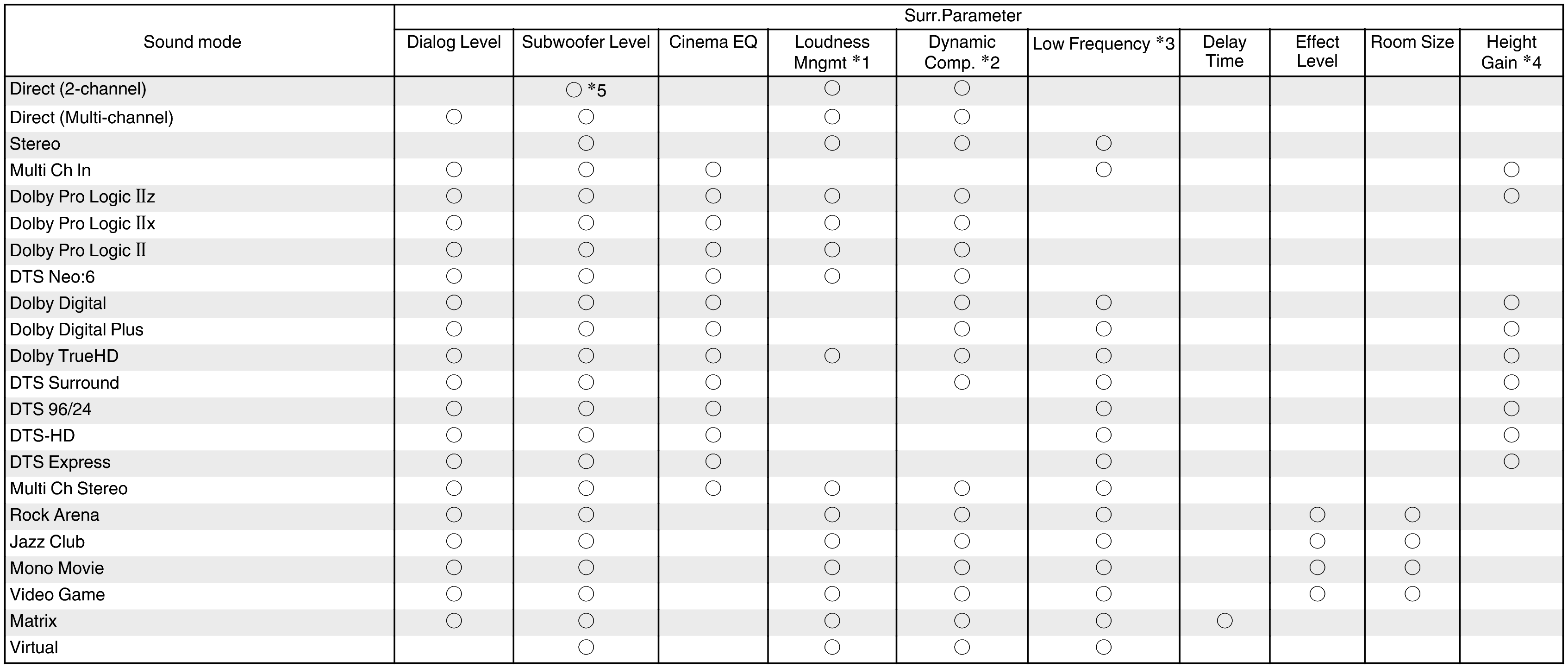

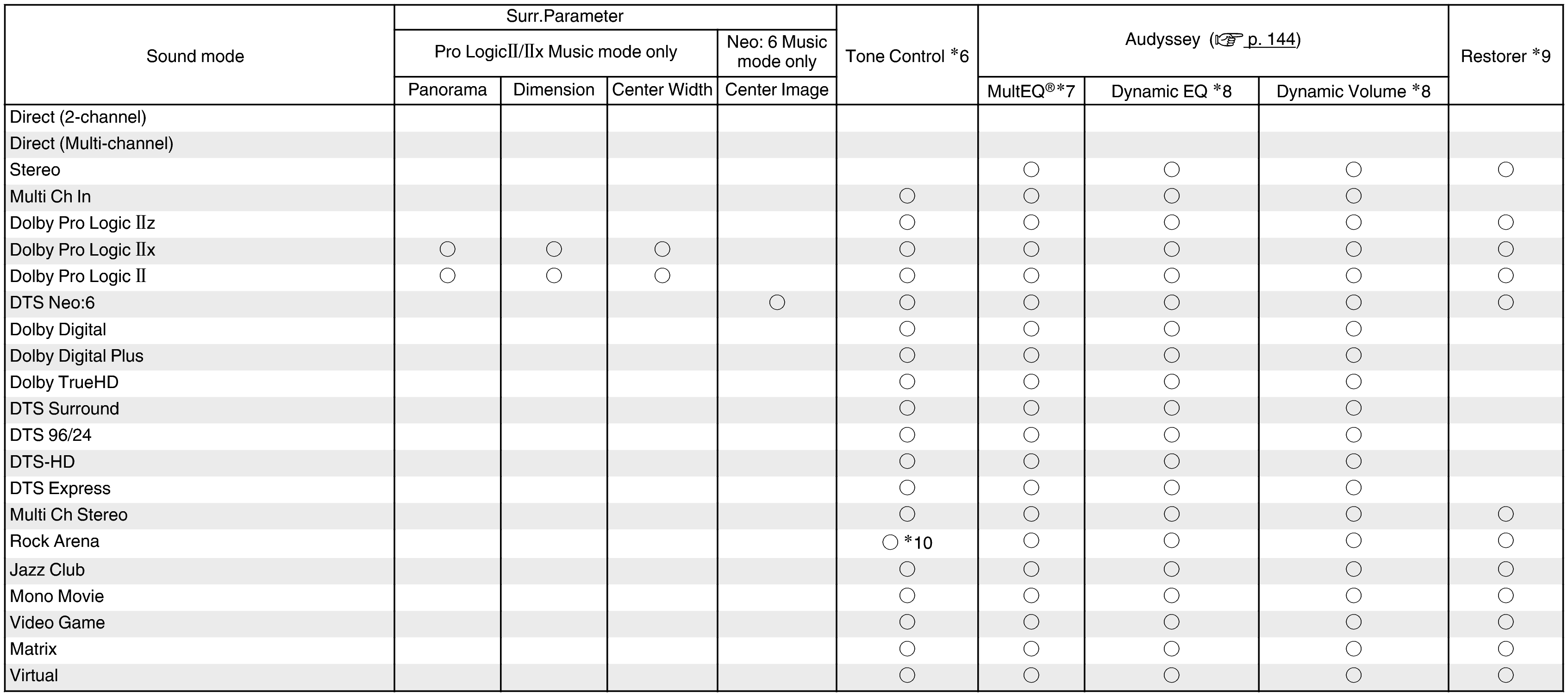

Sound modes and surround parameters

This item can be selected when a Dolby TrueHD signal is played.

This item can be selected when Dolby TrueHD, Dolby Digital or DTS signal is played.

This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.

This setting is available when the set sound mode name contains “+PL z”.

This setting is available when “Subwoofer Mode” in the menu is set to “LFE+Main”. link

This item cannot be set when “Dynamic EQ” is set to “On”. link

This item cannot be set when Audyssey_® Setup (Speaker Calibration) has not been performed.

This item cannot be set when “MultEQ_®” is set to “Off”. link

This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.

In this sound mode, bass is +6 dB, and treble is +4 dB. (Default)
