Playing back files stored on a PC and NAS

Use this procedure to play music files, image files or playlists.

Prepare for playback.
Check the network environment, then turn on this unit’s power. (Connecting to a home network (LAN)link)
Prepare the computer. ( Finger Computer’s operating instructions)
Press ONLINE MUSIC.

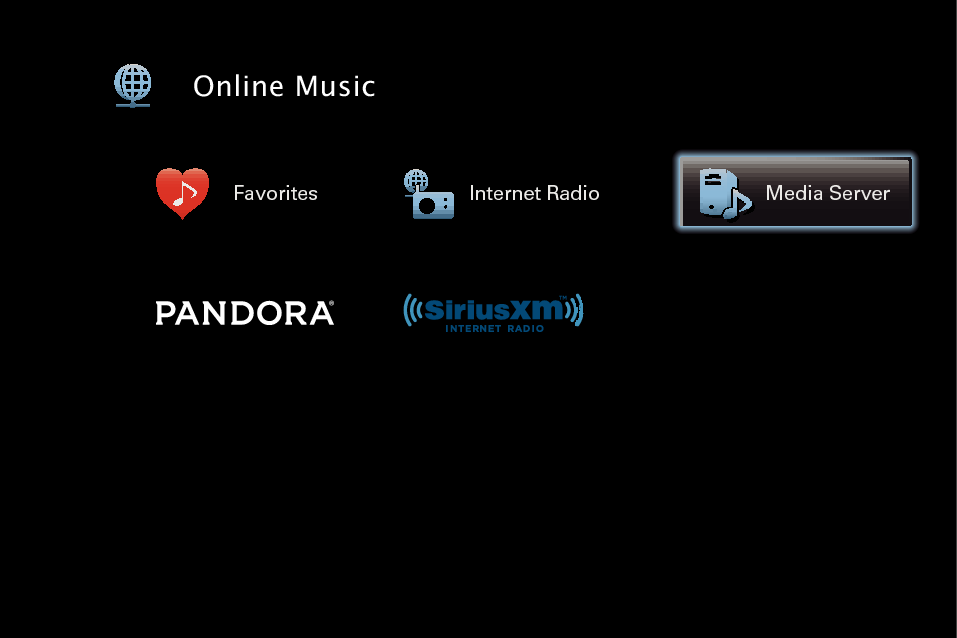

Use shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right to select “Media Server”, then press ENTER.
GUI MediaServer E3
Use shirosankaku shirosankaku-Reverse to select the server including the file to be played, then press ENTER.
Use shirosankaku-Reverse shirosankaku White-Arrow-Right to select the file, then press ENTER.

Playback starts once buffering reaches “100%”.

Operation buttons

Function

Operation buttons

Function

Triangle Right / Pause

Playback / Pause

Skip-Left Skip-Right

Skip to previous track / Skip to next track

(Press and hold) Fast-reverse / Fast-forward

ENTER

Playback / Pause

(Press and hold) Stop

shirosankaku shirosankaku-Reverse

Skip to previous track / Skip to next track

(Press and hold) Fast-reverse / Fast-forward

CH/PAGE  kurosankaku   Sankaku-Reverse

Switch to the previous page/next page in the list display

The display switches between track title, artist name, and album title each time the main unit’s STATUS is pressed.

When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album art data, the album art can be displayed while the music files are playing.

If you use Ver.11 or later of Windows Media Player, the album art for WMA files can be displayed.

WMA Lossless files can be played when using a server supporting transcoding, such as Windows Media Player (Ver.11 or later).

This unit plays back picture (JPEG) files in the order in which they are stored in the folder.

NOTE

When playing back music files with your PC or NAS connected through wireless LAN, audio may be interrupted depending on your wireless LAN environment. In this case, connect using a wired LAN.

Depending on the size of the still picture (JPEG) file, some time may be required for the file to be displayed.

The order in which the tracks/files are displayed depends on the server specifications. If the tracks/files are not displayed in alphabetical order due to the server specifications, searching by the first letter may not work properly.

Operations accessible through the option menu
