Speaker configuration and “Amp Assign” settings
This unit has a built-in 7-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 5.1-channel systems and 2-channel systems for multi-zone playback. link
Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. link
Playback speaker and zone |
“Amp Assign” settings |
Connection page |
|
---|---|---|---|
MAIN ZONE |
ZONE2 |
||
5.1-channel |
Not used |
Can be set in all “Amp Assign” modes. |
|
7.1-channel (surround back) |
Not used |
Surround Back |
|
7.1-channel (front height) |
Not used |
Front Height |
|
7.1-channel (top front) |
Not used |
Top Front |
|
7.1-channel (top middle) |
Not used |
Top Middle |
|
7.1-channel (front Dolby Atmos Enabled speaker) |
Not used |
Front Dolby |
|
7.1-channel (surround Dolby Atmos Enabled speaker) |
Not used |
Surround Dolby |
|
5.1-channel |
2-channel |
ZONE2 (Default) |
The sound mode that can be selected varies according to the speaker configuration. See “Relationship between sound modes and channel output” link for the sound modes that are supported.

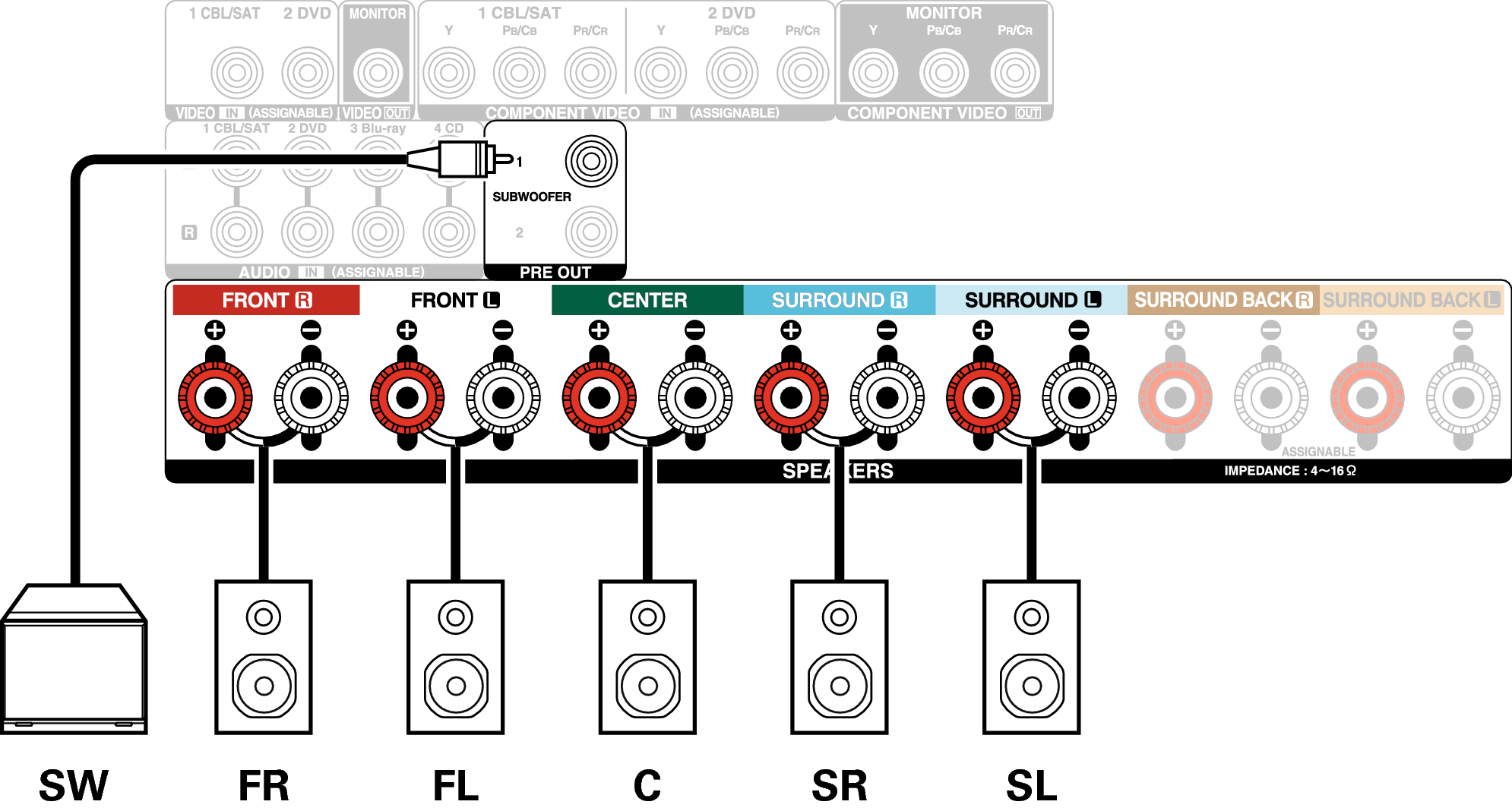

5.1-channel playback
This serves as a basic 5.1-channel surround system.


7.1-channel playback
System for 7.1-channel surround playback.

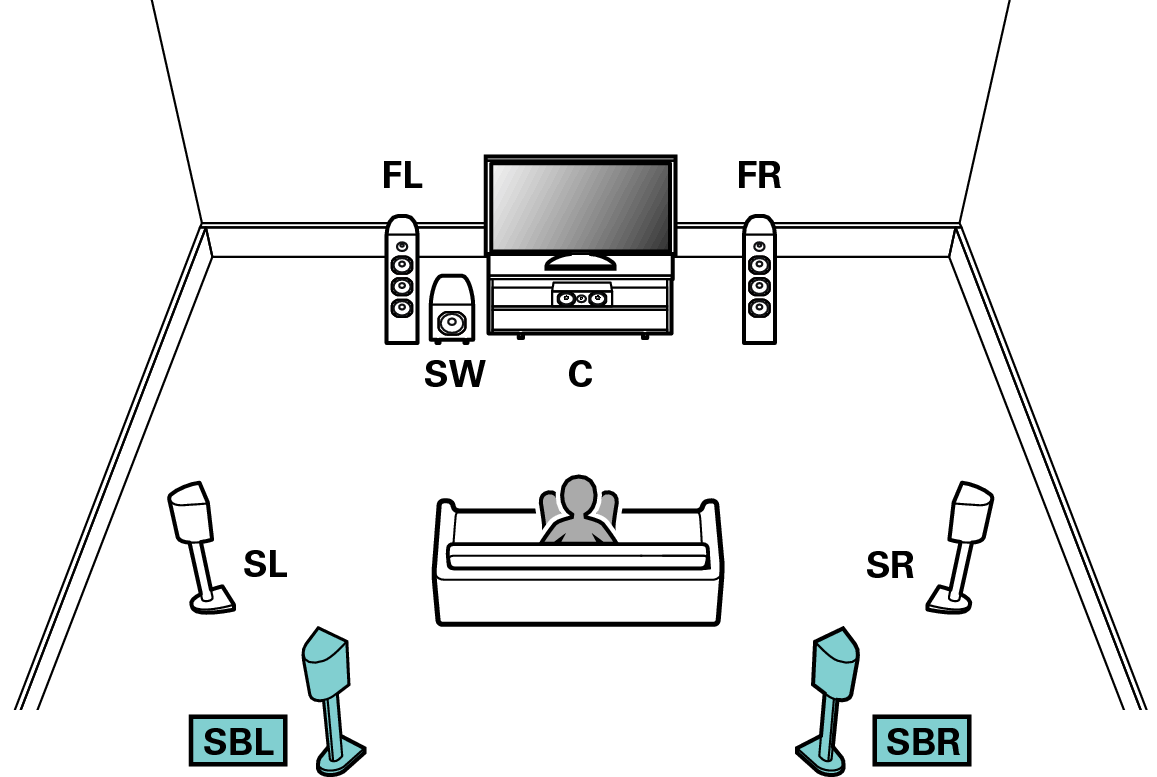

Example connections when using surround back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

Set “Assign Mode” to “Surround Back” in the menu. link

When using a single surround back speaker, connect it to the SURROUND BACK L terminal.
Example connections when using front height speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

Set “Assign Mode” to “Front Height” in the menu. link

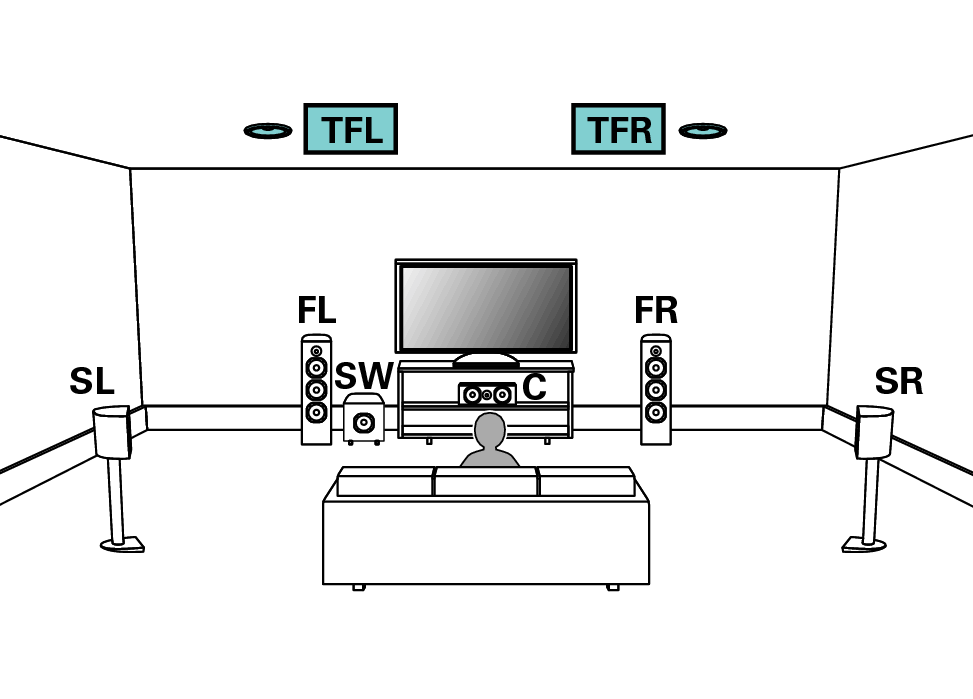

Example connections when using top front speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with top front speakers.

Set “Assign Mode” to “Top Front” in the menu. link

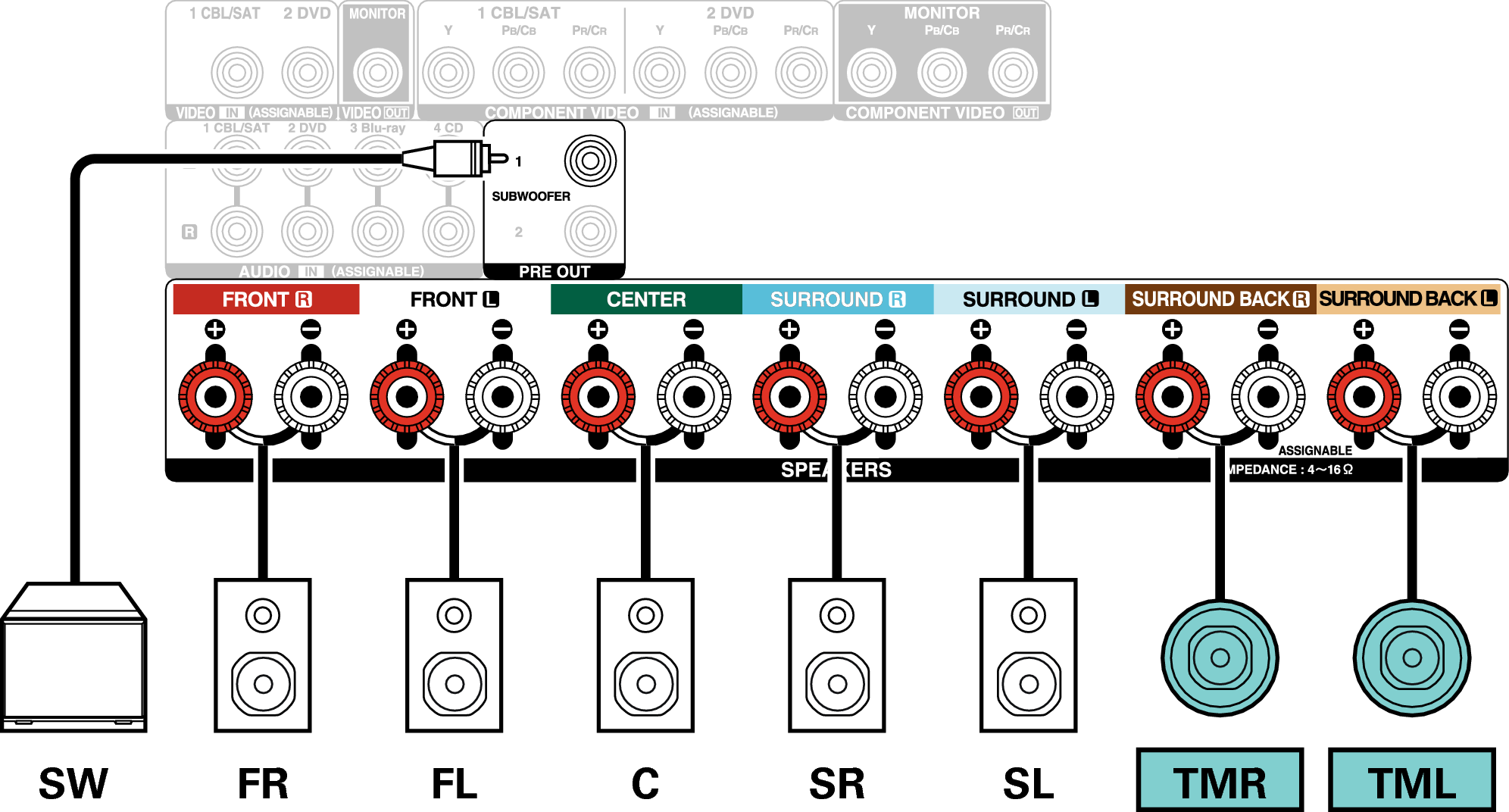

Example connections when using top middle speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with top middle speakers.

Set “Assign Mode” to “Top Middle” in the menu. link

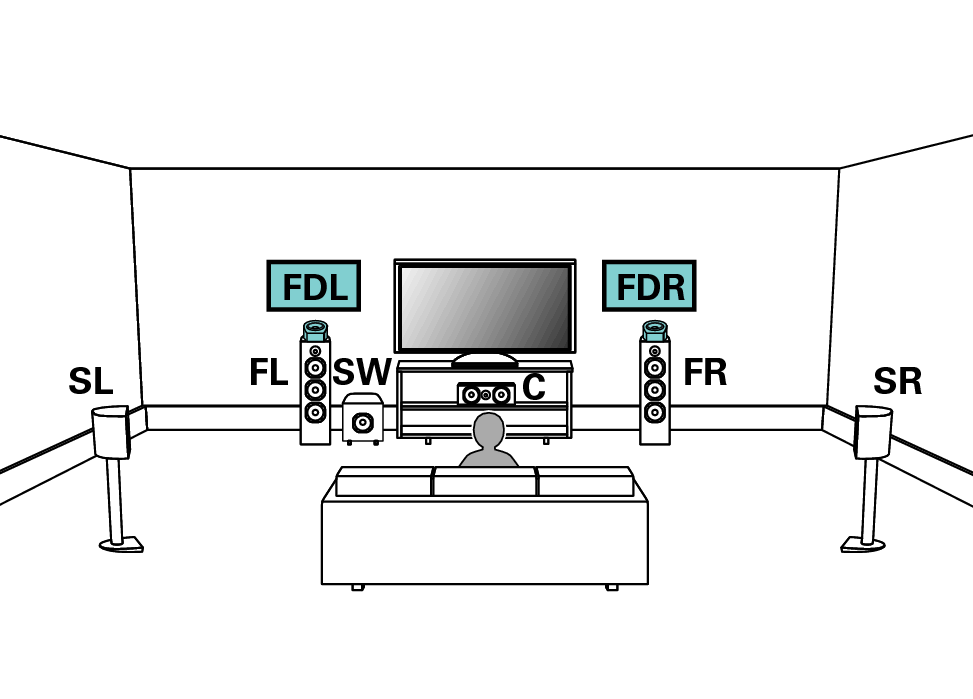

Example connections when using front Dolby Atmos Enabled speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby Atmos Enabled speakers.

Set “Assign Mode” to “Front Dolby” in the menu. link

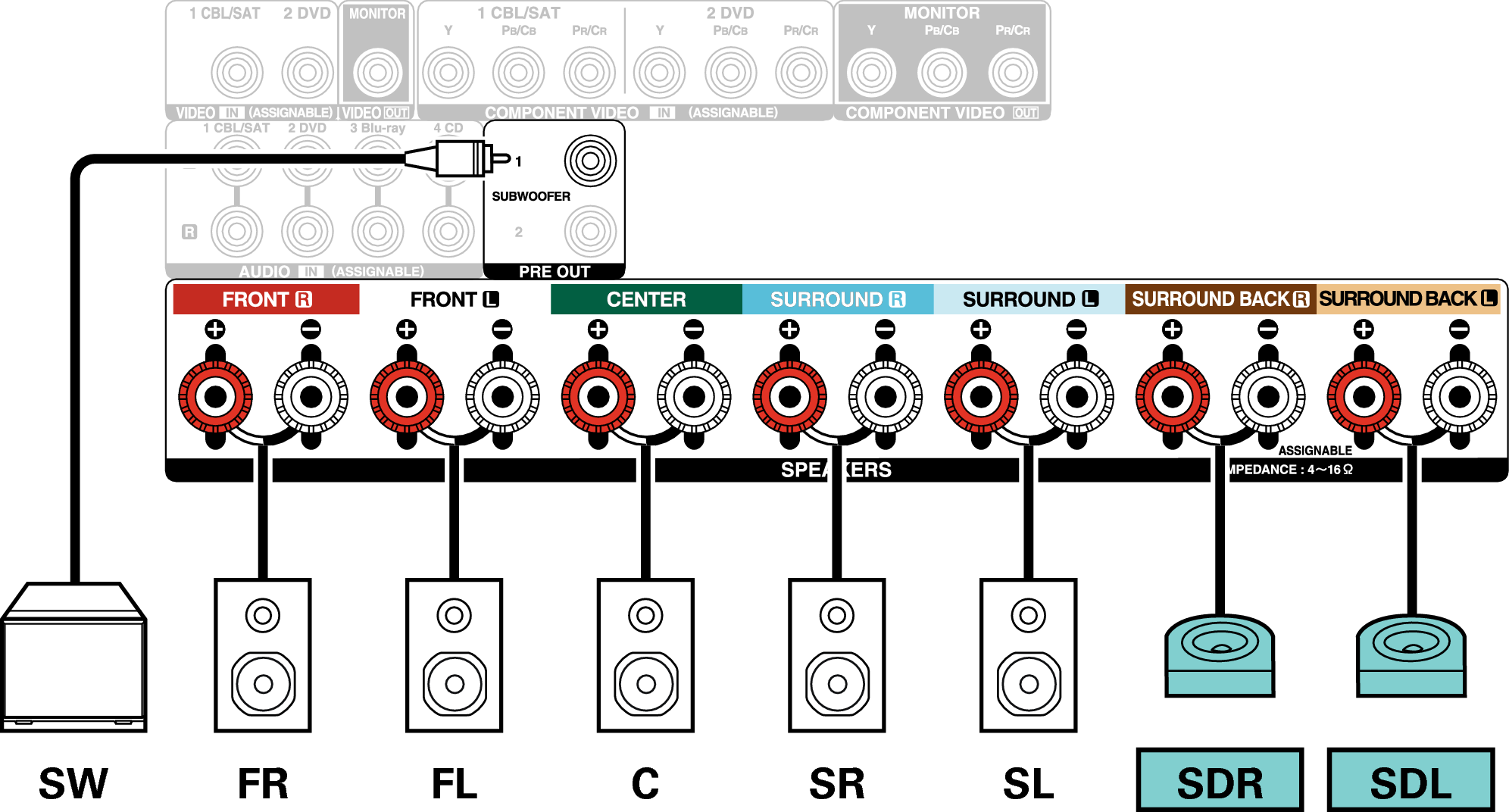

Example connections when using surround Dolby Atmos Enabled speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround Dolby Atmos Enabled speakers.

Set “Assign Mode” to “Surround Dolby” in the menu. link

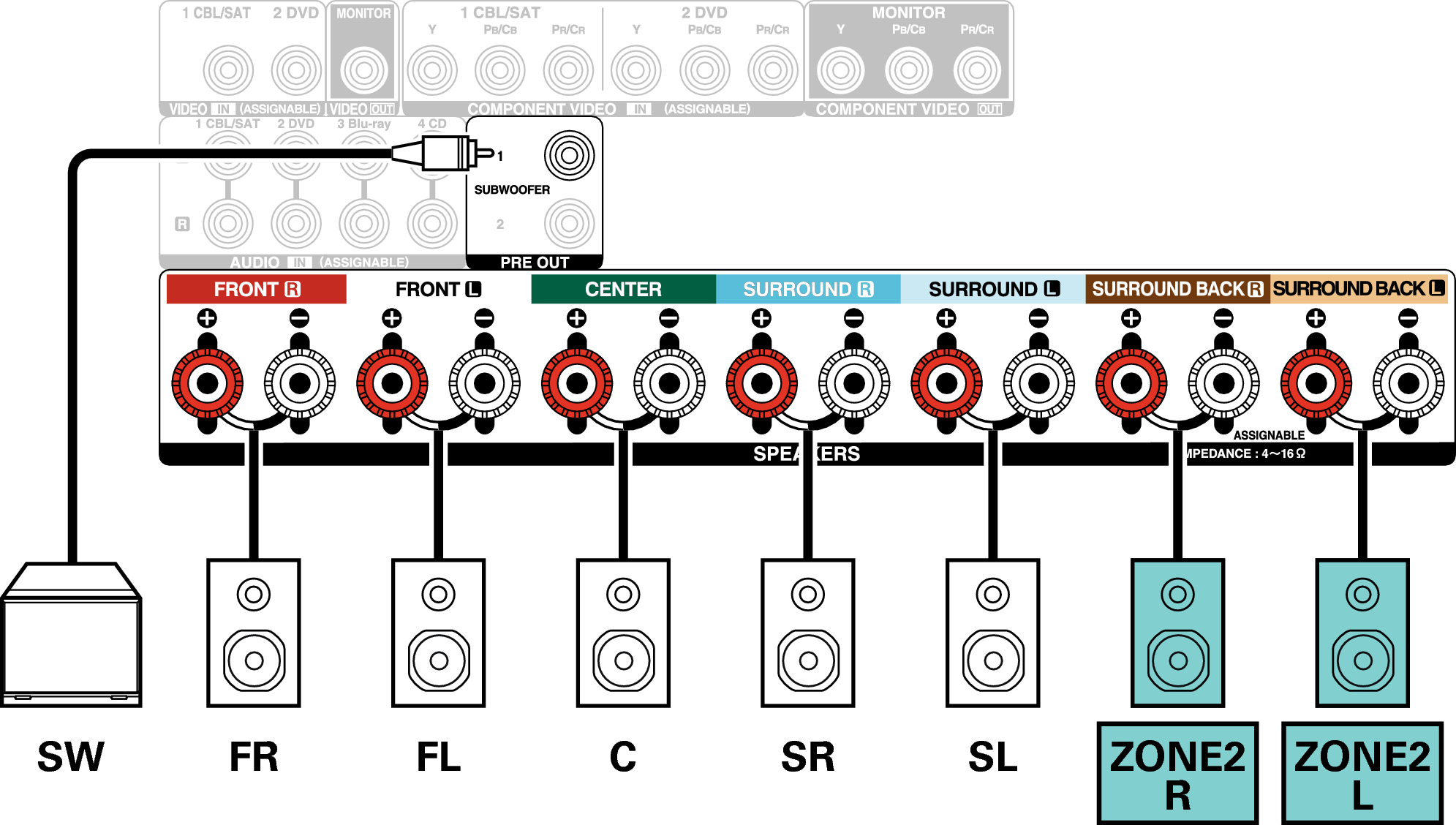

5.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2)
This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.
MAIN ZONE |
![]() |
ZONE2 |
![]() |

Set “Assign Mode” to “ZONE2” in the menu. link
