Rear panel

For details, see the next page.

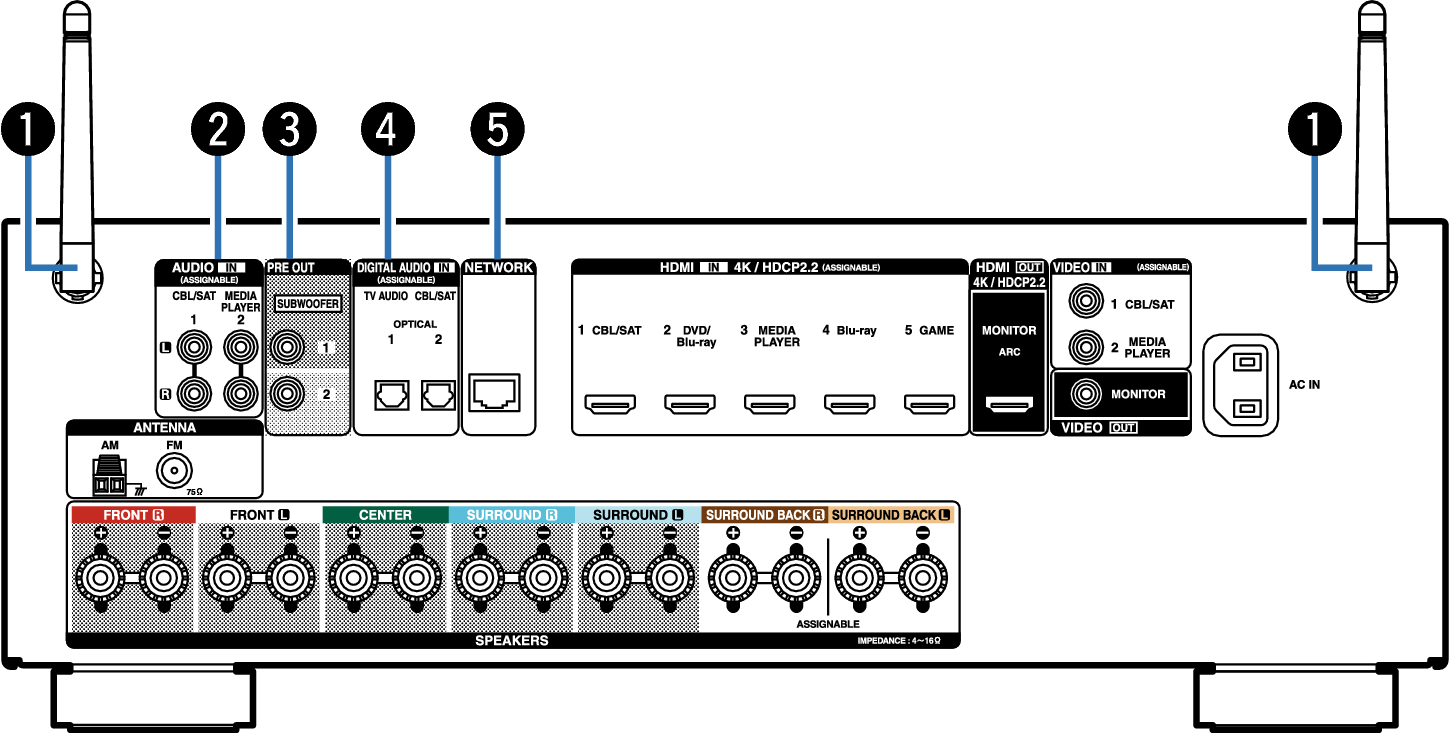

Name Rear Small1 X1300E2

Rod antennas for Bluetooth/wireless LAN

Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

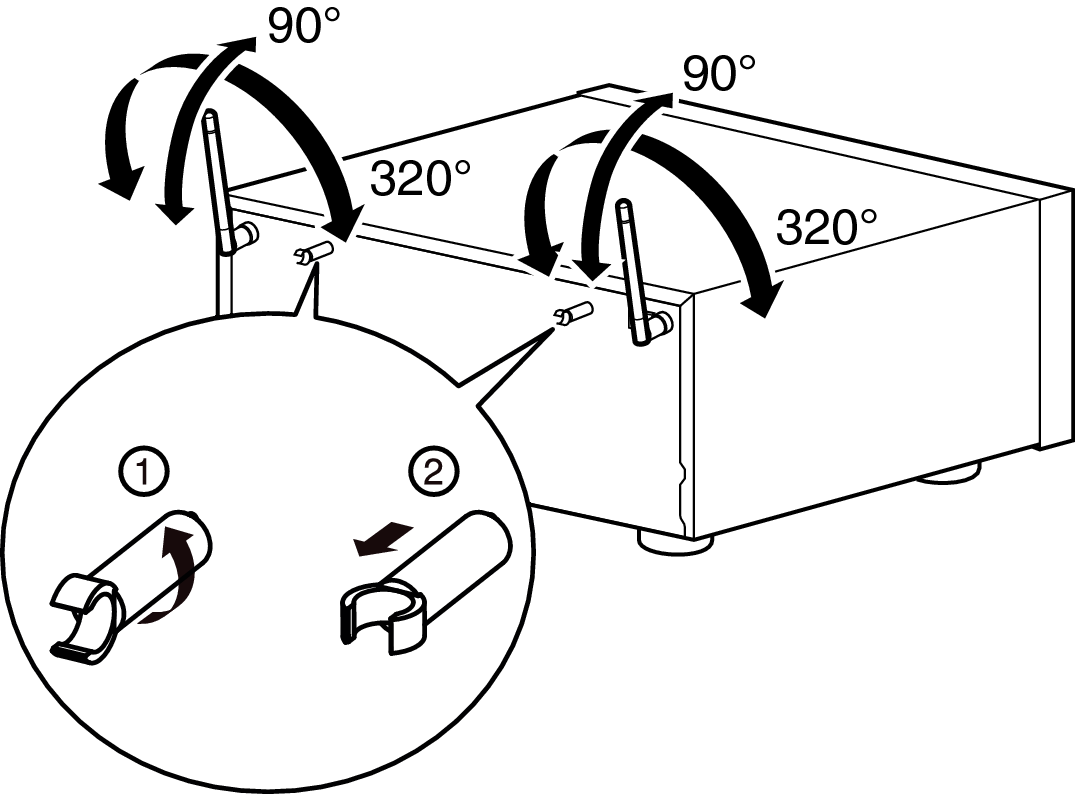

Pict AntennaAngle

The antenna clip can be removed from the rear panel.

Rotate the antenna clip 90 degrees to the left.
Pull the antenna clip out towards yourself.

The antenna clip is needed when transporting this unit. Keep it in a safe place.

Attach the antenna clip by following the steps for removing it in reverse.

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors. link

PRE OUT connectors

Used to connect a subwoofer with a built-in amplifier. link

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

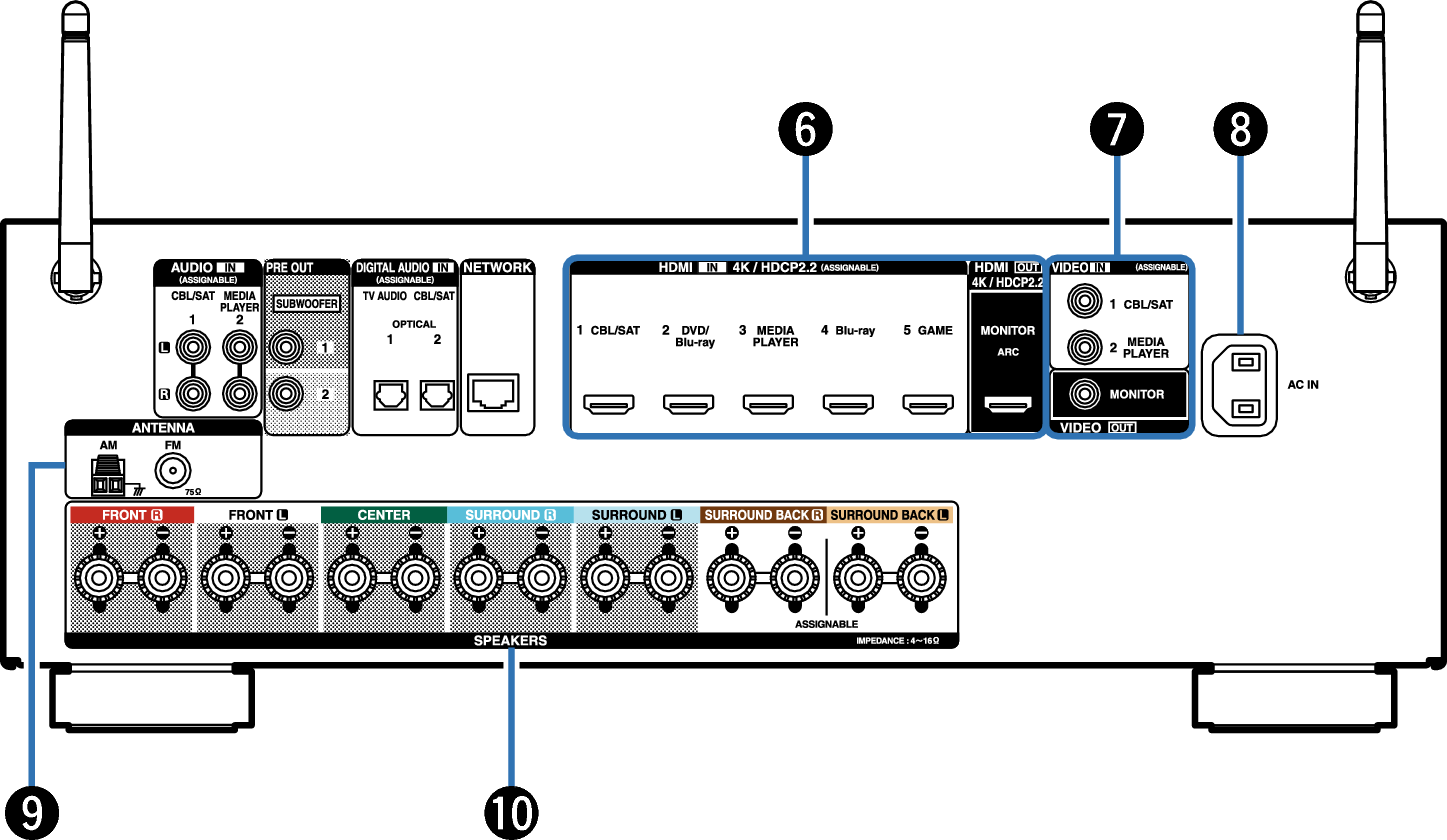

Name Rear Small2 X1300E2

HDMI connectors

Used to connect devices equipped with HDMI connectors.

Video connectors (VIDEO)

Used to connect devices equipped with video connectors.

AC inlet (AC IN)

Used to connect the power cord. link

FM/AM antenna terminals (ANTENNA)

Used to connect FM antennas and AM loop antennas. link

Speaker terminals (SPEAKERS)

Used to connect speakers. link


Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
