Connecting ZONE2

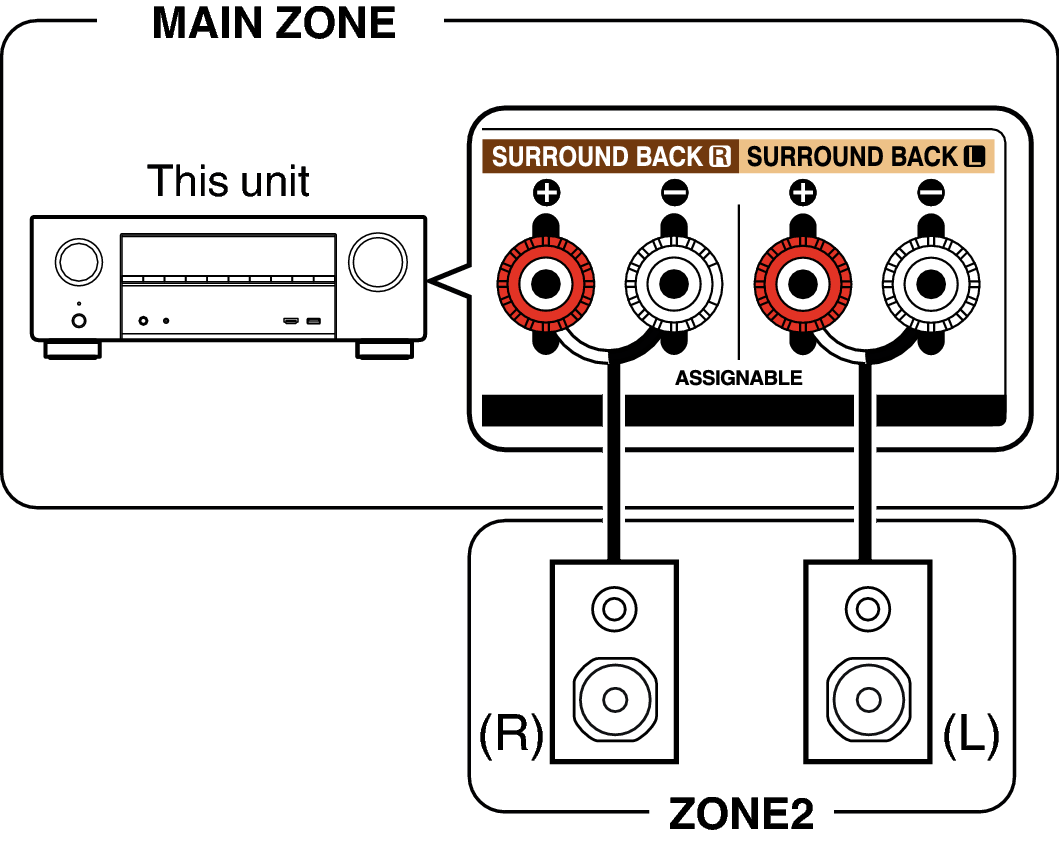

When “Assign Mode” is set to “ZONE2” in the menu, ZONE2 audio is output from the SURROUND BACK speaker terminal. link

Pict ZONE Audio1 X15E3
