Auto surround playback

This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback.
Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.

Press PURE to select “Auto”.

Auto surround playback begins.

Description of sound mode types

Dolby sound mode

Sound mode type

Description

Dolby PL 2-Roman Numeral x∗1

This mode can be selected when the Dolby PL 2-Roman Numeral x decoder is used to play back 2-channel sources in 6.1/7.1-channel surround sound including the surround back channel(s).
By adding the surround back channel(s), a more enveloping surround environment is produced, compared to Dolby Pro Logic  2-Roman Numeral . There are three playback modes: “Cinema” mode that is optimized for movie playback, “Music” mode that is optimized for music playback, and “Game” mode that is optimized for game play.

Dolby PL 2-Roman Numeral

This mode can be selected when the Dolby PL 2-Roman Numeral decoder is used to play back 2-channel sources in 5.1-channel surround sound with an enveloping surround sound experience.

Dolby PL 2-Roman Numeral z∗2

This mode can be selected when the Dolby PL 2-Roman Numeral z decoder is used to play back 2-channel sources in 7.1-channel surround sound with added front height channels.
By adding front height channels, the front soundstage becomes dramatically taller, simulating the effect of listening in a large movie theater or concert hall.

Dolby Digital

This mode can be selected when playing sources recorded in Dolby Digital.

Dolby Digital EX∗1

Using the Dolby Digital EX decoder, this mode plays Dolby Digital sources in 6.1/7.1-channel surround sound with added surround back channel(s).
By adding surround back speaker(s), sounds can be heard coming at you from behind and not just from the sides.

Dolby TrueHD

This mode can be selected when playing sources recorded in Dolby TrueHD.

Dolby Digital Plus

This mode can be selected when playing sources recorded in Dolby Digital Plus.

This can be selected when “Speaker Config.” - “Surr. Back” is not set to “None”. link

This can be selected when “Speaker Config.” - “Front Height”link is not set to “None”.

DTS sound mode

Sound mode type

Description

DTS Neo:6

This mode can be selected when the DTS Neo:6 decoder is used to play back 2-channel sources in 6.1/7.1-channel surround sound including the surround back channel(s).
There are two playback modes: “Cinema” mode that is optimized for movie playback, “Music” mode that is optimized for music playback.

DTS Surround

This mode can be selected when playing sources recorded in DTS.

DTS ES Dscrt6.1∗

This mode is suitable for playing discs recorded in DTS-ES.
The surround back channel added using the discrete method is played as an independent channel.
Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced.

DTS ES Mtrx6.1∗

This mode is suitable for playing discs recorded in DTS-ES.
The surround back channel added to the surround-left and surround-right channels by a matrix encoder at software recording time is decoded by this unit’s matrix decoder and played from each channel (surround left, surround right, surround back).

DTS 96/24

This mode can be selected when playing sources recorded in DTS 96/24.

DTS-HD

This mode can be selected when playing sources recorded in DTS-HD.

DTS Express

This mode can be selected when playing sources recorded in DTS Express.

This can be selected when “Speaker Config.” - “Surr. Back” is not set to “None”. link

PCM multi-channel sound mode

Sound mode type

Description

Multi Ch In

This mode can be selected when playing multi-channel PCM sources.

Original sound mode

Sound mode type

Description

Multi Ch Stereo

This mode is for enjoying stereo sound from all speakers.
Stereo audio (2-channel) sources are played back via the front (L/R) speakers, the surround speakers and surround back speakers (if connected).

Rock Arena

This mode simulates the expansive sound of a live concert in an arena.

Jazz Club

This mode simulates the experience of being in an intimate jazz club.

Mono Movie

This mode works with monaural audio sources and delivers a surround sound effect. For optimum channel balance and surround sound effects, connect the monaural source to both of the front (L/R) audio inputs.

Video Game

This mode provides an exciting, dynamic surround sound effect with your favorite action video games.

Matrix

This mode adds a spacious surround sound effect with stereo music sources.

Virtual

This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R) speakers only, and when listening with stereo headphones.

Auto sound mode

Sound mode type

Description

Auto

In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, DTS, DTS-HD, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode.
If the input signal is analog or PCM (2-channel), stereo playback is used. For Dolby Digital or DTS, the music is played back according to the respective channel number.

Stereo sound mode

Sound mode type

Description

Stereo

This mode plays 2-channel stereo audio with no additional surround sound processing.

Sound is output from the front left and right speakers, and subwoofer if connected.

When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing.

Direct sound mode

Sound mode type

Description

Direct

This mode plays back audio as recorded in the source.

Pure Direct

This mode plays back an even higher quality sound than the “Direct” mode.
The following circuits are stopped in order to further improve sound quality.

Display indicator circuit of the main body (display will go off.)

The analog video input/output switcher and processor is disabled.

Sound mode that can be selected for each input signal

The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.

Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. link

Input signal

Sound mode

MOVIE button

MUSIC button

GAME button

2-channel ∗1

Stereo

Circle-Large

Circle-Large

Circle-Large

Dolby PL 2-Roman Numeral / 2-Roman Numeral x Cinema ∗2

Circle-Large

Dolby PL 2-Roman Numeral / 2-Roman Numeral x Music ∗2

Circle-Large

Dolby PL 2-Roman Numeral / 2-Roman Numeral x Game ∗2

Circle-Large

Dolby PL 2-Roman Numeral z ∗2

Circle-Large

Circle-Large

Circle-Large

DTS Neo:6 Cinema ∗2

Circle-Large

DTS Neo:6 Music ∗2

Circle-Large

Multi Ch Stereo

Circle-Large

Circle-Large

Circle-Large

Mono Movie

Circle-Large

Rock Arena

Circle-Large

Jazz Club

Circle-Large

Matrix

Circle-Large

Video Game

Circle-Large

Virtual

Circle-Large

Circle-Large

Circle-Large

2-channel also includes analog input.

This mode plays back 2-channel sources in 5.1 or 7.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.

Input signal

Sound mode

MOVIE button

MUSIC button

GAME button

Multi-channel ∗3

Stereo

Circle-Large

Circle-Large

Circle-Large



Dolby Digital

Dolby Digital

Circle-Large

Circle-Large

Circle-Large

Dolby Digital EX

Circle-Large

Circle-Large

Circle-Large

Dolby Digital + PL 2-Roman Numeral x Cinema

Circle-Large

Dolby Digital + PL 2-Roman Numeral x Music

Circle-Large

Dolby Digital + PL 2-Roman Numeral z

Circle-Large

Circle-Large

Circle-Large

Dolby TrueHD

Dolby TrueHD

Circle-Large

Circle-Large

Circle-Large

Dolby TrueHD + EX

Circle-Large

Circle-Large

Circle-Large

Dolby TrueHD + PL 2-Roman Numeral x Cinema

Circle-Large

Dolby TrueHD + PL 2-Roman Numeral x Music

Circle-Large

Dolby TrueHD + PL 2-Roman Numeral z

Circle-Large

Circle-Large

Circle-Large

Dolby Digital Plus

Dolby Digital Plus

Circle-Large

Circle-Large

Circle-Large

Dolby Digital Plus + EX

Circle-Large

Circle-Large

Circle-Large

Dolby Digital Plus + PL 2-Roman Numeral x Cinema

Circle-Large

Dolby Digital Plus + PL 2-Roman Numeral x Music

Circle-Large

Dolby Digital Plus + PL 2-Roman Numeral z

Circle-Large

Circle-Large

Circle-Large

DTS

DTS Surround

Circle-Large

Circle-Large

Circle-Large

DTS ES Dscrt 6.1

Circle-Large

Circle-Large

Circle-Large

DTS ES Mtrx 6.1

Circle-Large

Circle-Large

Circle-Large

DTS 96/24

Circle-Large

Circle-Large

Circle-Large

DTS + PL 2-Roman Numeral x Cinema

Circle-Large

DTS + PL 2-Roman Numeral x Music

Circle-Large

DTS + PL 2-Roman Numeral z

Circle-Large

Circle-Large

Circle-Large

DTS + Neo:6

Circle-Large

Circle-Large

Circle-Large

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.

Input signal

Sound mode

MOVIE button

MUSIC button

GAME button



DTS-HD/
DTS Express

DTS-HD HI RES

Circle-Large

Circle-Large

Circle-Large

DTS-HD MSTR

Circle-Large

Circle-Large

Circle-Large

DTS Express

Circle-Large

Circle-Large

Circle-Large

DTS-HD + PL 2-Roman Numeral x Cinema

Circle-Large

DTS-HD + PL 2-Roman Numeral x Music

Circle-Large

Circle-Large

DTS-HD + PL 2-Roman Numeral z

Circle-Large

Circle-Large

Circle-Large

DTS-HD + Neo:6

Circle-Large

Circle-Large

PCM multi-channel

Multi Ch In

Circle-Large

Circle-Large

Circle-Large

Multi Ch In 7.1

Circle-Large

Circle-Large

Circle-Large

Multi In + Dolby EX

Circle-Large

Circle-Large

Circle-Large

Multi In + PL 2-Roman Numeral x Cinema

Circle-Large

Multi In + PL 2-Roman Numeral x Music

Circle-Large

Multi In + PL 2-Roman Numeral z

Circle-Large

Circle-Large

Circle-Large

Multi-channel ∗3

Multi Ch Stereo

Circle-Large

Circle-Large

Circle-Large

Mono Movie

Circle-Large

Rock Arena

Circle-Large

Jazz Club

Circle-Large

Matrix

Circle-Large

Video Game

Circle-Large

Virtual

Circle-Large

Circle-Large

Circle-Large

The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.

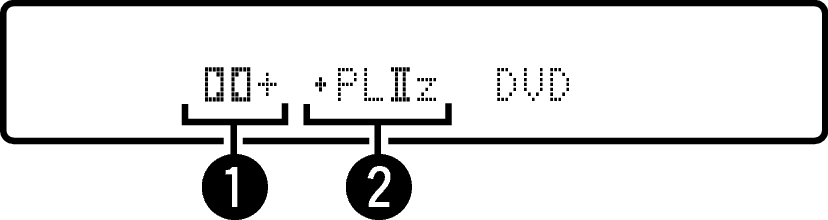

Views on the display

Disp DOLBY DIGITAL Plus 1line

Shows a decoder to be used.

A Dolby Digital Plus decoder is displayed as “ Icon DOLBY ”.

Shows a decoder that creates sound output.

“+ PL 2-Roman Numeral z” indicates that the PL 2-Roman Numeral z decoder is being used, and that front height channel sound is being created.
