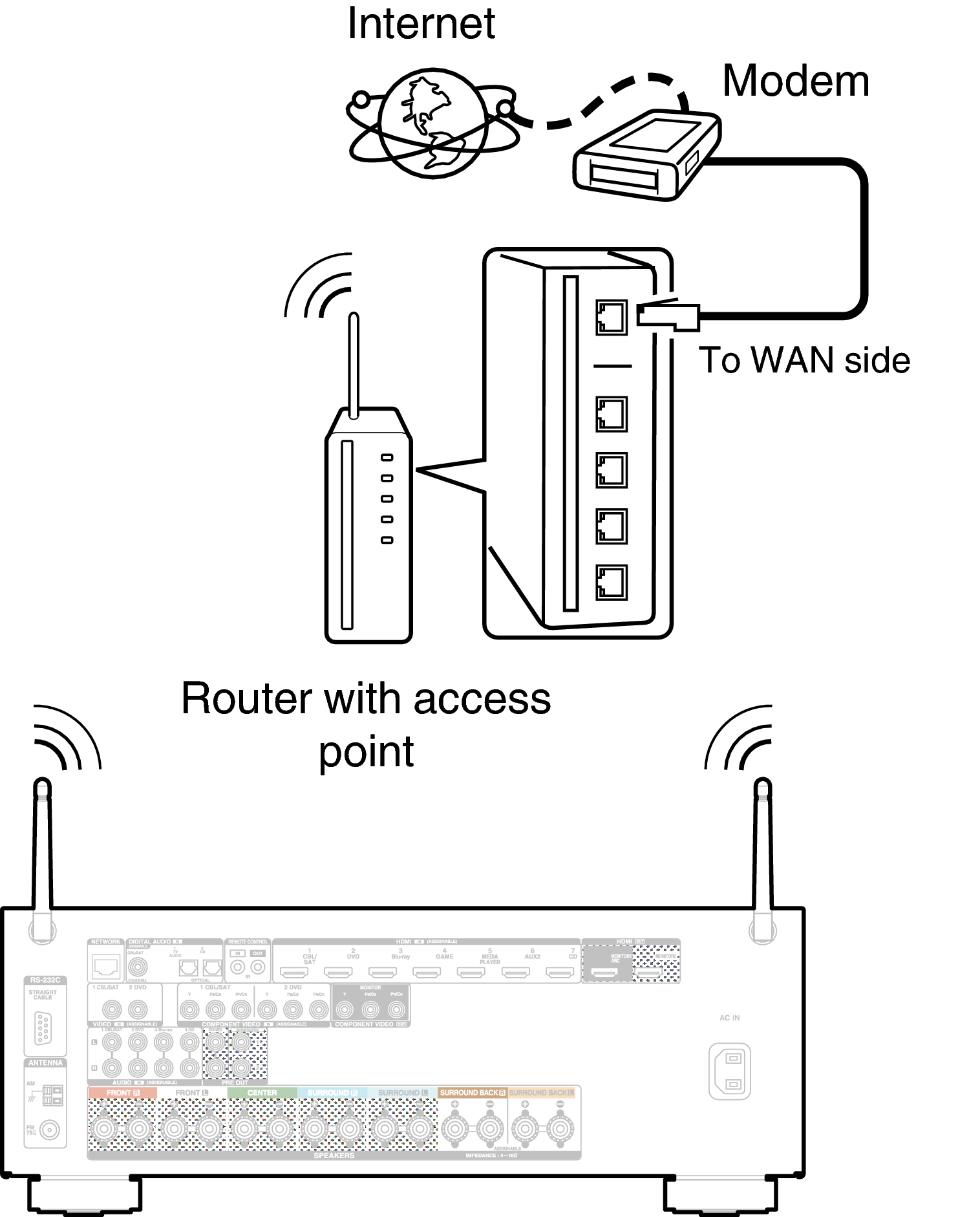

When connecting to a wireless LAN network, stand the rod antenna for Bluetooth/wireless LAN connection upright on the rear panel.
See “Wi-Fi Setup” on how to connect to a wireless LAN router. link
When using this unit, we recommend you use a router equipped with the following functions:
Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.
Only use a shielded STP or ScTP LAN cable (readily available at electronics stores). (CAT-5 or greater recommended)
The normal shielded-type LAN cable is recommended.
If a flat-type cable or unshielded-type cable is used, other devices could be affected by noise.
When using a router that supports the WPS （Wi-Fi Protected Setup） function, Wi-Fi connection can be carried out easily.
When using this unit connected to a network with no DHCP function, configure the IP address, etc. in “Network”. link
The types of routers that can be used depend on the ISP. Contact your ISP or a computer shop for details.
This unit is not compatible with PPPoE. A PPPoE compatible router is required if your contracted line is not set using PPPoE.
Do not connect a NETWORK connector directly to the LAN port / Ethernet connector on your computer.
Various online services may be discontinued without prior notice.
