Display

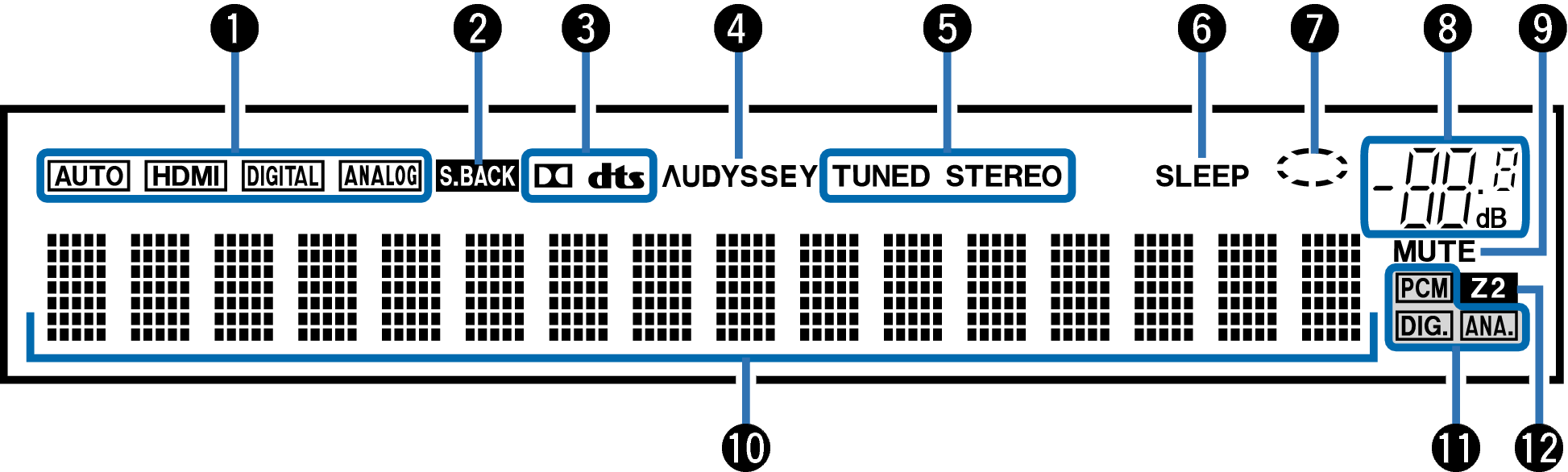

Name Display AVRX2100W

Input mode indicators

These light according to the audio input mode settings of each input source. link

Surround back indicator

This lights when audio signals are being output from the surround back speakers. link

Decoder indicators

These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.

Audyssey® indicator

This lights when “MultEQ® XT”, “Dynamic EQ” or “Dynamic Volume” has been set up. link

Tuner reception mode indicators

These light up according to the reception conditions when the input source is set to “Tuner”.

TUNED: Lights up when the broadcast is properly tuned in.

STEREO: Lights up when receiving FM stereo broadcasts.

Sleep timer indicator

This lights when the sleep mode is selected. link

Circle indicator

This is displayed when the input source is “HEOS Music” when you are playing back music.

Volume indicator

MUTE indicator

This blinks while the sound is muted. link

Information display

The input source name, sound mode, setting values and other information are displayed here.

Input signal indicators

The respective indicator will light corresponding to the input signal. link

ZONE2 indicator

This lights up when ZONE2 (separate room) power is turned on. link
