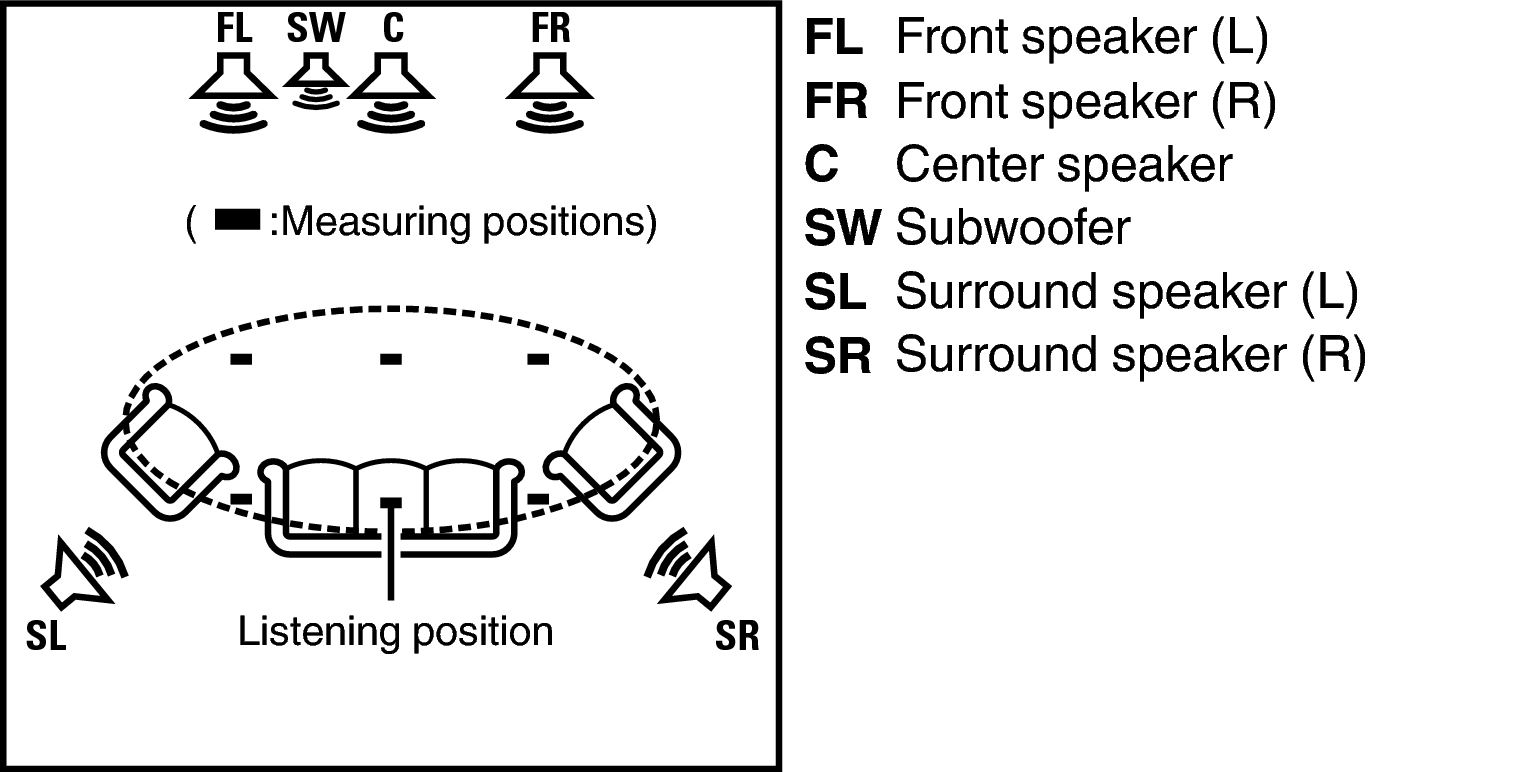

To perform measurement, place the Sound calibration microphone in multiple locations all around the listening area. For best results, we recommend you measure in six or more positions, as shown in the illustration (up to eight positions).
When measuring the second and subsequent positions, install the Sound calibration microphone within 60 cm of the first measurement position (main listening position).
If you perform the Audyssey® Setup, the Audyssey MultEQ® XT32, Audyssey Dynamic EQ® and Audyssey Dynamic Volume® functions are enabled. link
About the main listening position
The main listening position is the position where listeners would normally sit or where one would normally sit alone within the listening environment. Before starting Audyssey® Setup, place the Sound calibration microphone in the main listening position.
Audyssey MultEQ® XT32 uses the measurements from this position to calculate speaker distance, level, polarity, and the optimum crossover value for the subwoofer.
About Audyssey Sub EQ HT™
Audyssey Sub EQ HT™ makes the integration of dual subwoofers seamless by first compensating for any level and delay differences between the two subwoofers and then applying Audyssey MultEQ® XT32 to both subwoofers together.
To run Audyssey Sub EQ HT™ you must select “Measure (2 spkrs)” in “Channel Select”. link.
Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices (radios, air conditioners, fluorescent lights, etc.). The measurements could be affected by the sounds emitted by such devices.
During the measurement process, place cell phones outside the listening room. Cell phone signals could disrupt the measurements.
Do not stand between the speakers and Sound calibration microphone or allow obstacles in the path while the measurements are being made. Also, install the Sound calibration microphone at least 50 cm away from the wall. Failure to do so will result in inaccurate readings.
During the measurement process, audible test tones will come from the speakers and subwoofer(s), but this is part of normal operation. If there is background noise in the room, these test signals will increase in volume.
Operating VOLUME on the remote control unit or MASTER VOLUME on the main unit during the measurements will cancel the measurements.
Measurement cannot be performed when headphones are connected. Unplug the headphones before performing Audyssey® Setup.
