Listening to FM/AM broadcasts

Connect the antenna. (Connecting an FM/AM antennalink)
Press TUNER to switch the input source to “Tuner”.

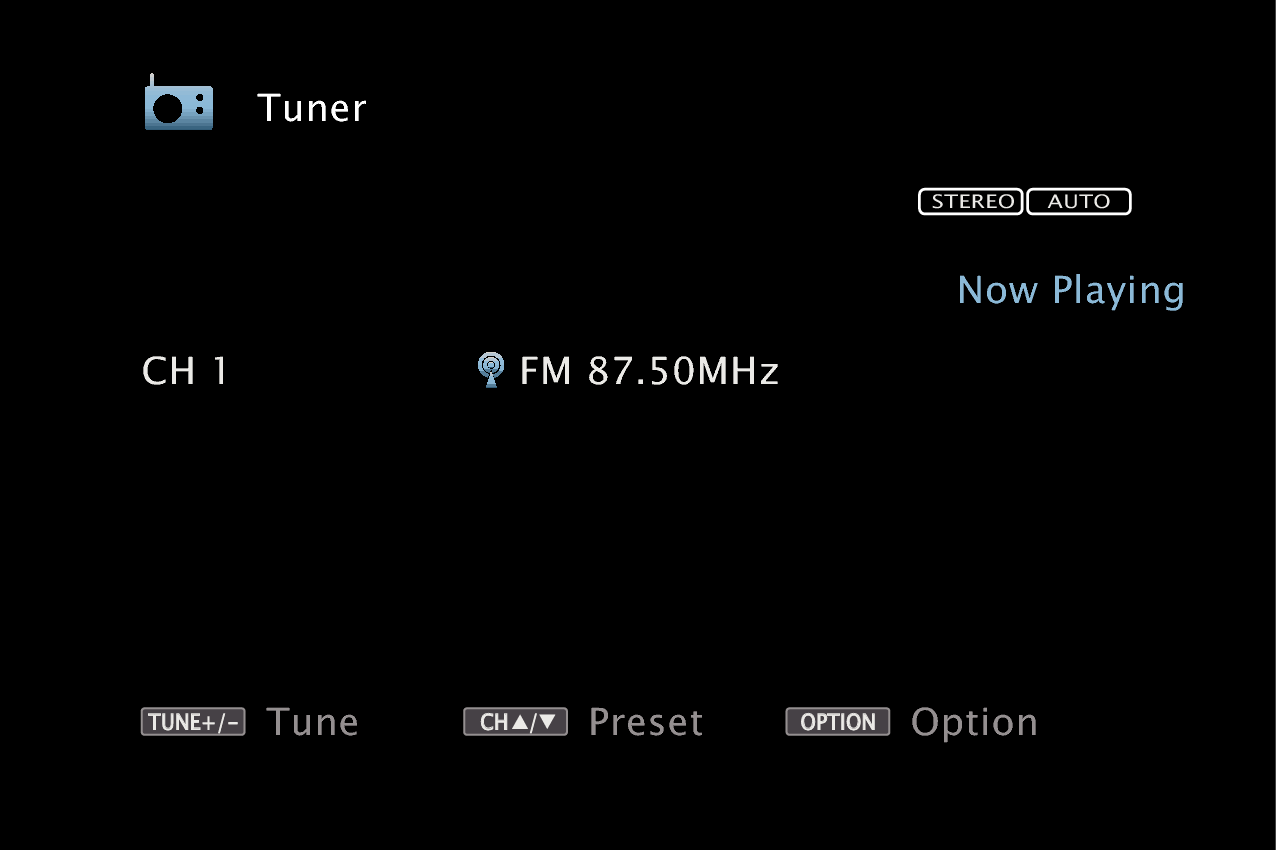

Bracket Open TV screen Bracket Close

GUI Tuner 87.50MHz X2100WE2

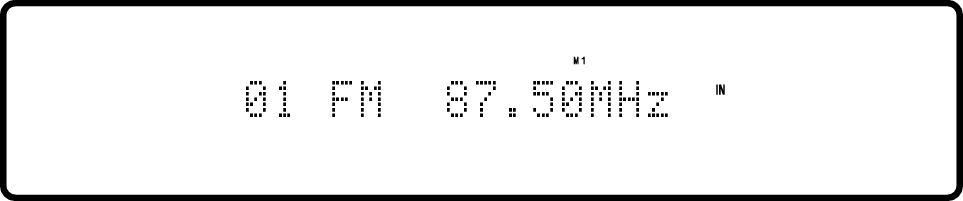

Bracket Open Display of this unit Bracket Close

Disp 01 FM87.50MHz AVRX4100WE2
Press OPTION.

The option menu screen is displayed.

Use shirosankaku shirosankaku-Reverse to select “FM/AM”, then press ENTER.

This displays the reception band input screen.

Use White-Arrow-Left White-Arrow-Right to select “FM” or “AM”, then press ENTER.

FM:

When listening to an FM broadcast.

AM:

When listening to an AM broadcast.

Press TUNE + or TUNE - to select the station you want listen to.

Scanning is performed until it finds an available radio station. When it finds a radio station, it stops the scan automatically and tunes in.

The modes for receiving FM broadcasts consists of “Auto” mode that automatically searches available broadcast stations and “Manual” mode that lets you tune in using buttons to change the frequency. The default setting is “Auto”. You can also use “Direct Tune” to tune in by entering the frequency directly.

In “Auto” mode, you cannot tune in to radio stations if the reception is not good.
If this is the case, then use the “Manual” mode or “Direct Tune” mode to tune in.

Operation buttons

Function

TUNE +, –

Selects the radio station (up/down)

CH/PAGE  kurosankaku   Sankaku-Reverse

Selects preset radio stations

0 – 9

Preset channel selection/Direct frequency tuning

Operations accessible through the option menu
