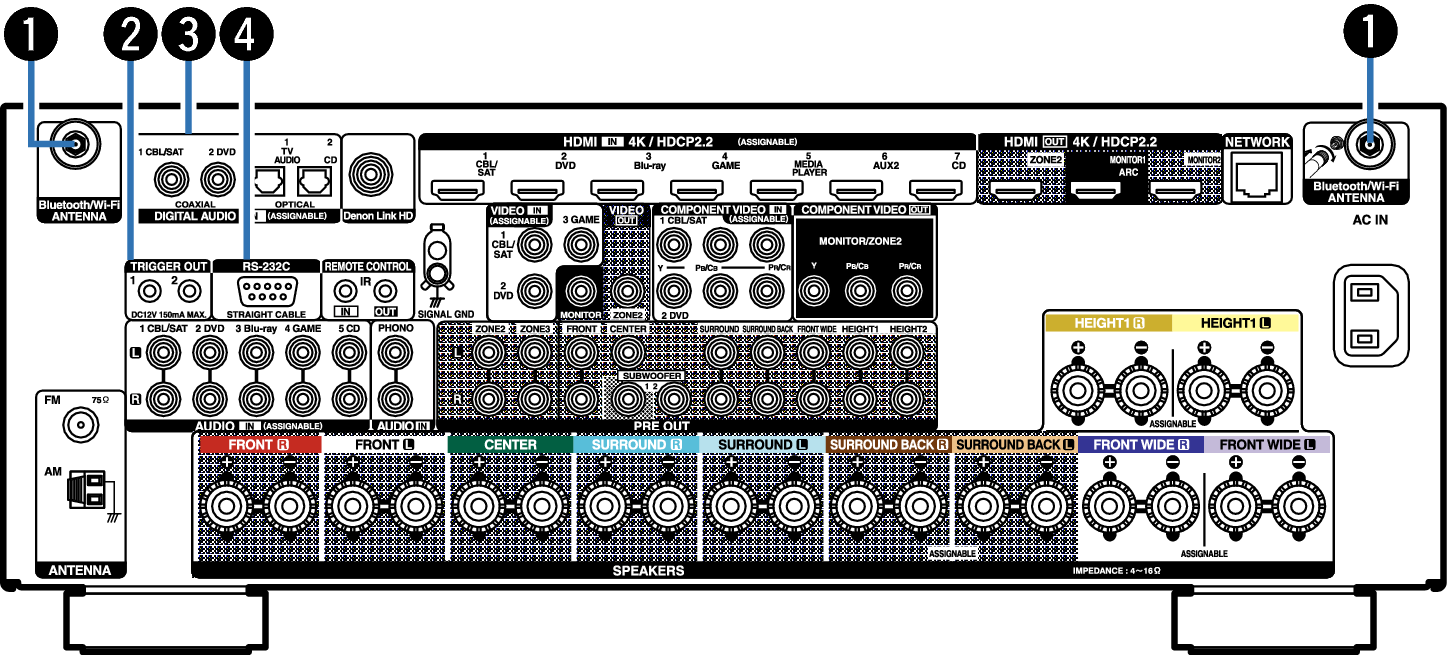

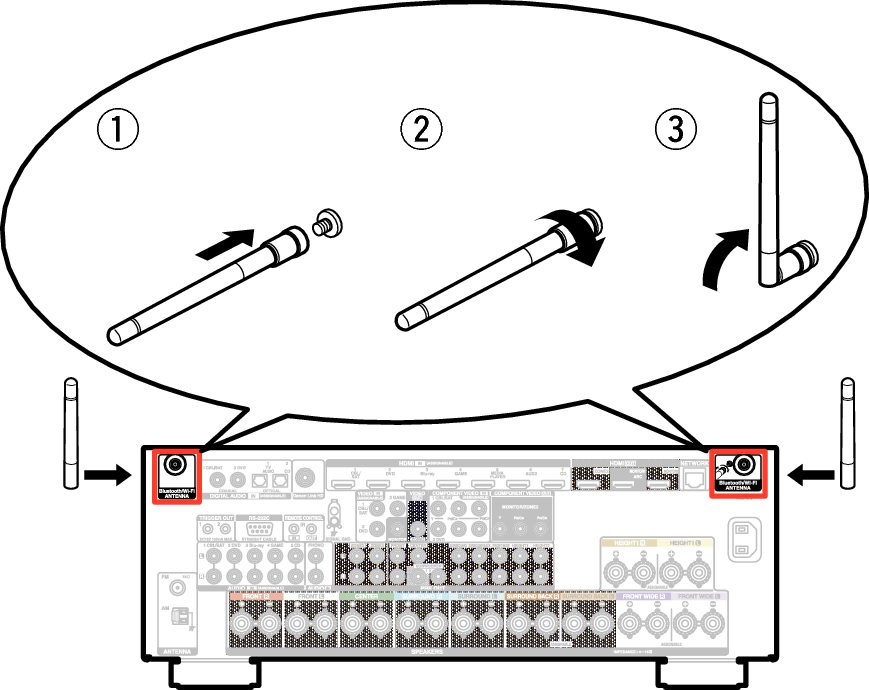

Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link
TRIGGER OUT jacks
Used to connect devices equipped with the trigger function. link
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
Used to connect home automation controller devices fitted with RS-232C connectors. Consult the owner’s manual of the home automation controller for more information about serial control of this unit.
Perform the operation below beforehand.

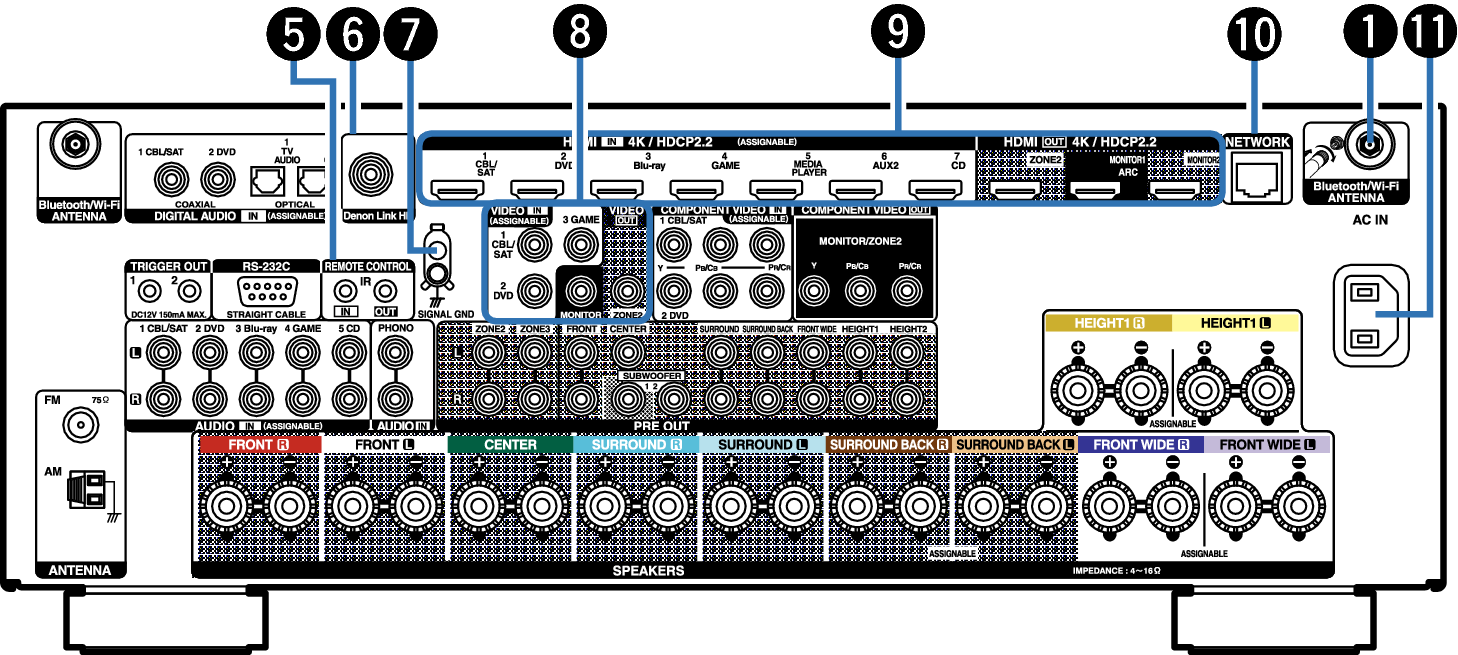

REMOTE CONTROL jacks
Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link
Denon Link HD connector
Used to connect a Denon Link HD compatible Blu-ray Disc player. link
SIGNAL GND terminal
Used to connect a ground wire for the turntable. link
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
Used to connect devices equipped with HDMI connectors.
Used to connect to a LAN cable when connecting to a wired LAN network. link
AC inlet (AC IN)
Used to connect the power cord. link

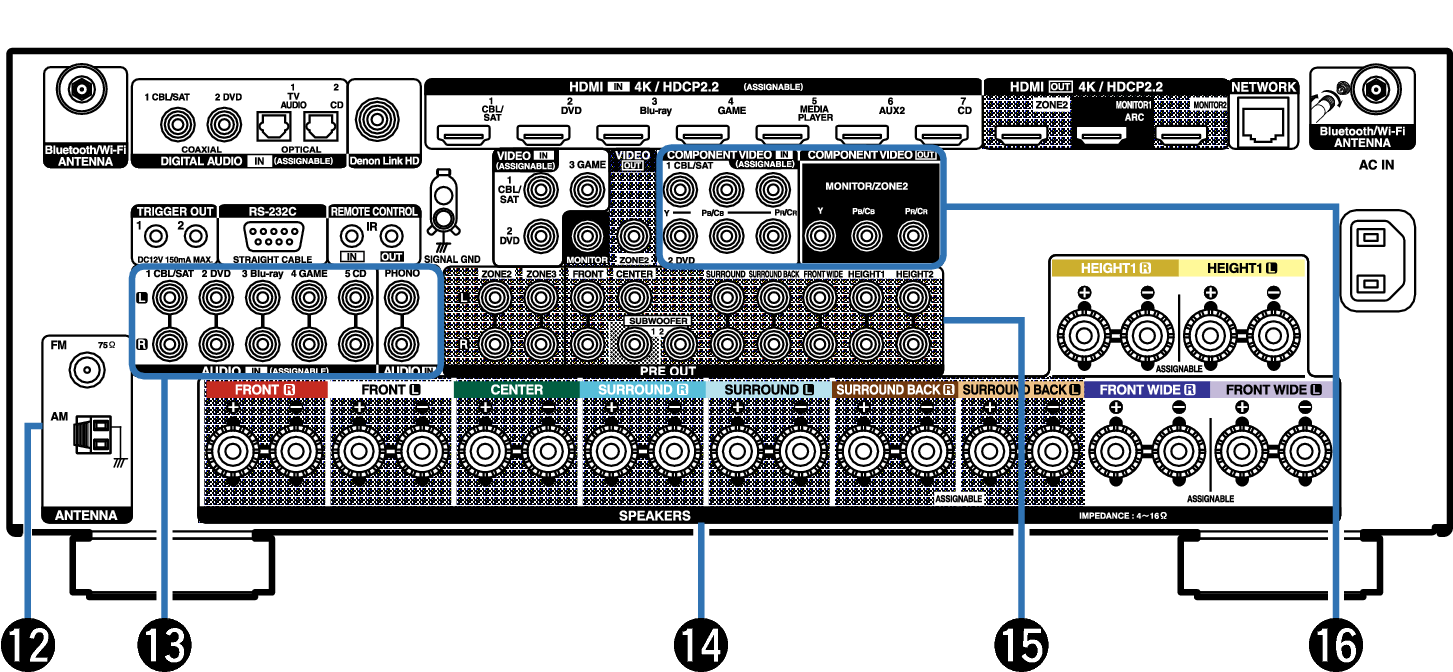

FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
Speaker terminals (SPEAKERS)
Used to connect speakers. link
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power amplifier.
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
