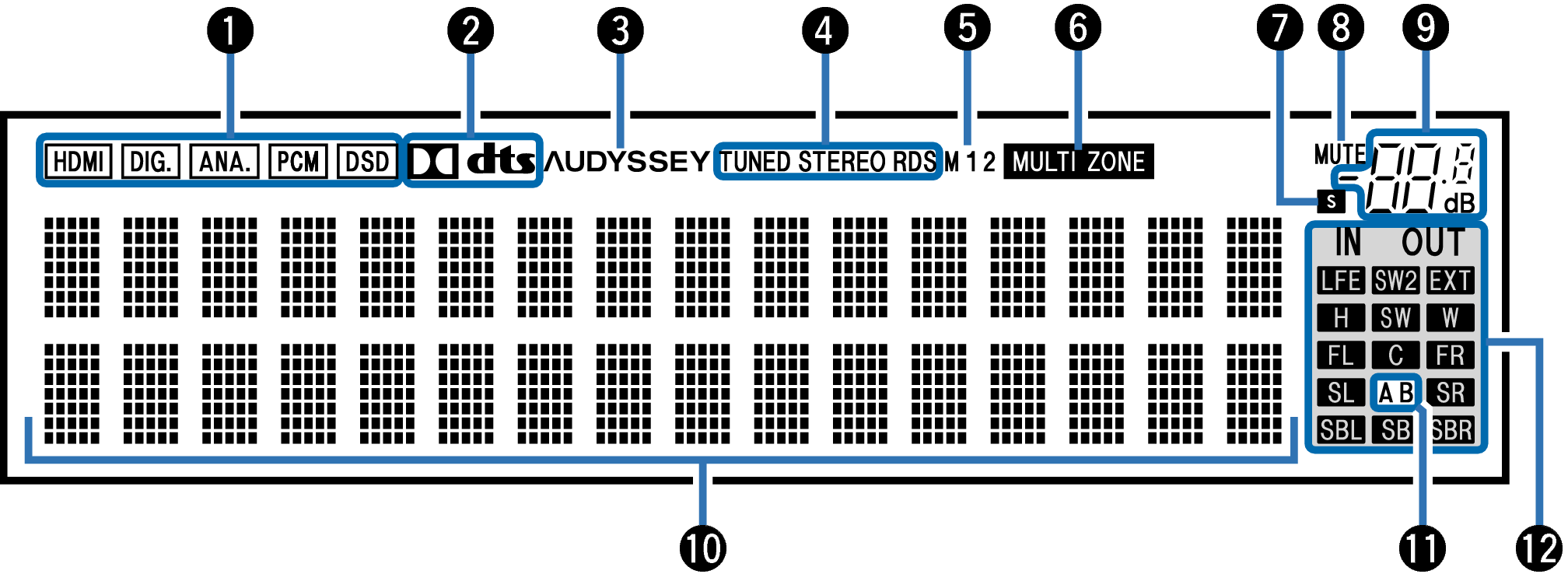

Input signal indicators
The respective indicator will light corresponding to the input signal. link
These light when Dolby or DTS signals are input or when the Dolby or DTS decoder is running.
This lights when “MultEQ® XT32”, “Dynamic EQ”, “Dynamic Volume” or “Audyssey LFCTM” has been set up. link
Tuner reception mode indicators
These light up according to the reception conditions when the input source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
RDS: Lights up when receiving RDS broadcasts.
Monitor output indicator
These light according to the HDMI monitor output setting. When set to “Auto(Dual)”, the indicators light according to connection status.
MULTI ZONE indicator
This lights up when ZONE2 or ZONE3 (another room) power is turned on. link
Sleep timer indicator
This lights when the sleep mode is selected. link
This blinks while the sound is muted. link
The input source name, sound mode, setting values and other information are displayed here.
Front speaker indicator
This lights according to the setting of the front A and B speakers.
Input/output signal channel indicators
The channel for input/output signals is displayed according to the setting configured for “Channel Indicators”. link
When “Channel Indicators” is set to “Output” (Default)
When “Channel Indicators” is set to “Input”
When playing HD Audio sources, the indicator lights when a signal from an extension channel (a channel other than the front, center, surround, surround back, front height, front wide or LFE channel) is input.
