With the door open

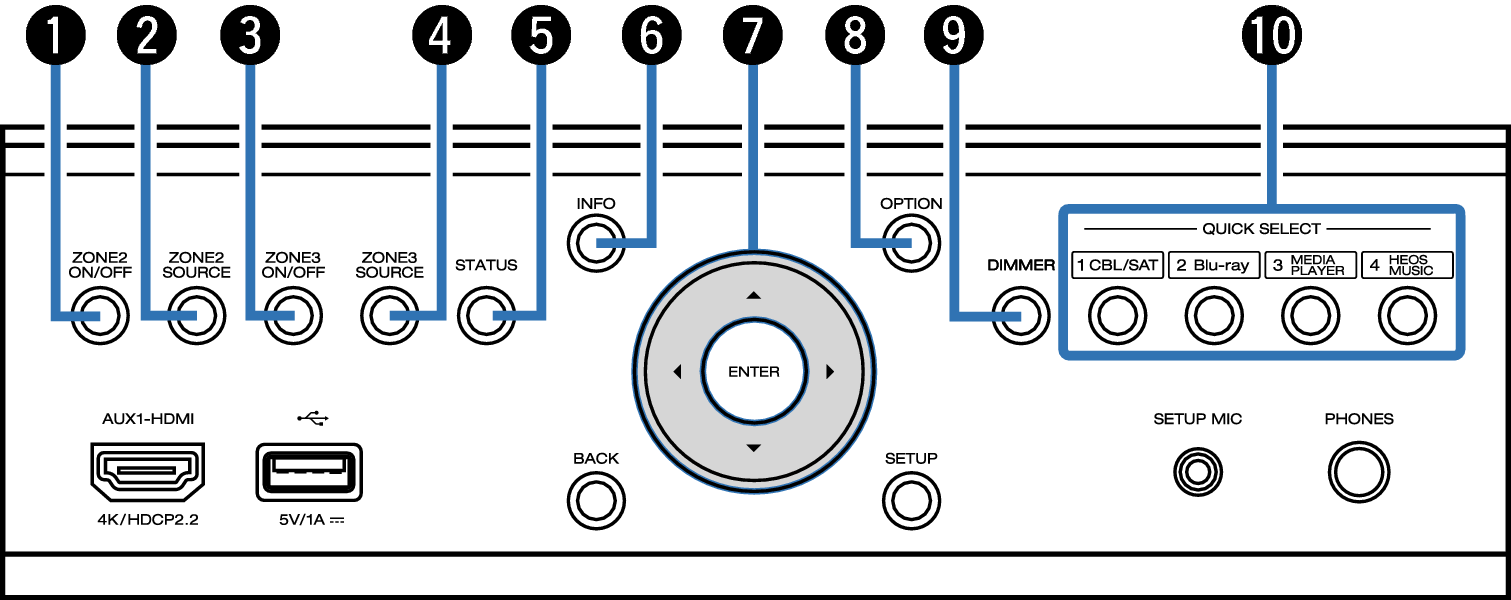

Name Front Small2-1 X45

ZONE2 ON/OFF button

This turns the power of ZONE2 (another room) on/off. link

ZONE2 SOURCE button

This selects the input source for ZONE2. link

ZONE3 ON/OFF button

This turns the power of ZONE3 (another room) on/off. link

ZONE3 SOURCE button

This selects the input source for ZONE3. link

STATUS button

Each press of this switches the status information that is shown on the display.

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items.

OPTION button

This displays the option menu on the TV screen.

DIMMER button

Each press of this switches the brightness of the display. link

QUICK SELECT buttons

With a single press of any of these buttons, you can call up various settings you’ve registered to each button such as the input source, volume level and sound mode settings. link

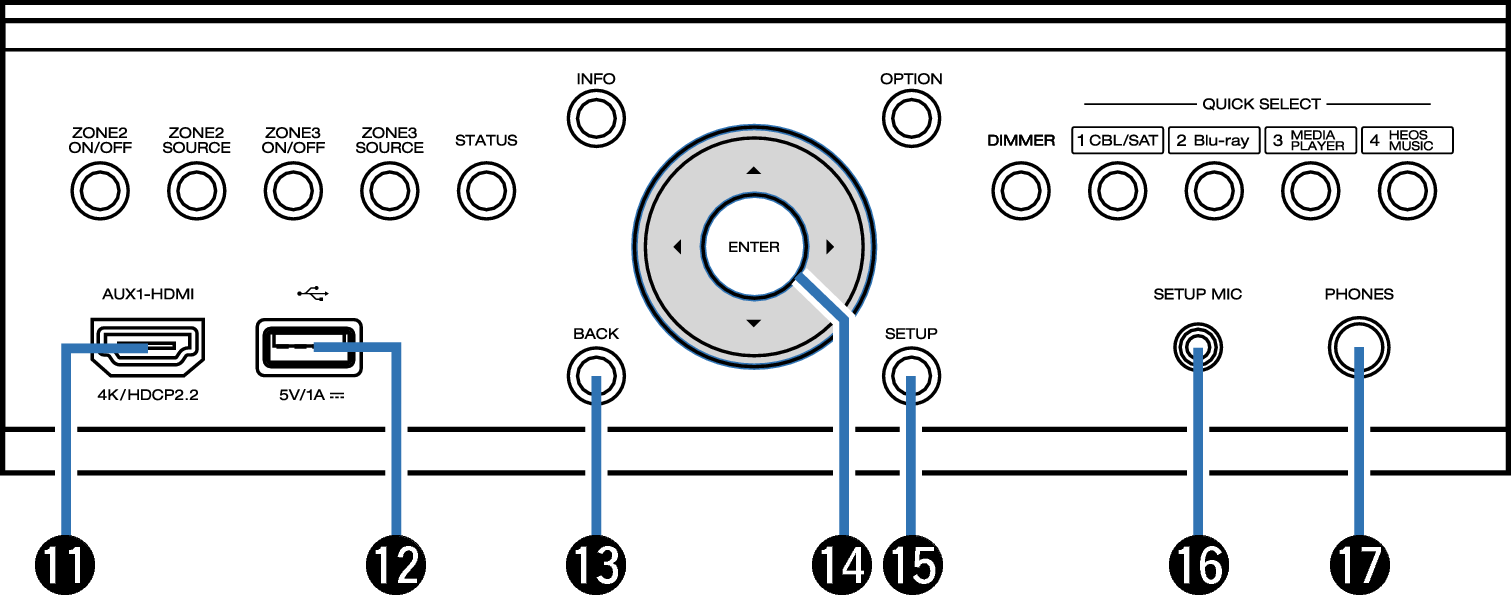

Name Front Small2-2 X45

AUX1-HDMI connector

This is used to connect HDMI output compatible devices such as video camcorders and game consoles. link

USB port ( Icon USB )

This is used to connect USB storages (such as USB memory devices). link

BACK button

This returns to the previous screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. link

Headphones jack (PHONES)

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the PRE OUT connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.
