Types of input signals, and corresponding sound modes

Kuromaru-Large This indicates the default sound mode.

Circle-Large This indicates the selectable sound mode.

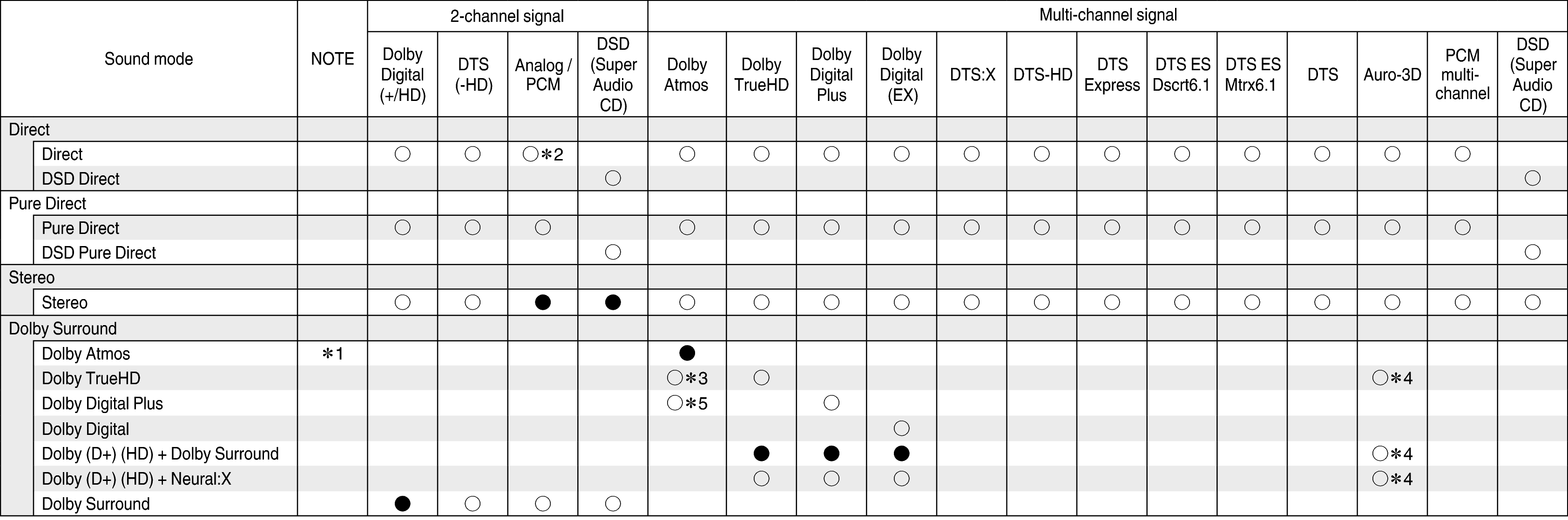

Tsignal & Csound1 X45

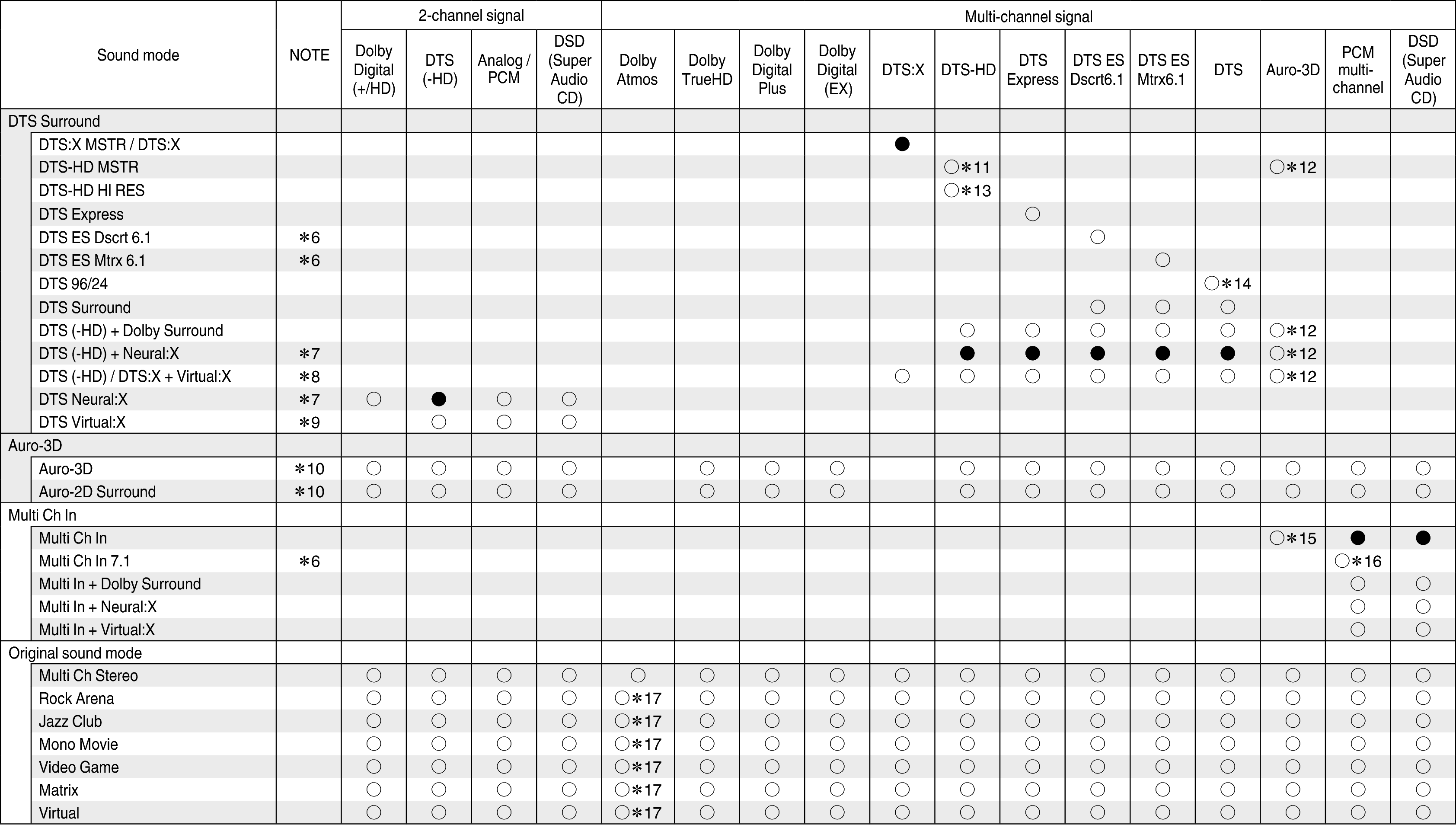

Tsignal & Csound2 X45

This item can be selected when using any of the Surround Back, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speaker.

The default sound mode for the AirPlay playback is “Direct”.

This can be selected when the Dolby Atmos signal contains the Dolby TrueHD signal.

This item can be selected if the Auro-3D signal contains Dolby TrueHD.

This can be selected when the Dolby Atmos signal contains the Dolby Digital Plus signal.

This item can be selected when surround back speakers are used.

This item cannot be selected when a DTS(-HD) format with a sampling frequency of over 48 kHz is input.

This item cannot be selected when a DTS:X format with a sampling frequency of over 48 kHz is input.

This item cannot be selected when the input signal is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos.

This item cannot be selected if the sampling frequency of the input signal is 32 kHz.

This item can be selected when the input signal is DTS-HD Master Audio.

This item can be selected if the Auro-3D signal contains DTS-HD Master Audio.

This item can be selected when the input signal is DTS-HD Hi Resolution.

This item can be selected when the input signal is DTS 96/24.

This item can be selected if the Auro-3D signal contains Multi Channel PCM.

This item can be selected when the input signals contain surround back signals.

This can be selected when the Dolby Atmos signal contains the Dolby TrueHD or Dolby Digital Plus signal.
