Connecting a device with a multi-channel output connector

You can connect this unit to an external device fitted with multi-channel sound audio output connectors to enjoy music and video.

To play analog signals input from 7.1CH IN connectors, set Input Modelink to “7.1CH IN”.

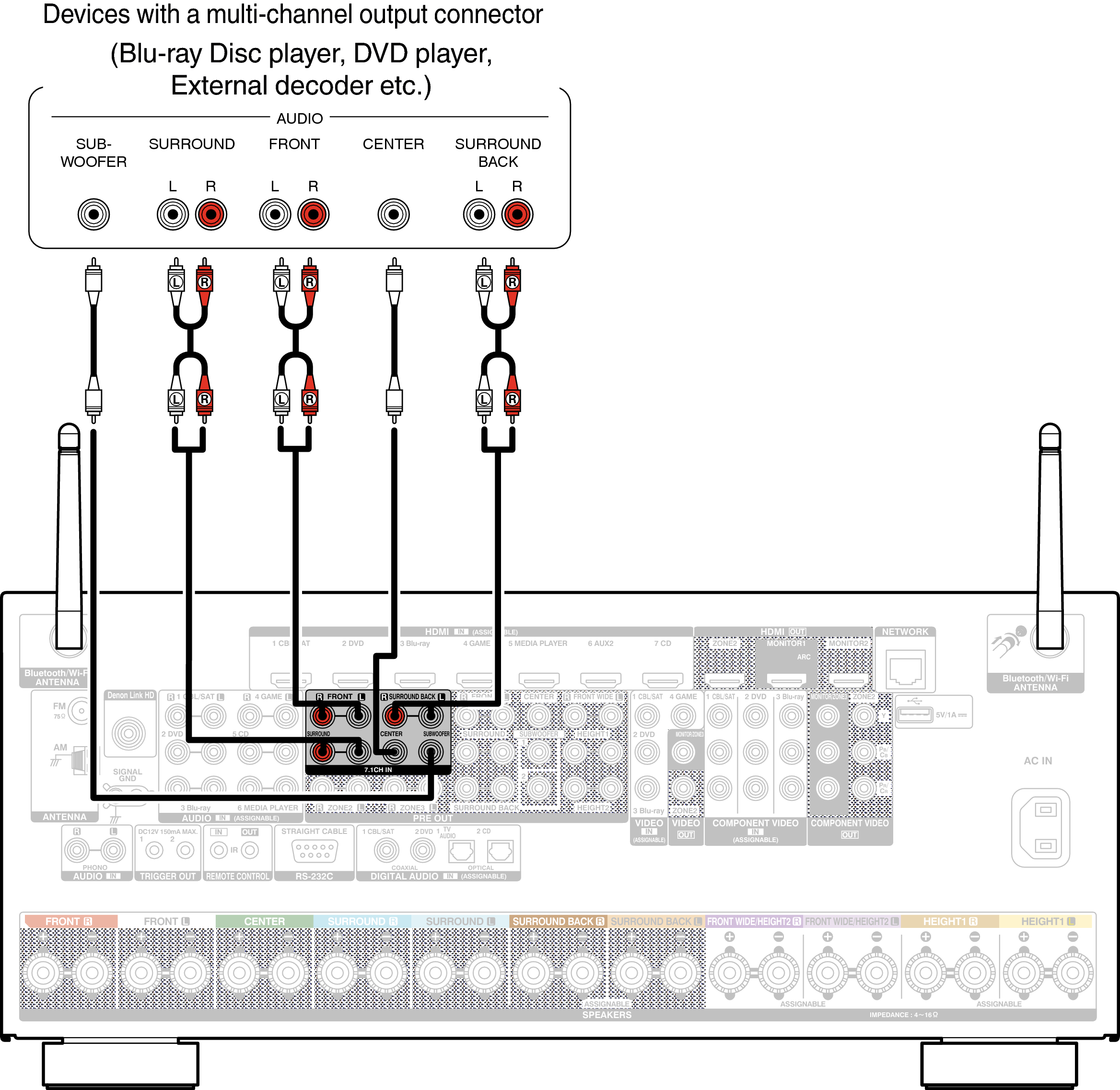

Conne 7.1CH IN X7200WE2

The video signal can be connected in the same way as a Blu-ray Disc player/DVD player.
Connecting a DVD player or Blu-ray Disc playerlink
