Connections

Connecting speakers

Connecting a TV

Connecting a playback device

Connecting an iPod or USB memory device to the USB port

Connecting an FM/AM antenna

Connecting to a home network (LAN)

Connecting an external control device

Connecting the power cord

NOTE

Do not plug in the power cord until all connections have been completed. However, when the “Setup Assistant” is running, follow the instructions in the “Setup Assistant” (page 9 in the separate “Quick Start Guide”) screen for making connections. (During “Setup Assistant” operation, the input/output connectors do not conduct current.)

Do not bundle power cords together with connection cables. Doing so can result in noise.

Cables used for connections

Provide necessary cables according to the devices you want to connect.

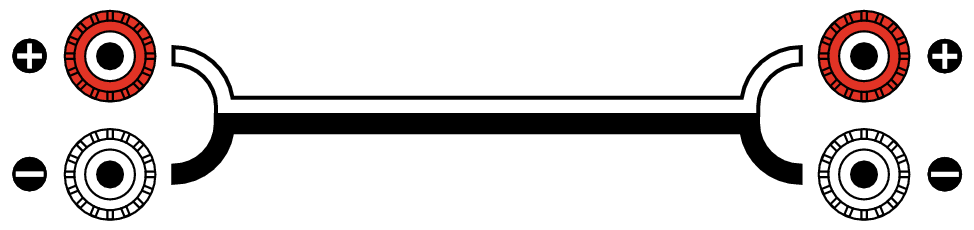

Speaker cable

Connection_Cable I

Subwoofer cable

Connection_Cable B

HDMI cable

Connection_Cable L

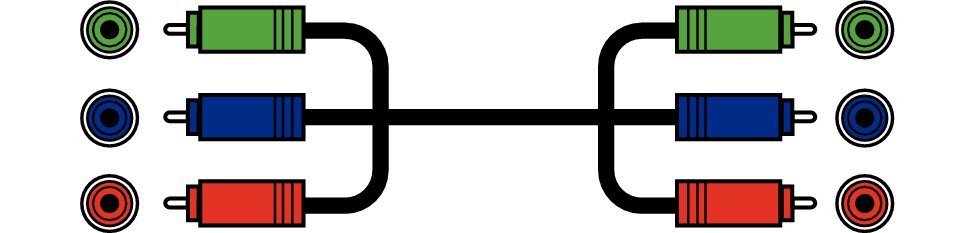

Component video cable

Connection_Cable J

Video cable

Connection_Cable F

Coaxial digital cable

Connection_Cable C

Optical cable

Connection_Cable D

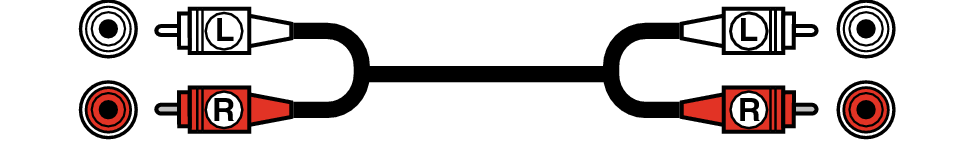

Audio cable

Connection_Cable A

LAN cable

Connection_Cable M
