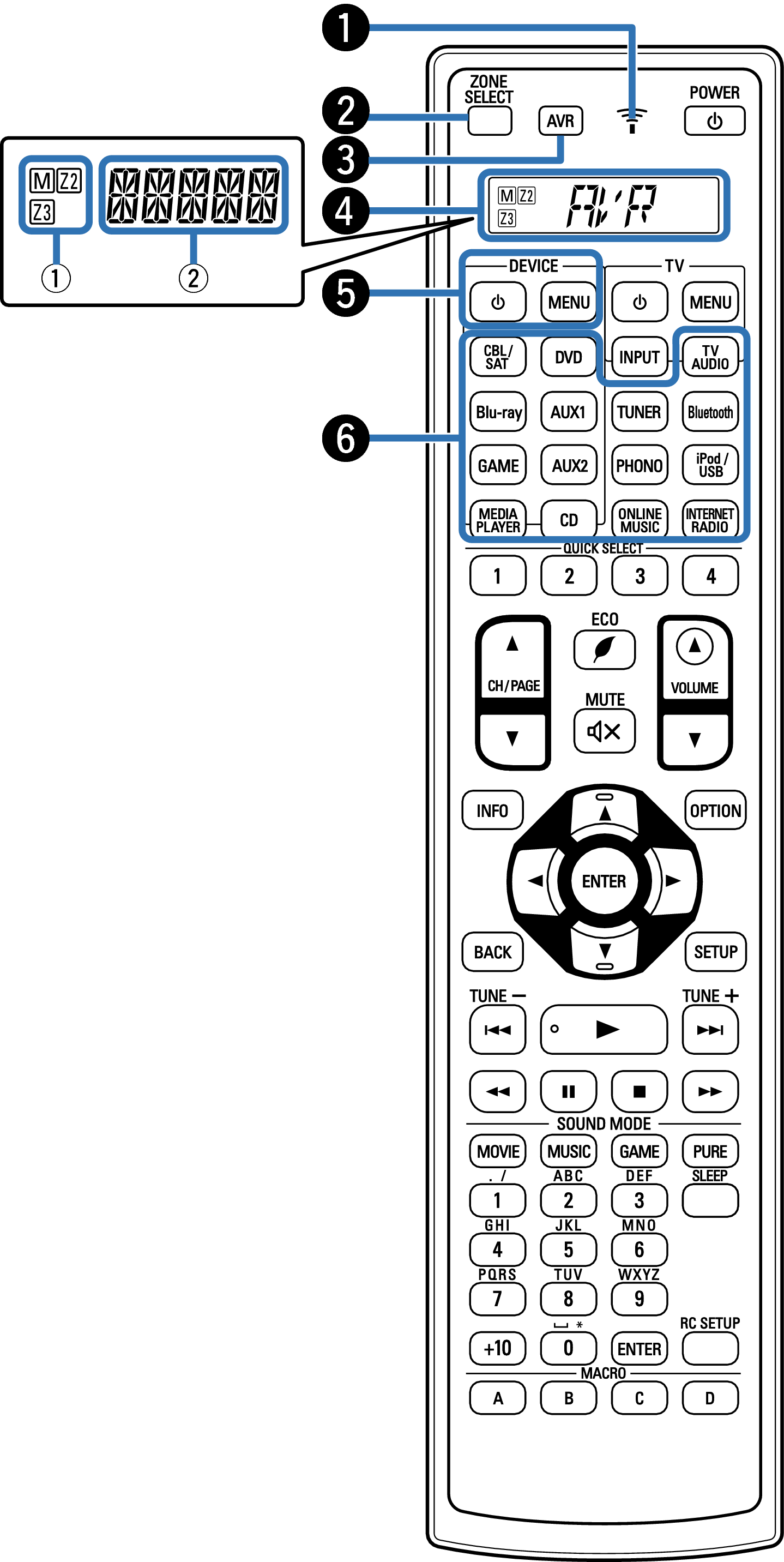

Remote control unit
indicator
This is lit when signals are sent from the remote control unit.
Zone select button (ZONE SELECT)
These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. link, link
AVR operation button
When preset codes are registered to the remote control unit, press this button and then operate the menu on the unit.
Display
Zone select indicators
Information indicator
This displays “AVR” when operating this unit.
This displays the input source name when operating an external device.
This displays “TV” when operating TV.
This displays details about the setting on the remote control unit.
Device operation buttons (DEVICE
/ DEVICE MENU)
These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link
Input source select buttons
QUICK SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source, volume level and sound mode settings. link
Channel/page search buttons (CH/PAGE
)
MUTE button (
)
Information button (INFO)
This displays the status information on the TV screen. link
Cursor buttons (
)
These select items. link
BACK button
This returns to the previous screen. link
System buttons
These perform playback related operations. link
Skip buttons (
,
)
Play button (
)
Search buttons (
,
)
Pause button (
)
Stop button (
)
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. link
Number / Character buttons

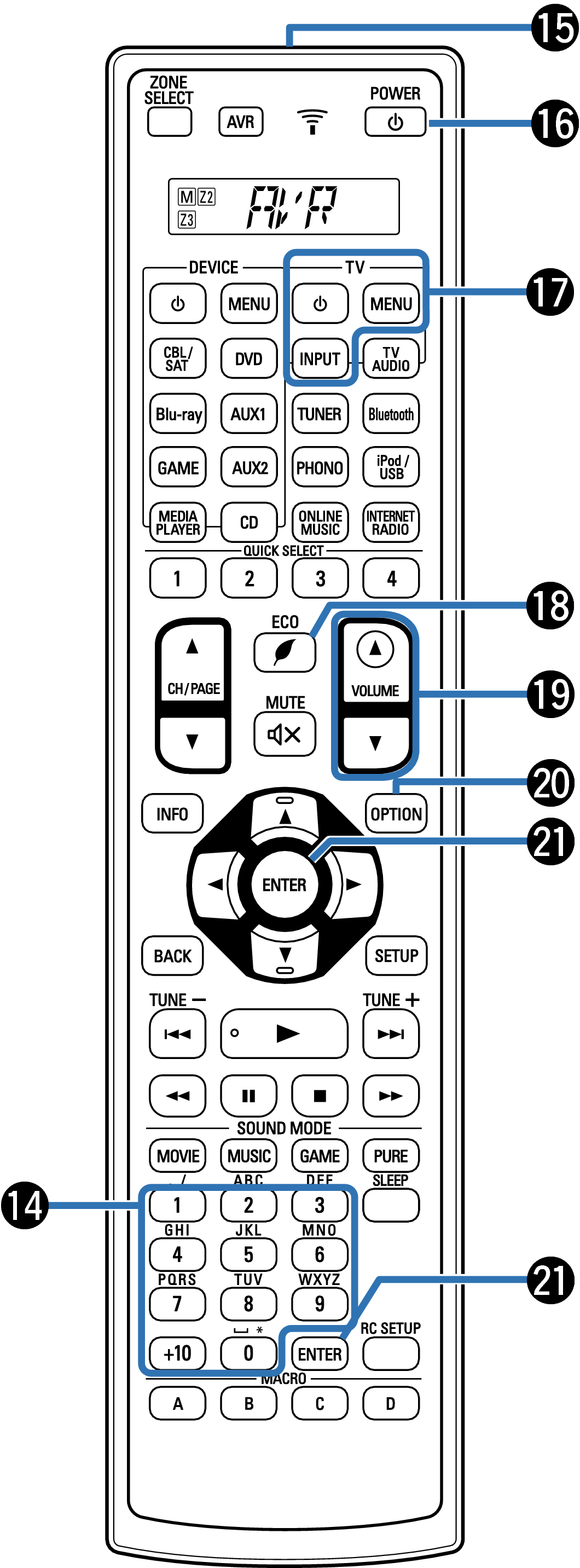

Remote control signal transmitter
This transmits signals from the remote control unit. link
POWER button ( )
TV operation buttons (TV / TV MENU / TV INPUT)
These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link
ECO Mode button (
)
This switches to ECO Mode. link
VOLUME buttons ( )
OPTION button
This displays the option menu on the TV screen. link
ENTER button
This determines the selection. link

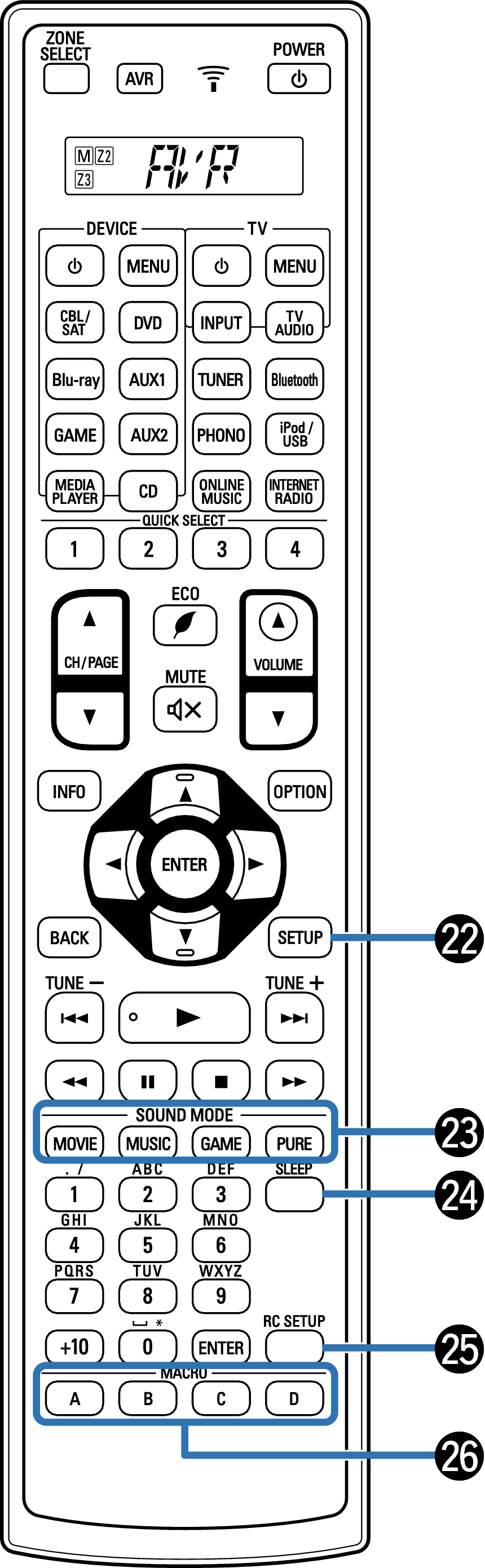

SETUP button
This displays the menu on the TV screen. link
SOUND MODE buttons
These select the sound mode. link
MOVIE button
MUSIC button
GAME button
PURE button
SLEEP button
This sets the sleep timer. link
RC SETUP button
MACRO buttons (A – D)
These are used to turn on a TV or player, and consecutive series of operations can be registered to each button. link
