Remote control unit

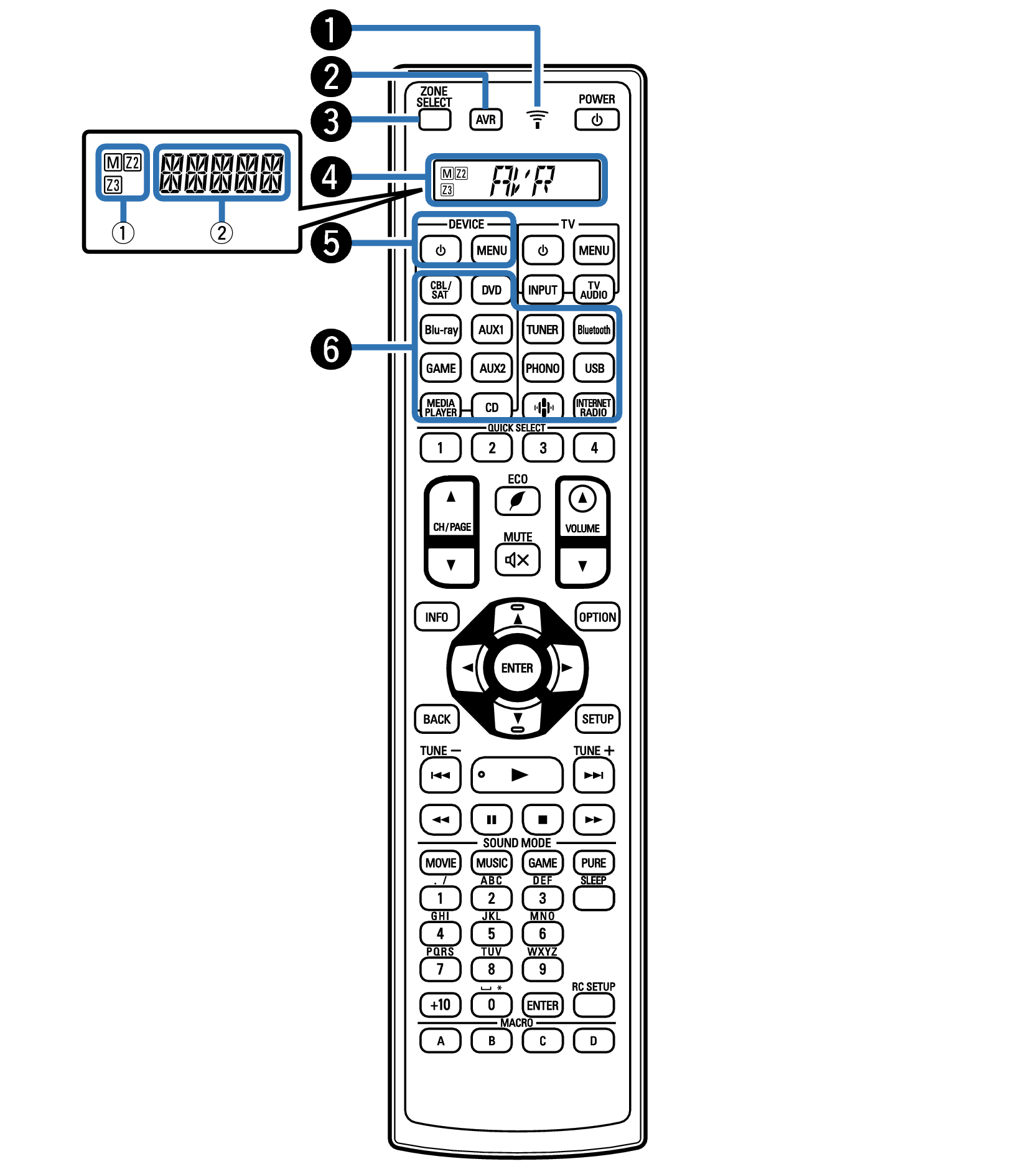

Name RC1221-1

LED_RC indicator

This is lit when signals are sent from the remote control unit.

AVR operation button

When preset codes are registered to the remote control unit, press this button and then operate the menu on the unit.

Zone select button (ZONE SELECT)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. link, link

Display

Zone select indicators
Information indicator

This displays “AVR” when operating this unit.

This displays the input source name when operating an external device.

This displays “TV” when operating TV.

This displays details about the setting on the remote control unit.

Device operation buttons (DEVICE  Power Button  / DEVICE MENU)

These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link

Input source select buttons

These select the input source.

Selecting the input sourcelink

Playback in ZONE2/ZONE3link

Name RC1221-2

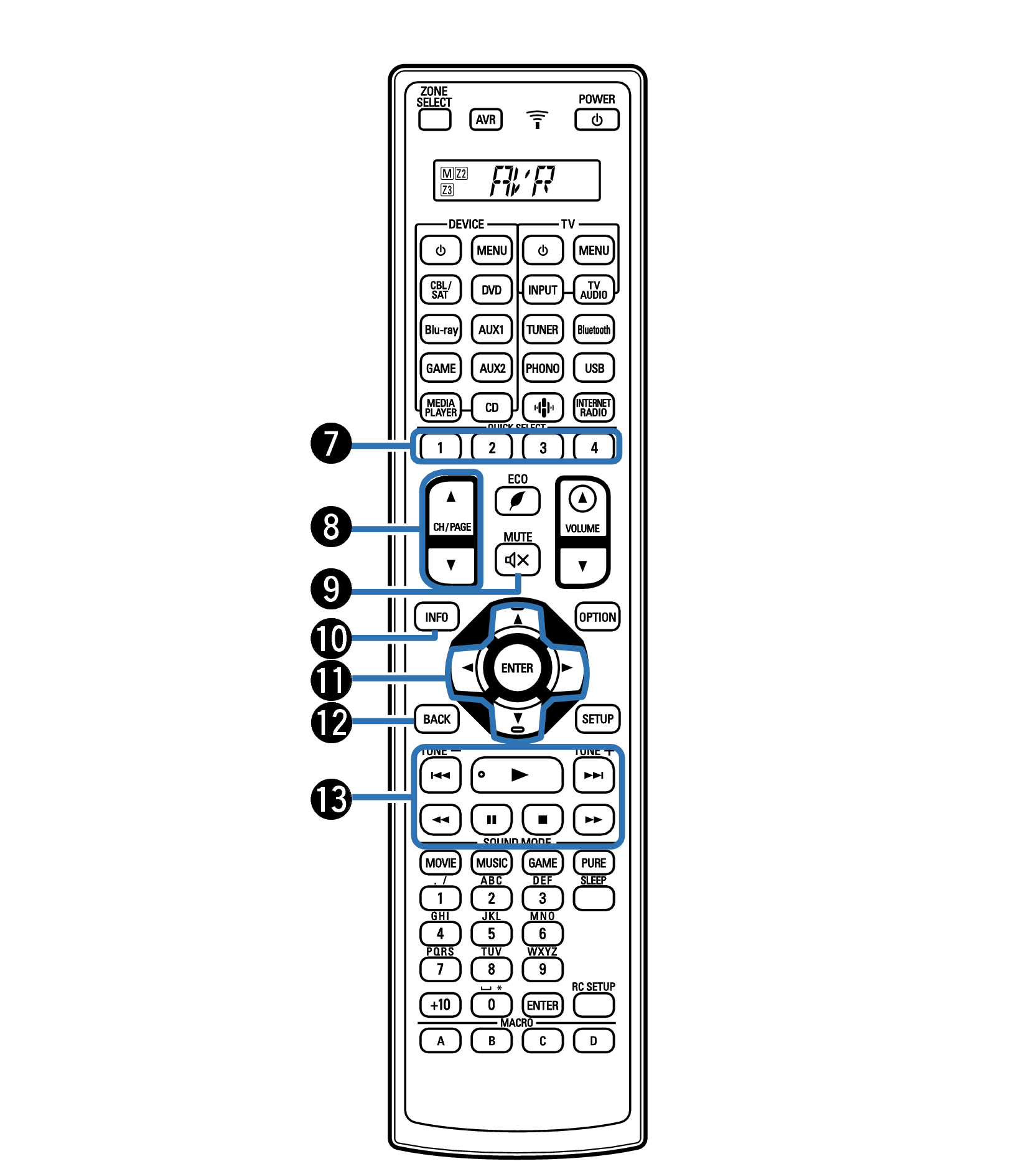

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link

MUTE button ( Silent )

This mutes the output audio.

Turning off the sound temporarily (Muting)link

Turning off the sound temporarily (Muting) (ZONE2/ZONE3)link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items.

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

Name RC1221-3

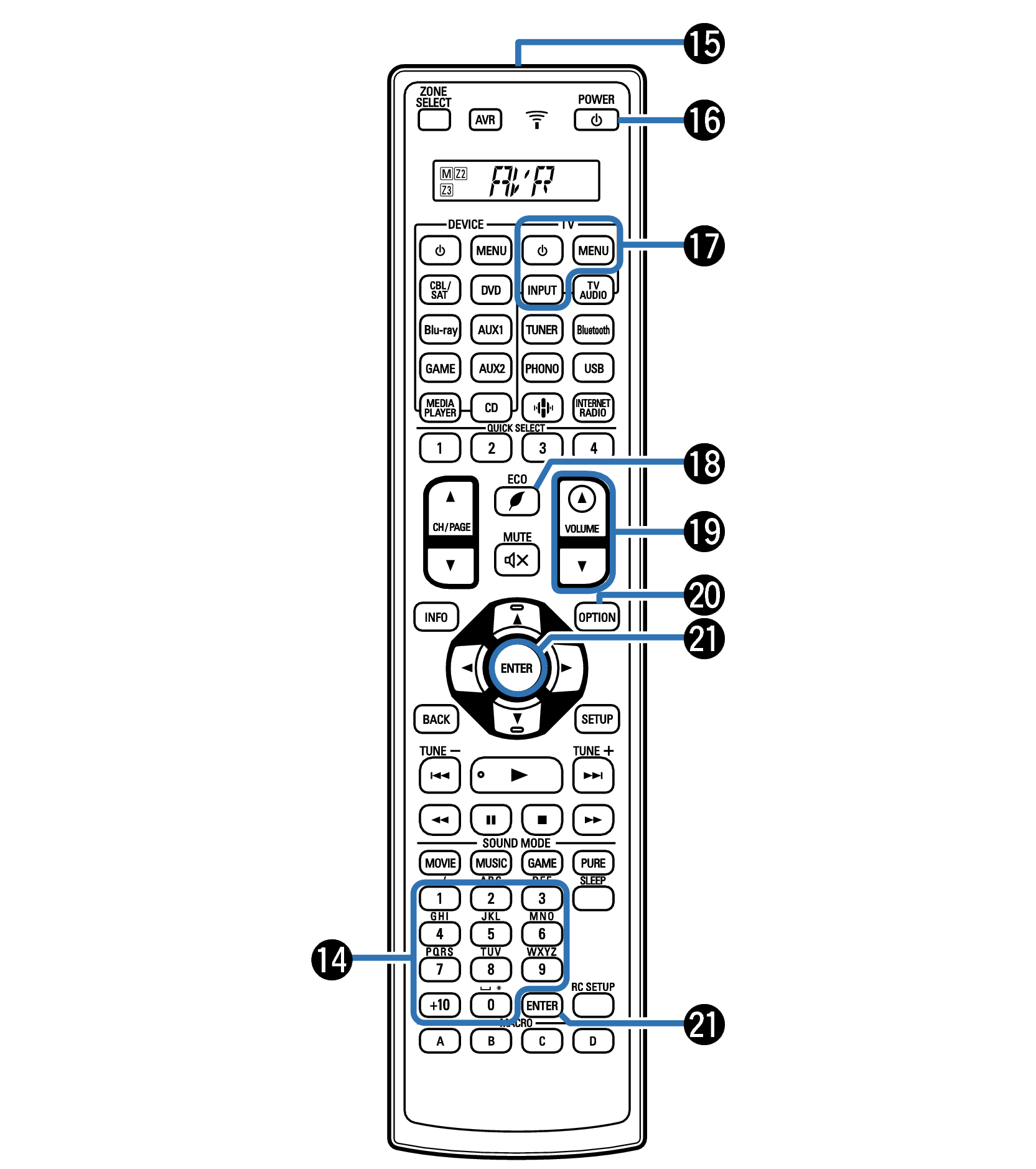

Number / Character buttons

These enter letters or numbers into the unit.

Listening to FM/AM broadcastslink

Operating external devices with the remote control unitlink

Remote control signal transmitter

This transmits signals from the remote control unit. link

POWER button ( Power Button )

This turns the power on/off.

Turning the power onlink

Playback in ZONE2/ZONE3link

TV operation buttons (TV  Power Button  / TV MENU / TV INPUT)

These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level.

Adjusting the volumelink

Adjusting the volume (ZONE2/ZONE3)link

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

Name RC1221-4

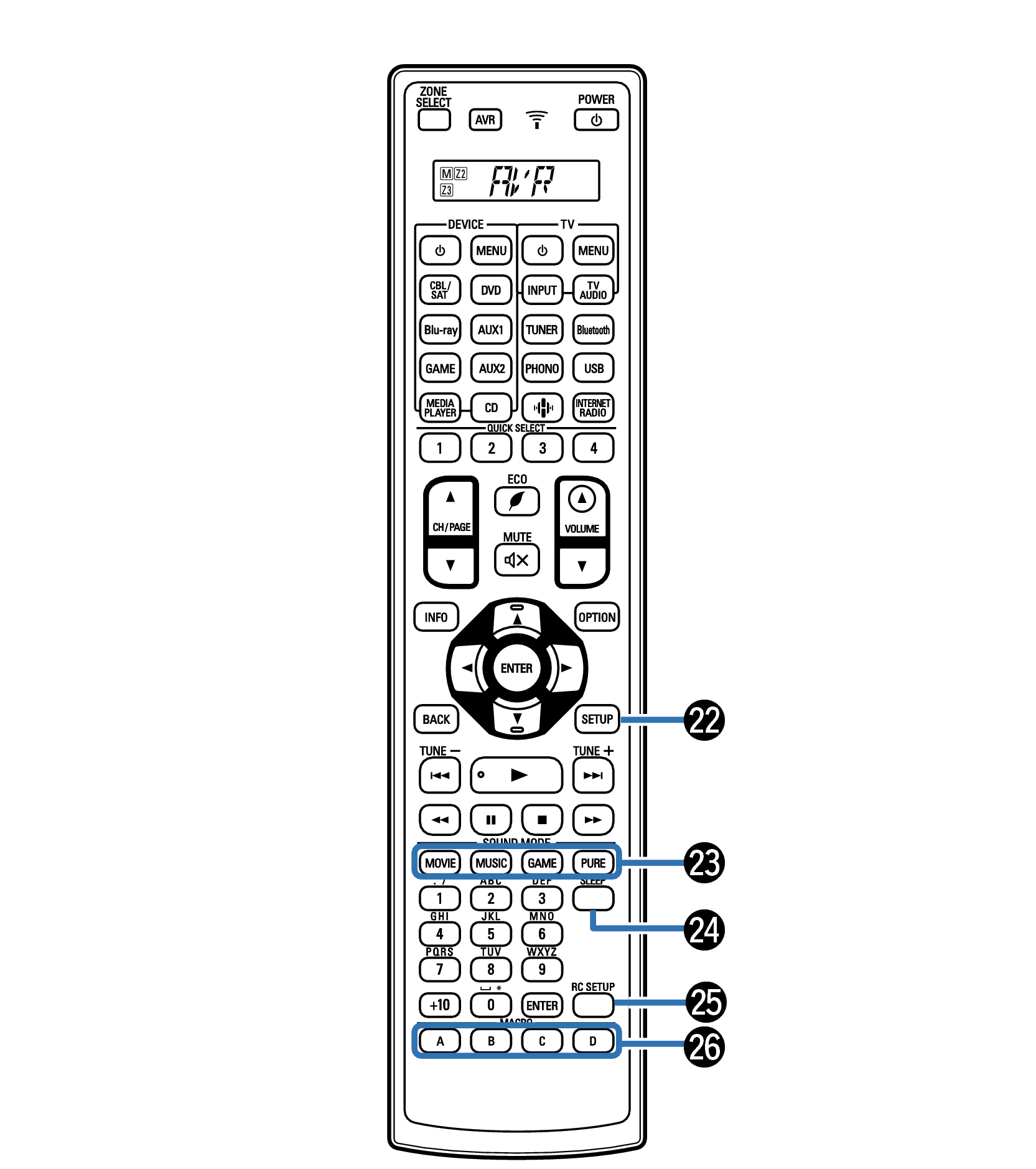

SETUP button

This displays the menu on the TV screen. link

SOUND MODE buttons

These select the sound mode. link

SLEEP button

This sets the sleep timer. link

RC SETUP button

This used to set up the remote control unit. link – link

MACRO buttons (A – D)

These are used to turn on a TV or player, and consecutive series of operations can be registered to each button. link
