Remote control unit
The remote control provided with this unit can control a Denon amplifier and network audio player.

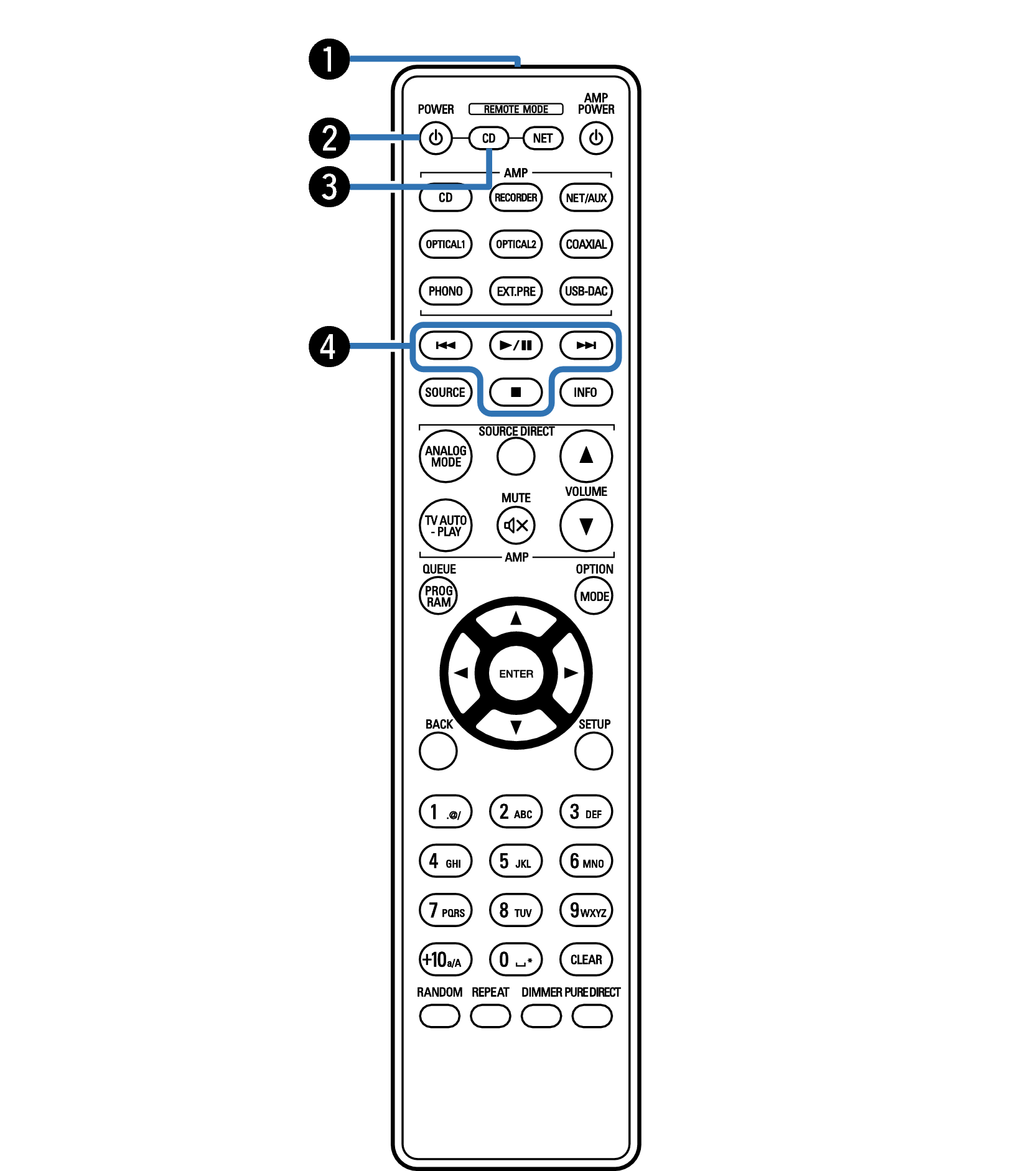

Operating this unit
Remote control signal transmitter
This transmits signals from the remote control unit. link
Power (POWER
) button
This turns the power on/off (standby). link
Remote mode select button (REMOTE MODE CD)
This switches the remote control operating mode to CD.
System buttons
These perform playback related operations.
Play/Pause button (
/
)
Plays the track/Pauses the track.
Forward-skip button (
)
Press this button during playback to play the next track.
(Press and hold) Fast-forward the track.
Reverse-skip button (
)
Press this button during playback to restart the current track or play the previous track.
(Press and hold) Fast-reverse the track.
Stop button (
)
Press this button to stop during playback.
PROGRAM button
This sets program playback. link
Cursor buttons (
)
These select items.
Number buttons (0 – 9, +10)
These enter numbers into the unit.
RANDOM button
Switches the random playback.
REPEAT button
Switches to the repeat playback.

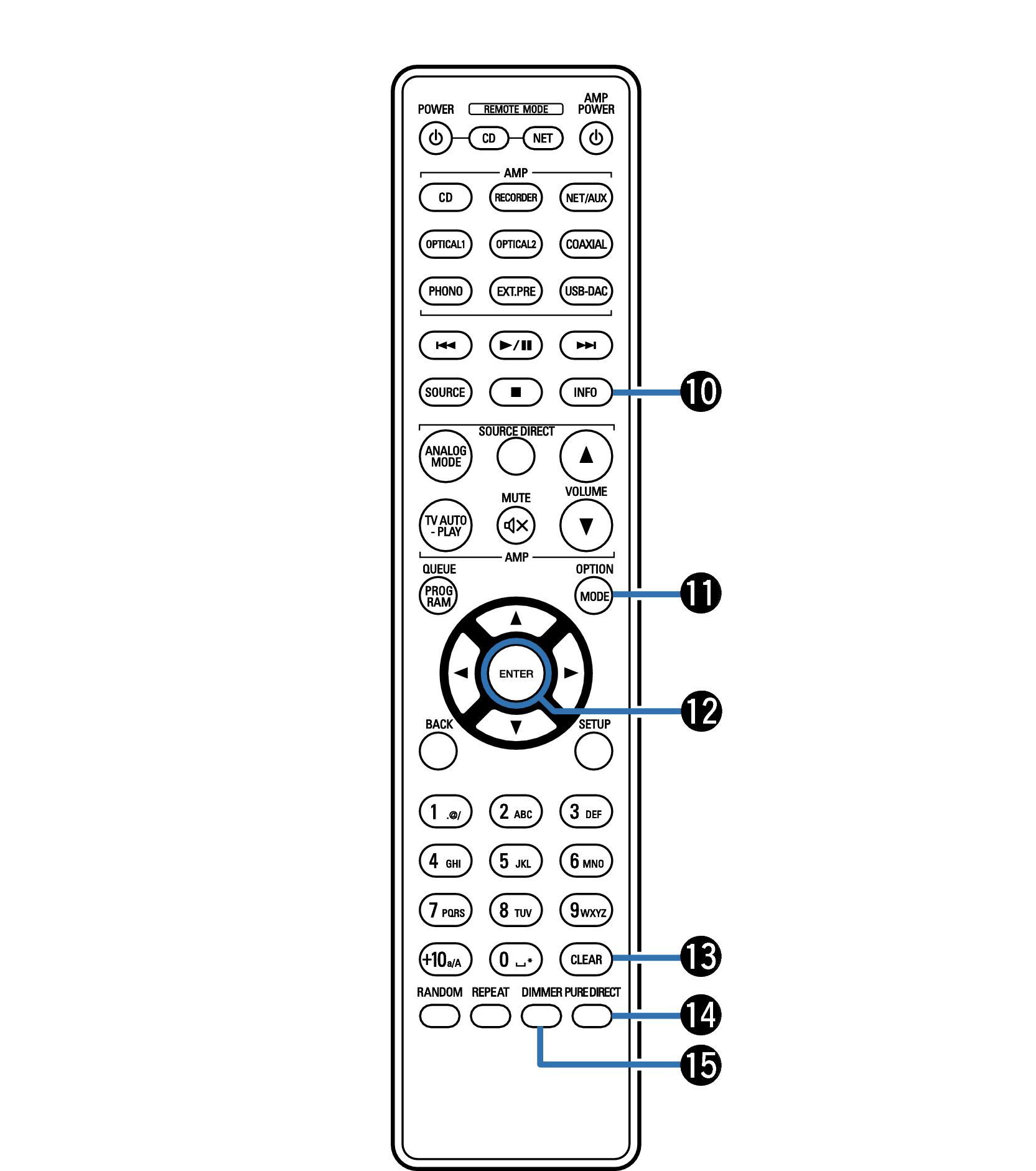

Information button (INFO)
This switches the track information shown in the display during playback.
MODE button
This switches the playback mode.link
This switches the playback layer of a Super Audio CD.
ENTER button
This determines the selection.
CLEAR button
This clears the program registration. link
PURE DIRECT button
This switches the pure direct mode. link
DIMMER button
This switches the brightness of the display. link
You cannot use the SOURCE, BACK and SETUP buttons for the operation of this unit.

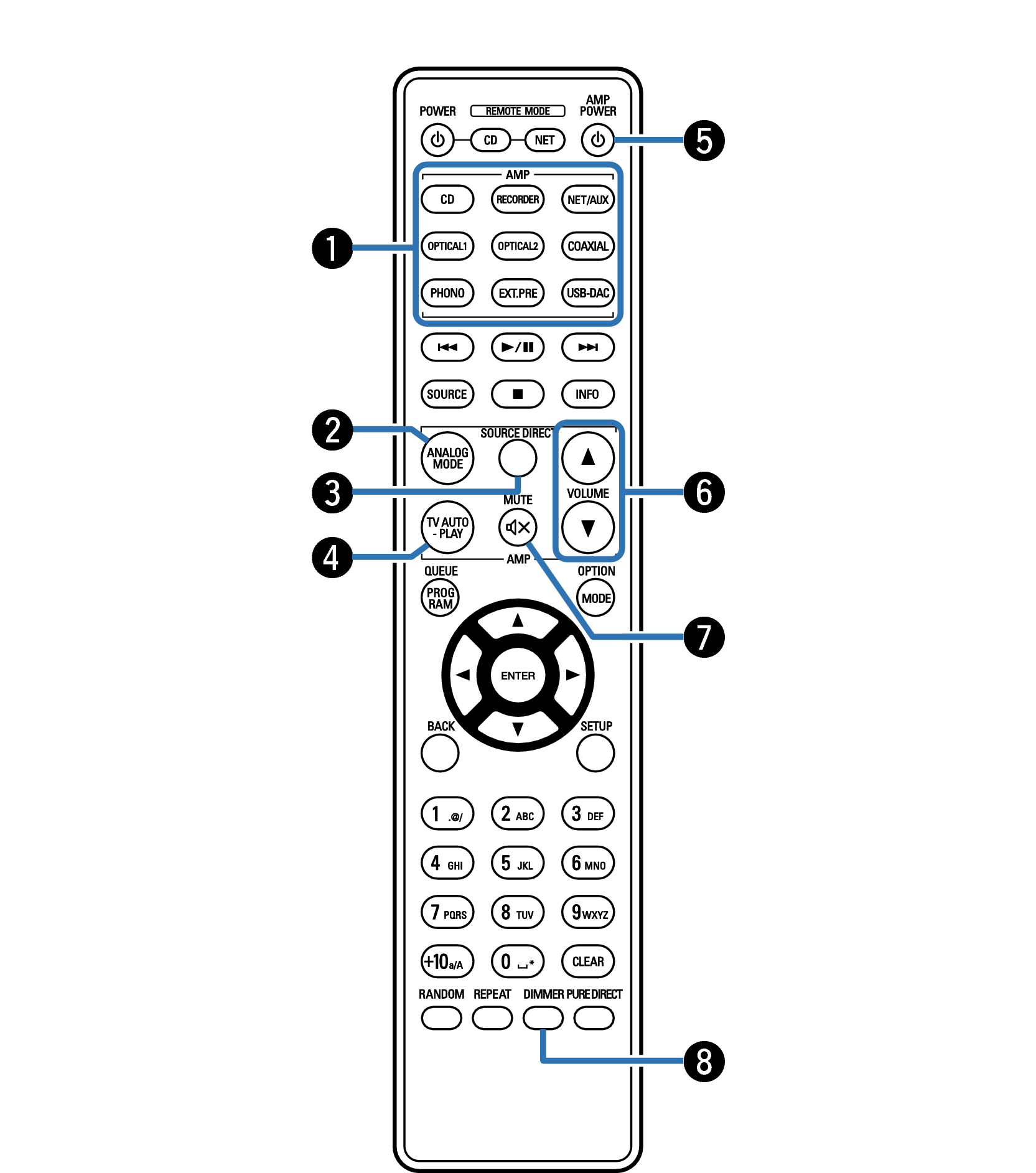

Amplifier operations
A Denon amplifier can be operated.
Input source select buttons
ANALOG MODE button
SOURCE DIRECT button
TV AUTO-PLAY button
Power (AMP POWER ) button
VOLUME buttons (
)
MUTE button (
)
DIMMER button
NOTE
The remote control may not operate some products.

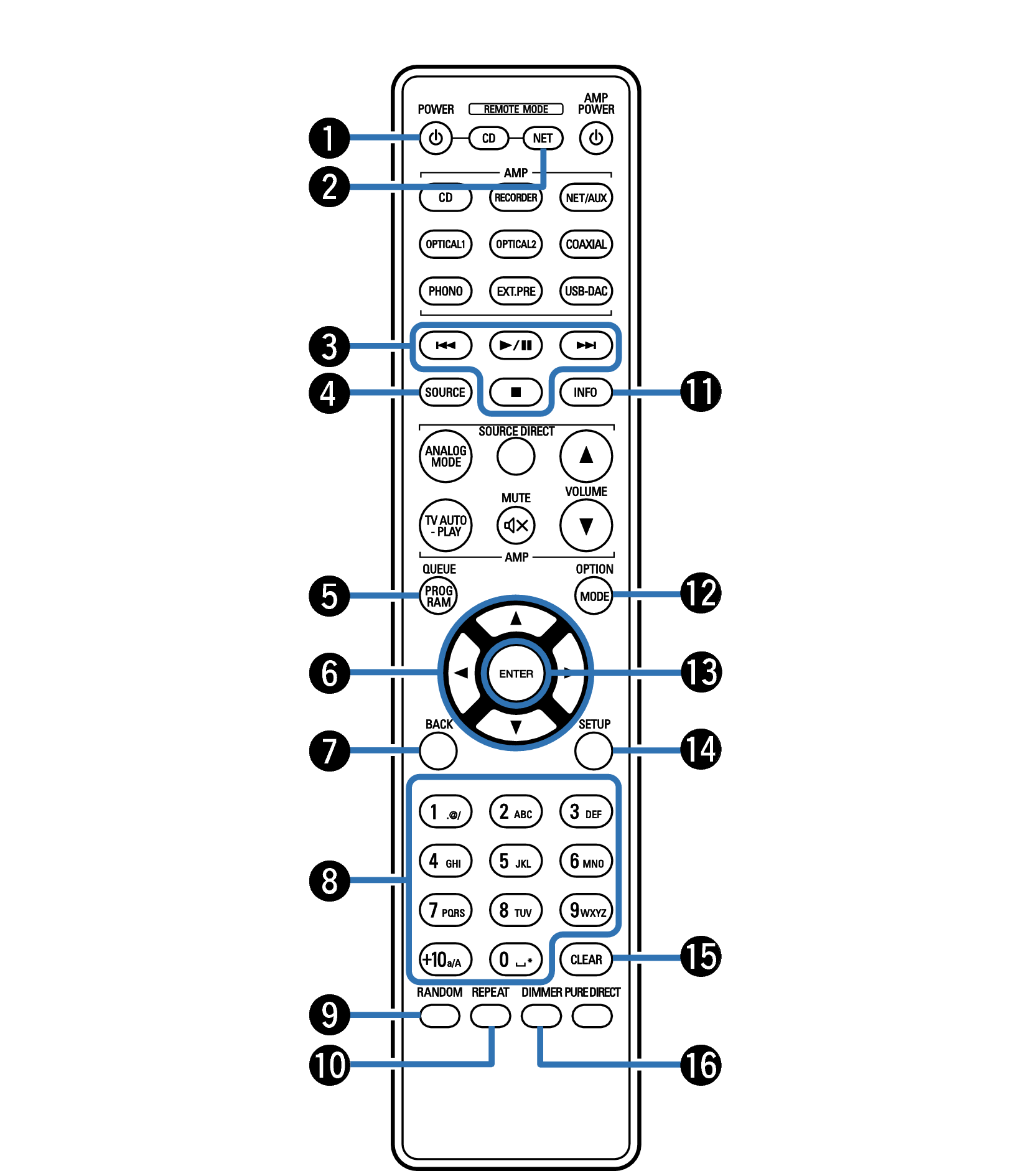

Network audio player operations
To operate a Denon network audio player, press the REMOTE MODE NET button to switch the remote control to the network audio player operation mode.
Power (POWER ) button
Remote mode select button (REMOTE MODE NET)
System buttons
SOURCE button
QUEUE button
Cursor buttons ( )
BACK button
Number/letter buttons (0 – 9, +10)
RANDOM button
REPEAT button
Information button (INFO)
OPTION (MODE) button
ENTER button
SETUP button
CLEAR button
DIMMER button
The amp can be operated with the amp operation buttons even when the remote control mode is “NET”.
When using it, also refer to the operating instructions of the other devices.
The remote control may not operate some products.
