Remote control unit

Operating this unit

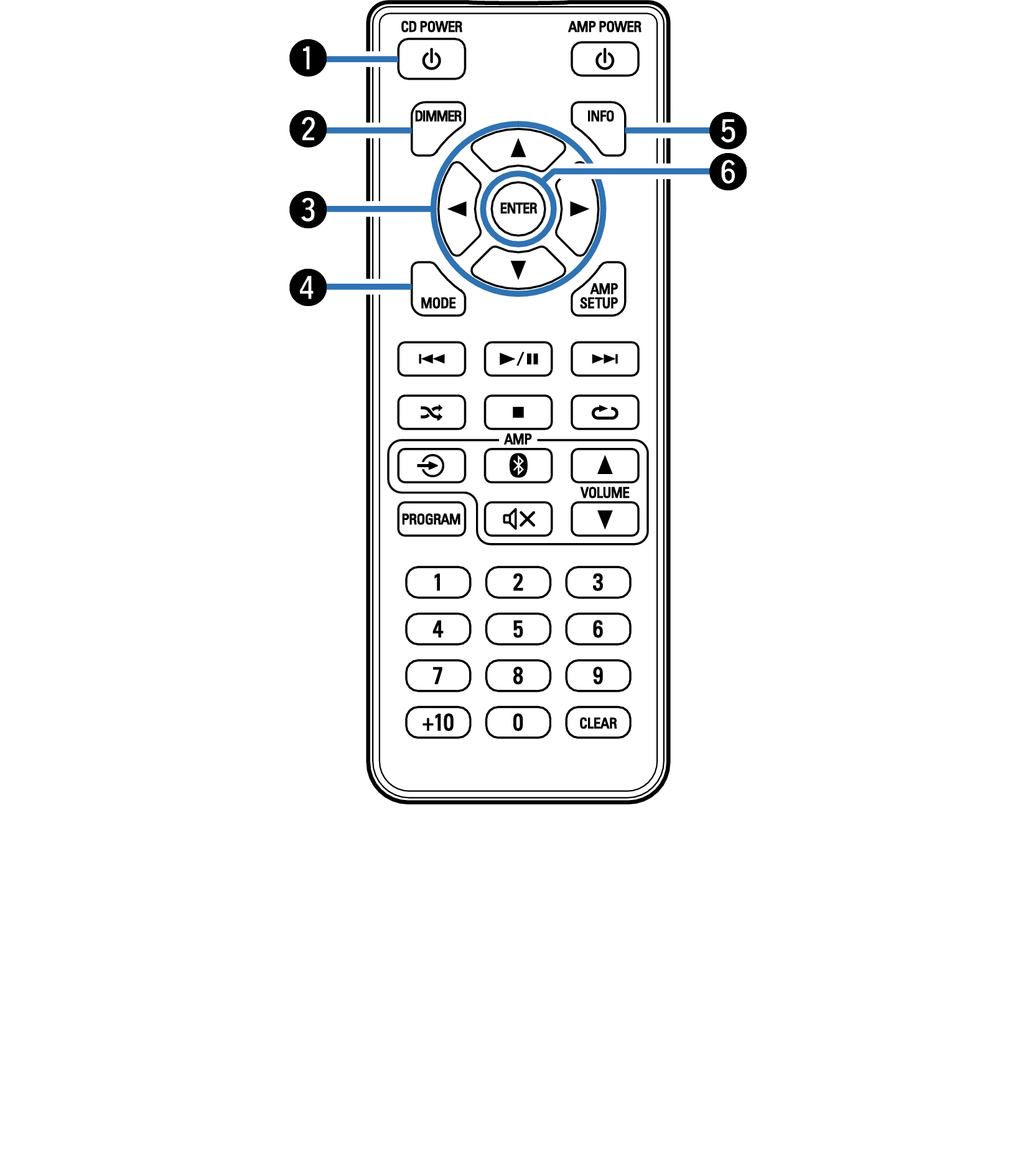

Name RC1205 01

Power operation button (CD POWER Power Button )

This turns the power on/to standby.

DIMMER button

Adjust the display brightness of this unit. link

Cursor buttons ( Kurosankaku Sankaku_Reverse Triangle Left   Triangle Right )

These select folders or files on a data CD.

MODE button

This switches the playback mode. link

INFO button

This switches the track information shown in the display during playback. This switches the playback time display.

ENTER button

This determines the selection.

The DIMMER button also controls the Denon's Integrated Amplifier PMA-50, so the PMA-50 can be operated simultaneously with the DCD-50. When the two units have different settings, press and hold in the button for lease 2 seconds to reset them both to the default setting, then make the desired setting.

The display brightness is set to “Normal” by default.

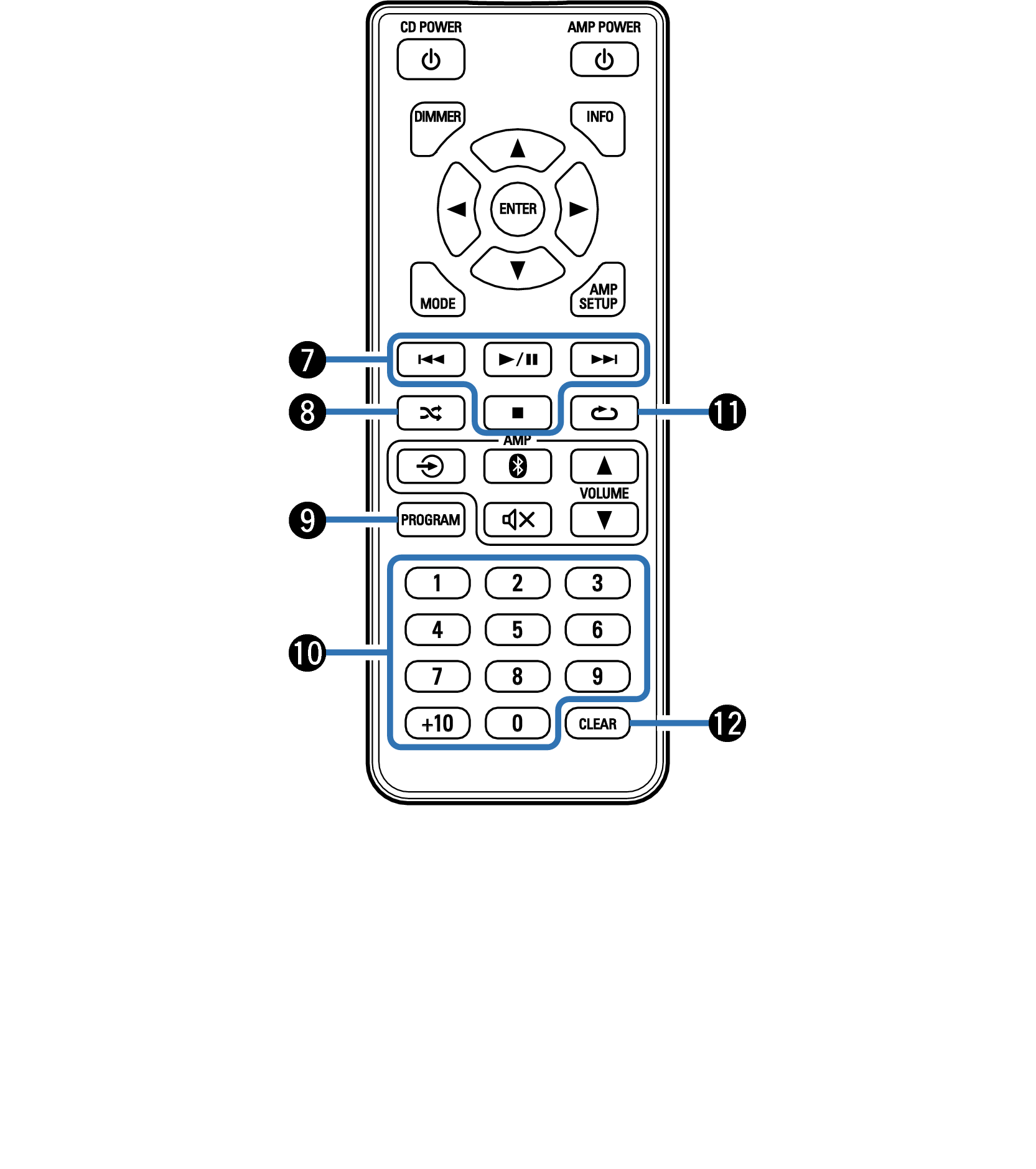

Name RC1205 02

System buttons

These perform playback related operations.

Skip buttons ( Skip-Left / Skip-Right )

Play/pause button ( Triangle Right / Pause )

Stop button ( Square Black )

Random button ( Random )

Switches the random playback.

PROGRAM button

This sets program playback. link

Number buttons (0~9, +10)

These enter numbers into the unit.

Repeat button ( Repeat )

Switches the repeat playback.

CLEAR button

This clears the program registration.

Amplifier operations

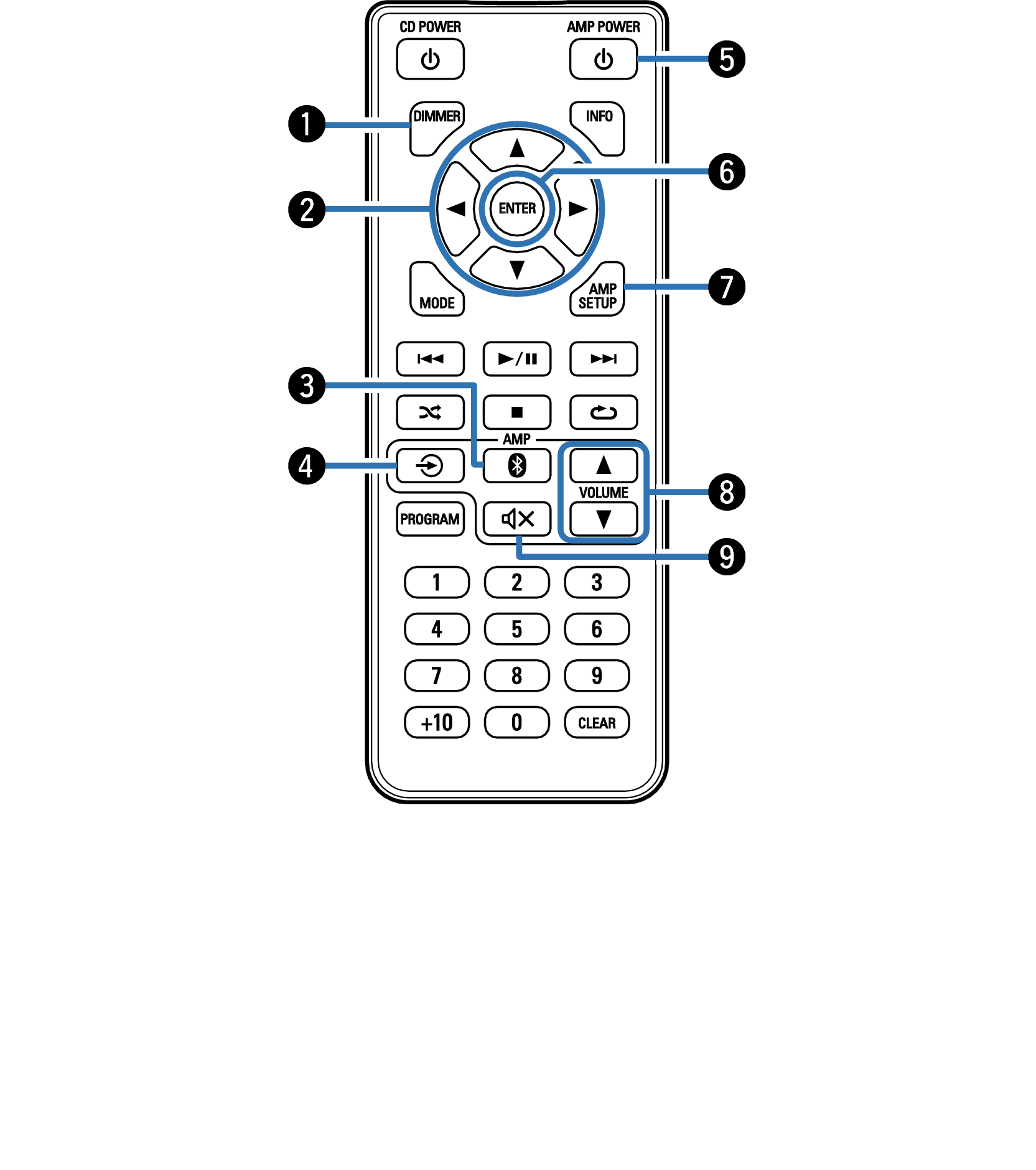

Name RC1205 03

DIMMER button

Adjust the display brightness.

Cursor buttons ( Kurosankaku Sankaku_Reverse Triangle Left   Triangle Right )

These select menu items.

Bluetooth button ( Button Bluetooth )

This switches the input to Bluetooth of PMA-50. This is also pressed during the pairing operation.

Input source switching button ( Button Input Circle )

This switches input sources of PMA-50.

AMP POWER button ( Power Button )

This turns the power of PMA-50 on/to standby.

ENTER button

This determines the selection.

AMP SETUP button

The setting menu is displayed on the display of PMA-50.

VOLUME buttons ( Kurosankaku Sankaku_Reverse )

These adjusts the volume level.

Mute button ( Silent )

This mutes the output audio of PMA-50.
