Sound bar

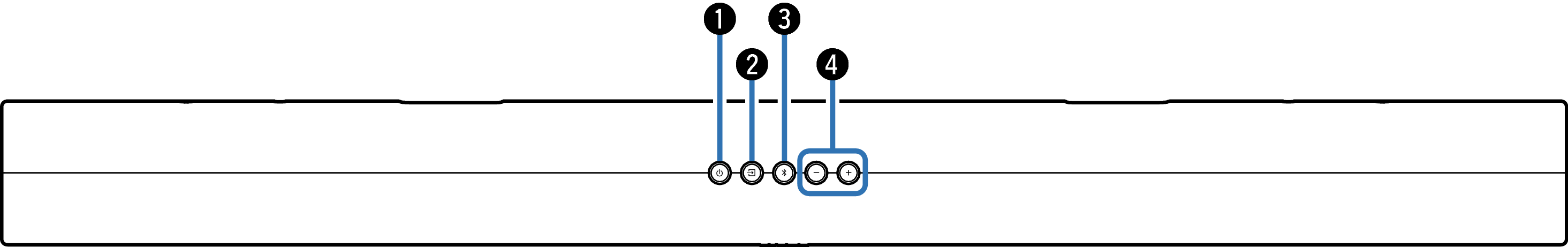

Top panel
Power operation button (
)
Turns the sound bar power on/off (standby). link
Links to sound bar power and turns the subwoofer power on/off (standby).
Input source button (
)
This selects the input source. link
Switches the input source each time the button is pressed.
Bluetooth button (
)
Switches the input source to “Bluetooth”. link
Used to pair with Bluetooth devices. link
Volume buttons (+, –)
These adjusts the volume level. link

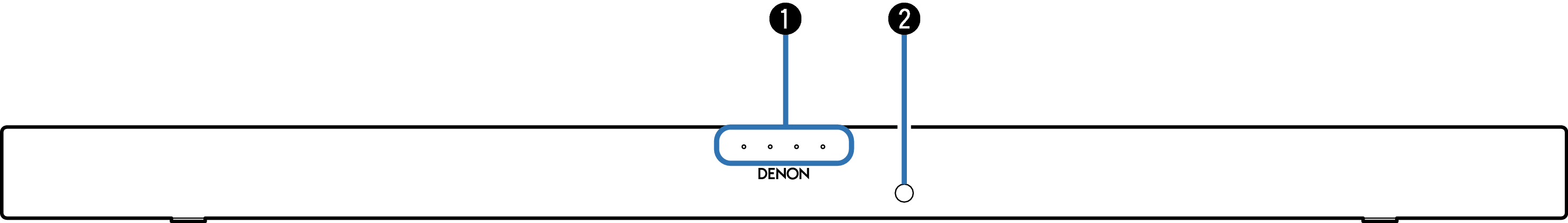

Front panel
Status LED
Displays the status of input source / input signal / listening mode, etc. link
Remote control sensor
This receives signals from the remote control unit. link
Bottom panel
USB port
Service terminal. Not used in normal operation.

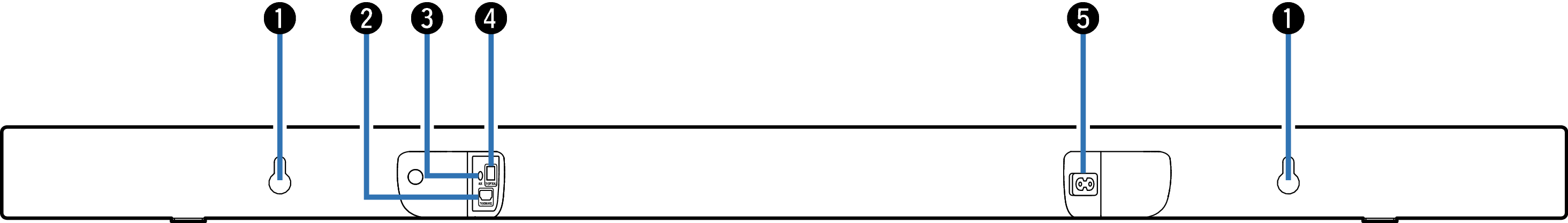

Rear panel
Wall hook hole
Used to mount the sound bar on a wall. link
HDMI connector (TV (ARC))
Use the included HDMI cable to connect an ARC function-compatible TV. link
AUX audio input connector
Use a commercially available 3.5 mm stereo audio cable to connect an audio device. link
Optical digital input connector (TV OPTICAL)
Use the included optical digital cable to a TV with an optical digital terminal. link
AC inlet
Used to connect the power cord. link
