Remote control unit

This section mainly explains remote control operations.

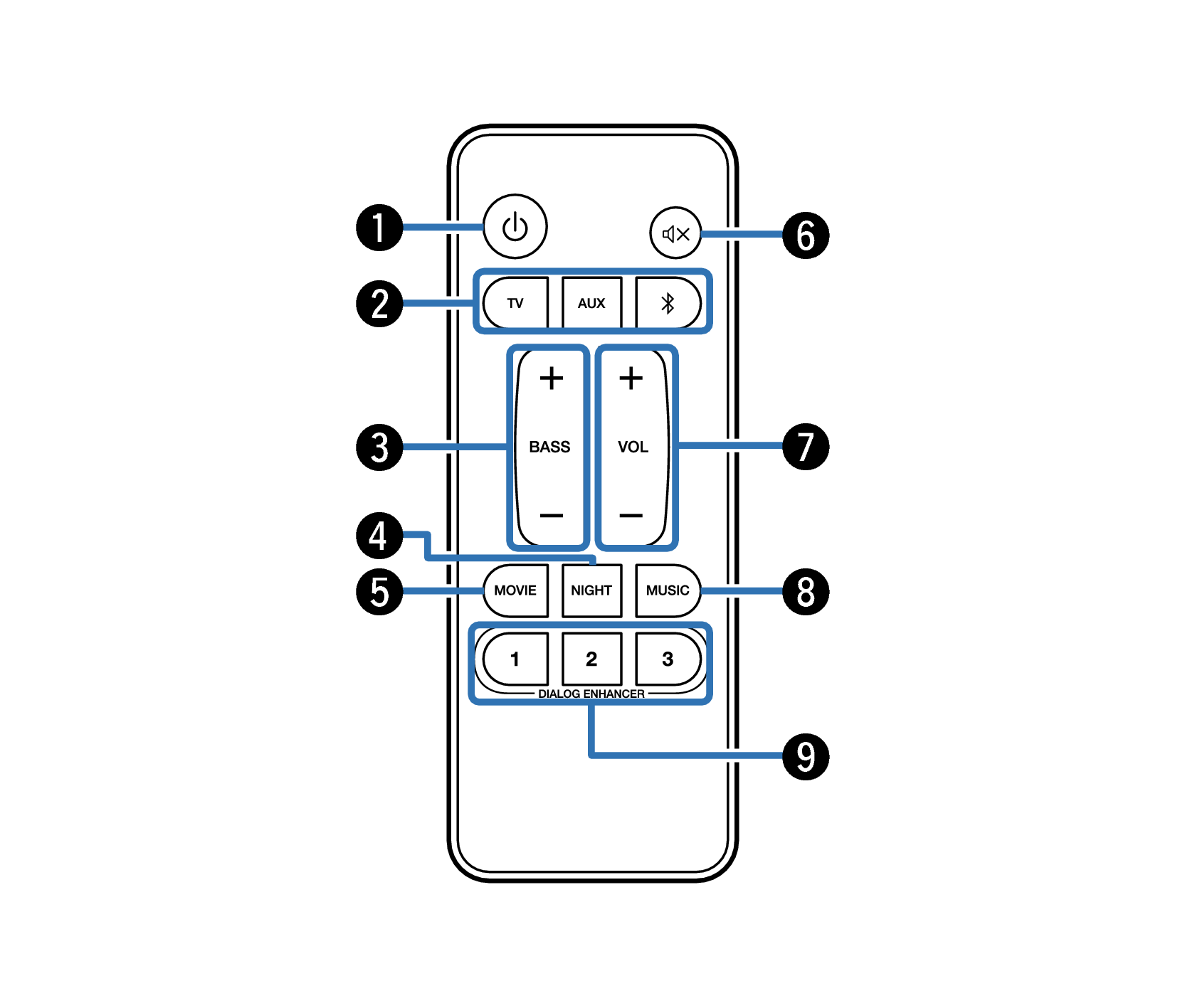

Name RC1230

Power button ( Icon Power )

Turns the sound bar power on/off. link

Links to sound bar power and turns the subwoofer power on/off.

Input source buttons (TV, AUX, Icon Bluetooth )

This selects the input source. link

Button to adjust subwoofer (BASS +, -)

Adjusts the volume level for the subwoofer. link

Night mode button (NIGHT)

Compresses the dynamic range (difference between loud and soft sounds) to make audio easier to hear at low volumes. link

Movie mode button (MOVIE)

Enjoy movie theater-like surround sound. link

Mute button ( Icon Mute )

This mutes the output audio. Press again to unmute. link

Volume buttons (VOL +, –)

These adjusts the volume level. link

Music mode button (MUSIC)

Enjoy the full presence of a wide, encompassing acoustic field. link

Dialog enhancer buttons (DIALOG ENHANCER 1 - 3)

Adjust the volume of dialog in movies, vocals in music, etc. so these can be heard more easily. link

Can be set to 3 levels. Set this to the desired value.
