Status LED table

Status LEDs change depending on the input source, input signal, etc.

LED indication

Status

LED Bar1

When power is off/standby

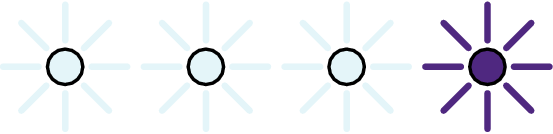

LED Bar2

During startup

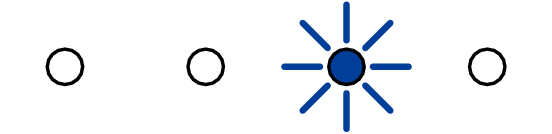

LED Bar3

Input source: Bluetooth

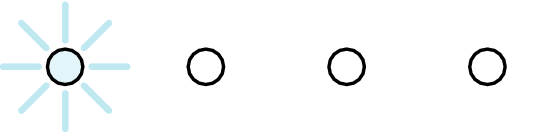

LED Bar4

Input source: HDMI (ARC)

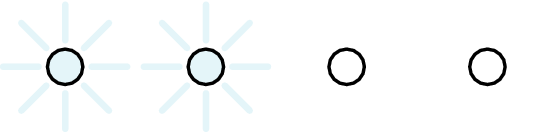

LED Bar5

Input source: OPTICAL

LED Bar6

Input source: ANALOG

LED indication

Status

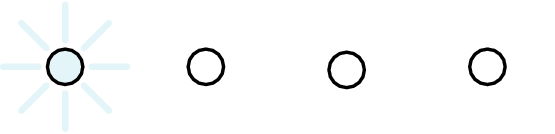

LED Bar7

Input source: HDMI (ARC)
Audio signal: PCM

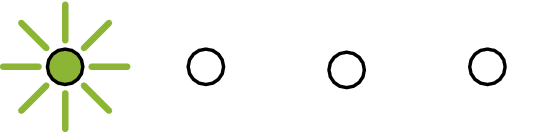

LED Bar8

Input source: HDMI (ARC)
Audio signal: Dolby

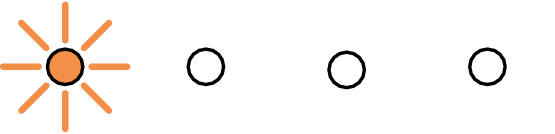

LED Bar9

Input source: HDMI (ARC)
Audio signal: DTS

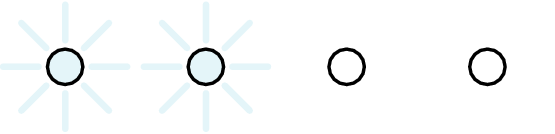

LED Bar10

Input source: OPTICAL
Audio signal: PCM

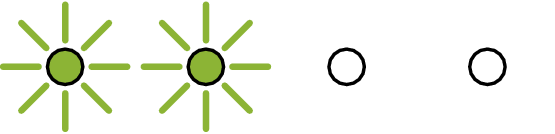

LED Bar11

Input source: OPTICAL
Audio signal: Dolby

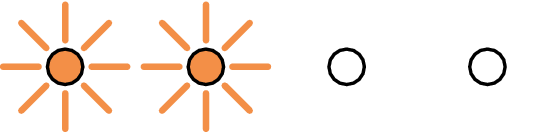

LED Bar12

Input source: OPTICAL
Audio signal: DTS

Audio signal is not displayed when the input source is “Bluetooth”.
