Front/Top panel

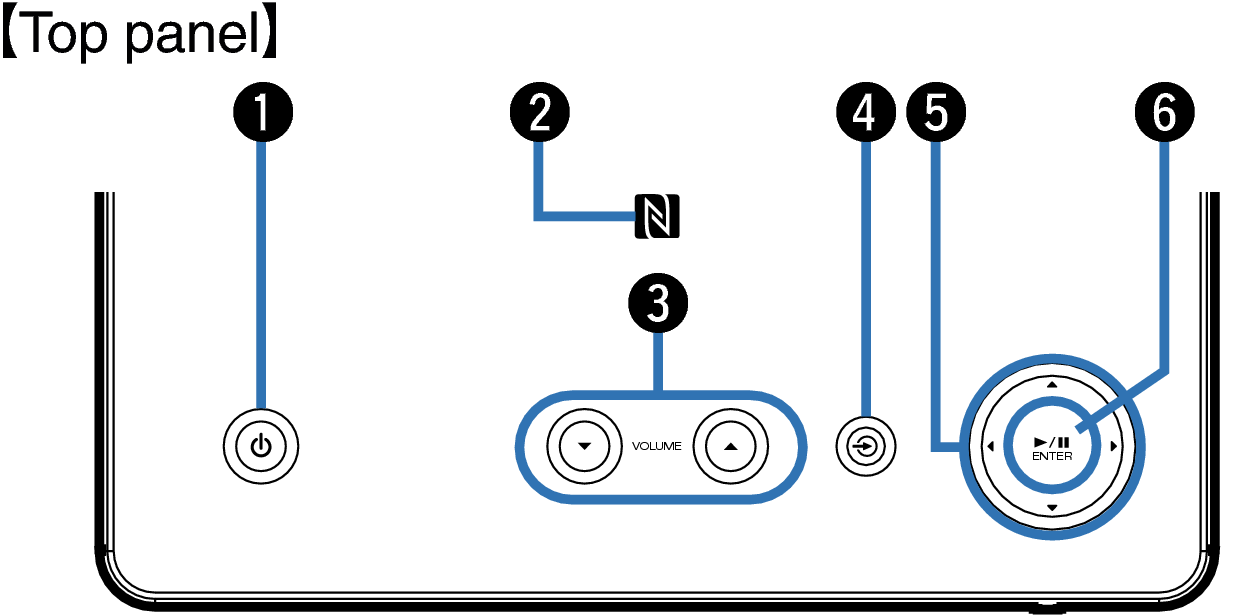

Power operation button ( )
Turns power to this unit on and off (standby).
Power indicator
The power indicator changes as shown below according to the status of the unit.
Power on : White
Normal standby : Off
When “Network Control” is set to “On” : Red link
iPod charge standby : Red link
Alarm standby : Orange link
Display off: White link
N mark ( )
Touch this mark with a Bluetooth device that includes the NFC function when pairing (registering) with it.link
Volume up/down buttons (VOLUME )
Adjusts the volume.
Input source select button ( )
Selects the input source.
Cursor buttons ( )
These select items.
Playback/Pause/ENTER button ( / /ENTER)
Plays back and pauses tracks, and enters the selected content.

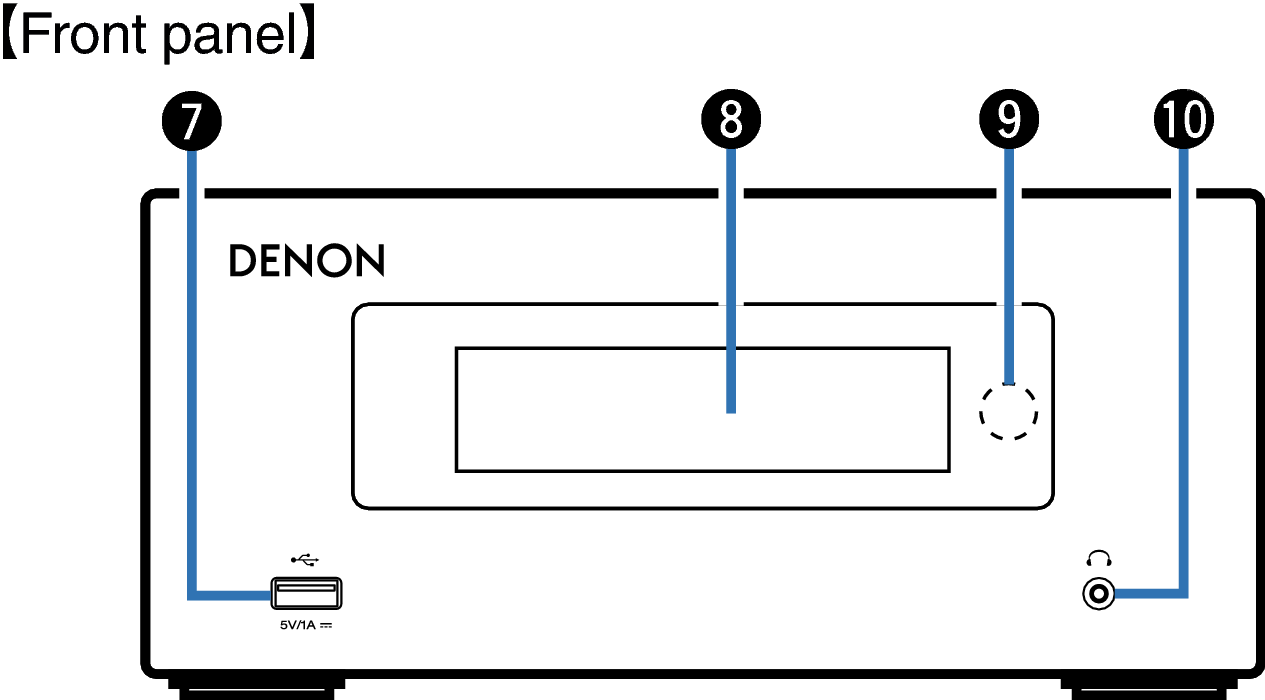

USB port
Used to connect iPod or USB memory devices. link
Display
Various information is displayed here.
Remote control sensor
This receives signals from the remote control unit. link
Headphones jack ( )
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers.
To prevent hearing loss, do not raise the volume level excessively when using headphones.
