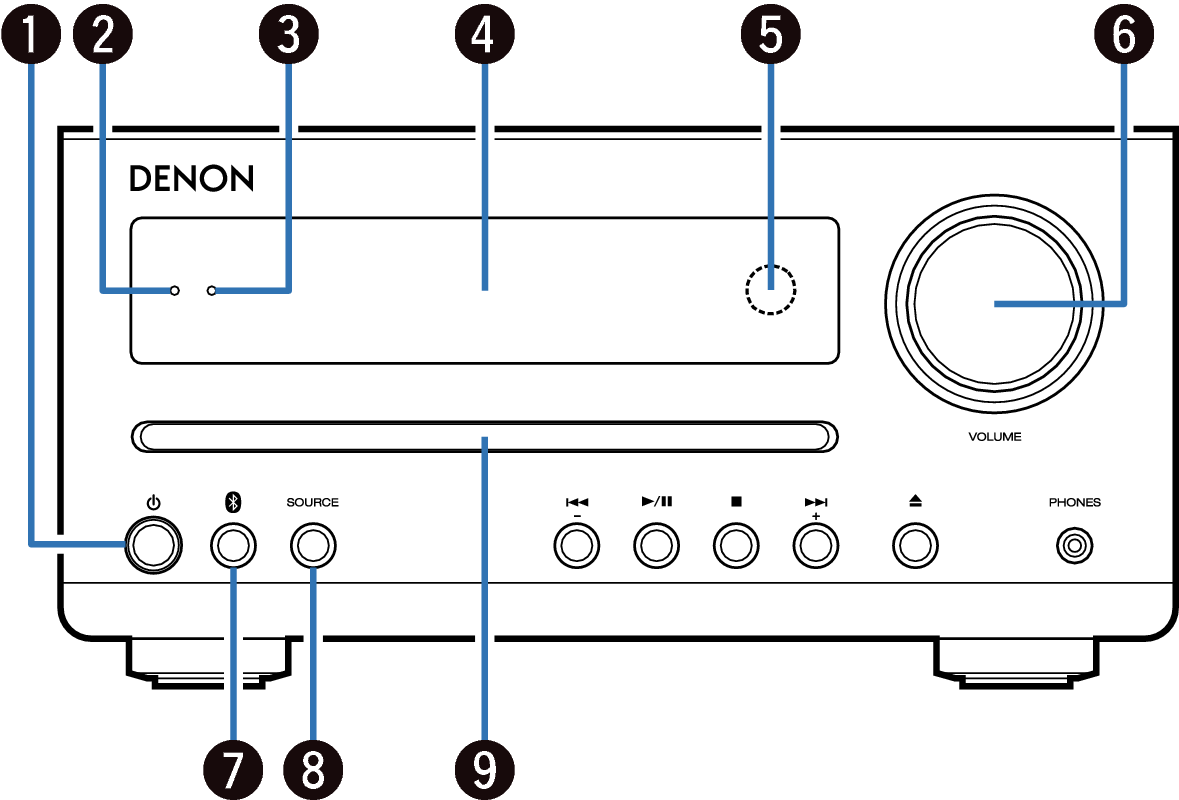

Front panel
Power operation button (
)
Turns power to this unit on and off (standby).
link
When “CLK MODE” is turned on, this button switches between normal mode and Clock mode. link
Power indicator
This is lit as follows according to the power status:
Power on : Green
Normal standby : Off
Alarm standby : Orange link
Bluetooth indicator
This lamp is lit or blinks depending on the Bluetooth connection status.
Display
This displays various pieces of information.
Remote control sensor
This receives signals from the remote control unit. link
VOLUME knob
Adjusts the volume. link
Bluetooth button (
)
This switches the input to Bluetooth. This is also pressed during the pairing operation. link
SOURCE button
These select the input source. link
Disc slot
Used to insert a disc. link

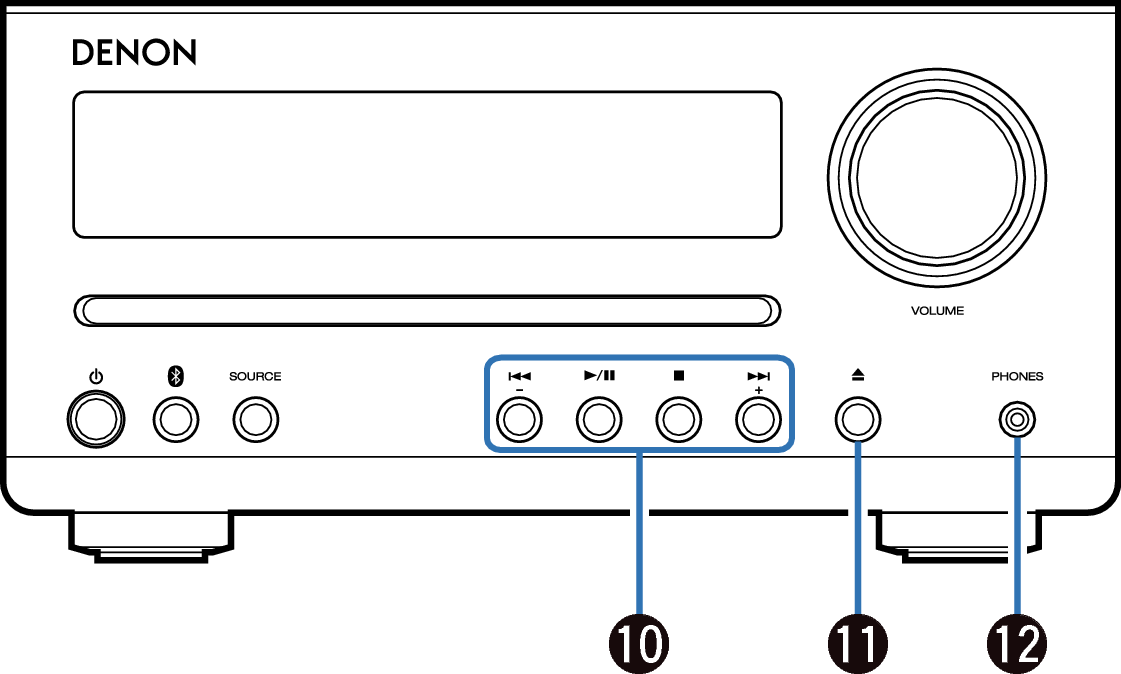

System buttons
These perform playback related operations.
Preset/Tuning buttons (–, +)
These select FM broadcast and AM broadcast. link
Disc eject button (
)
Ejects the disc.
Headphones jack (PHONES)
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
