Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + and – polarities on the speakers being connected to this unit, and be sure to connect the channels and polarities correctly.
Peel off about 10 mm of sheathing from the tip of the speaker cable, then twist the core wire tightly.

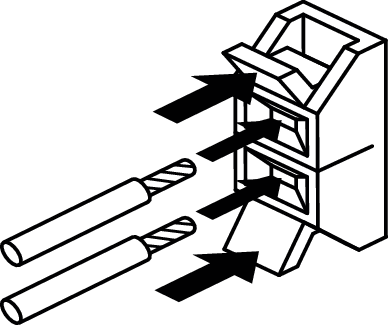

Push the lever of the speaker terminal and insert the speaker cable into the cable insertion slot.
Release your finger from the speaker terminal lever to fix the speaker cable.
