HEOS 5

Wireless LAN

Network type:

Conforming to IEEE 802.11a/b/g/n/ac

Used frequency range:

2.4 GHz, 5 GHz

General

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 100 – 240 V, 50/60 Hz

Power consumption:

23 W

Power consumption in Quick Start Mode: *

5.0 W (Wi-Fi)
3.5 W (Ethernet)
5.4 W (USB)
5.1 W (Bluetooth)

Power consumption in Deep Standby Mode: *

0.3 W

Max Analog Input:

1 Vrms

*Cable to AUX IN must be disconnected to enter Quick Start Mode and Deep Standby Mode.

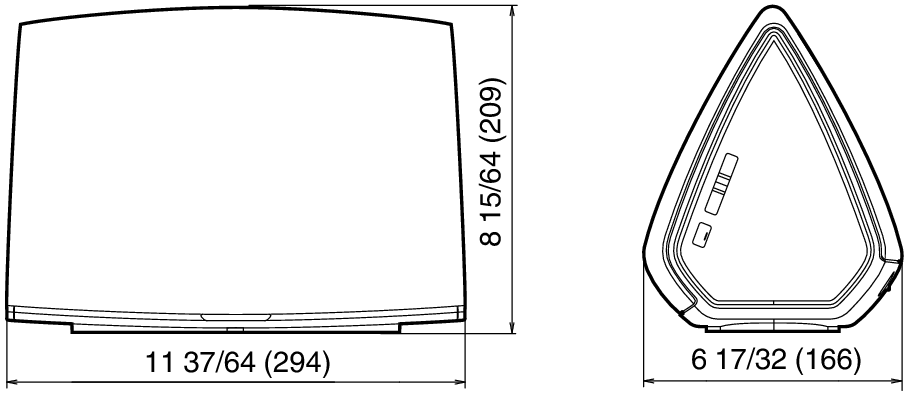

Dimensions

Unit : in. (mm)

Dimensions_HEOS5

Weight : 7 lbs 1 oz (3.2 kg)

For the purpose of improvement, the specifications and design are subject to change without notice.
